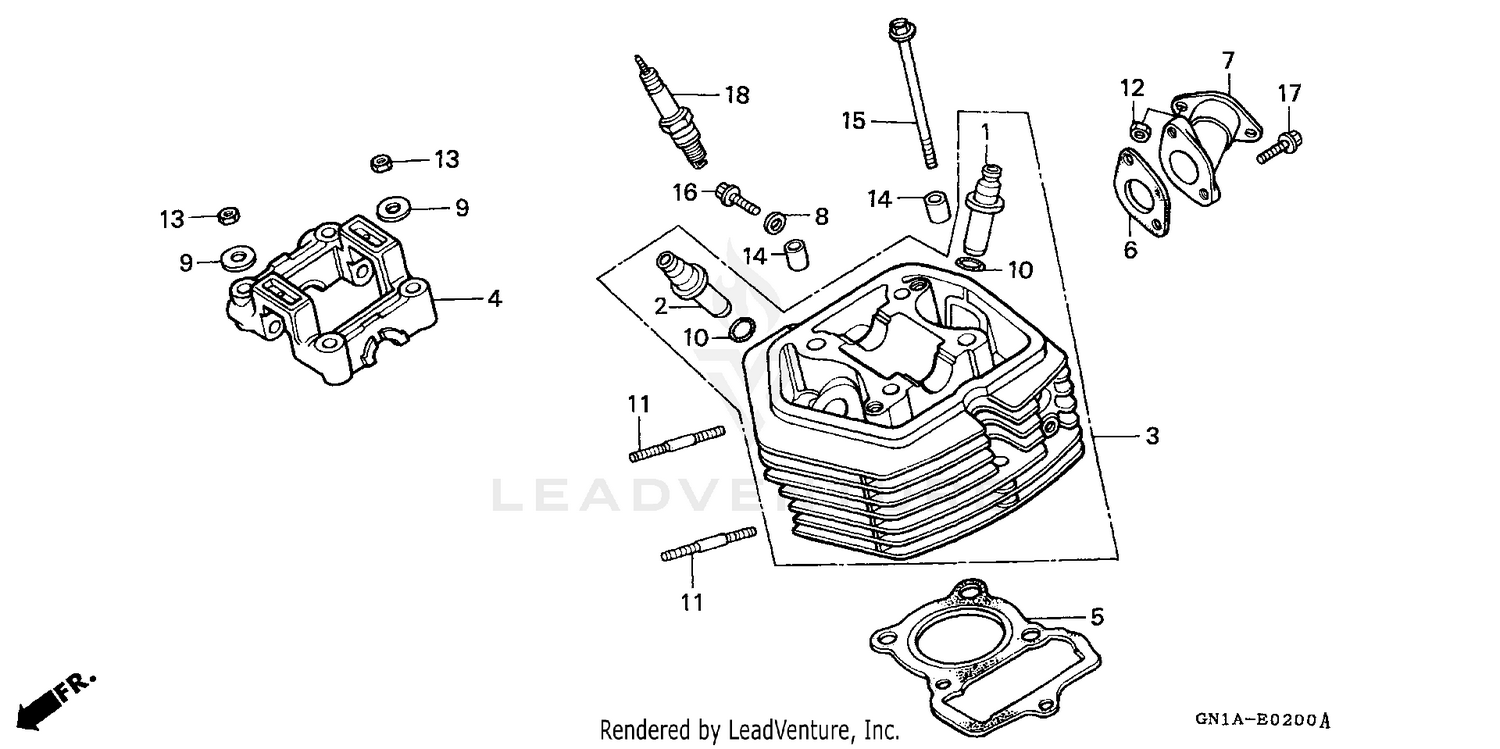

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GUIDE, VALVE
12021-149-300
Superseded by 12021-149-405
|
$14.36 | ||
|
Available to order. Add to View Price |
|||
|
#1
GUIDE, VALVE
12021-149-405
|
$14.36 | ||
|
Unavailable |
|||
|
#2
GUIDE, VALVE
12023-116-300
Superseded by 12023-465-405
|
$22.91 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE
12023-465-405
|
$22.91 | ||
|
Unavailable |
|||
|
#3
CYLINDER HEAD
12200-GN1-A40
|
$281.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER, CAMSHAFT
12210-149-020
|
$139.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, CYLINDER HEAD
12251-GN1-731
|
$27.16 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, IN. PIPE
16229-GN1-A41
Superseded by 16229-GN1-A43
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, IN. PIPE
16229-GN1-A42
Superseded by 16229-GN1-A43
|
$7.42 | ||
|
Unavailable |
|||
|
#7
PIPE, INLET
17110-GN1-000
|
$71.51 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER A (6MM)
90478-700-000
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER (8MM)
90483-028-000
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING (10X1.6)
91301-200-000
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, STUD (6X32)
92700-06032-0B
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#13
NUT, HEX. (8MM)
94002-08200-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, DOWEL (10X16)
94301-10160
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X110)
95701-06110-00
|
$3.88 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X22)
96001-06022-00
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SPARK PLUG (CR6HSA) (NGK)
98056-56718
|
$2.91 | ||
|
Unavailable |
|||
|
#18
SPARK PLUG (U20FSR-U) (DENSO)
98056-56726
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPARK PLUG (CR7HSA) (NGK)
98056-57718
|
$2.91 | ||
|
Unavailable |
|||
|
#18
SPARK PLUG (U22FSR-U) (DENSO)
98056-57726
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPARK PLUG (CR8HSA) (NGK)
98056-58718
|
$2.91 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPARK PLUG (U24FSR-U) (DENSO)
98056-58726
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
