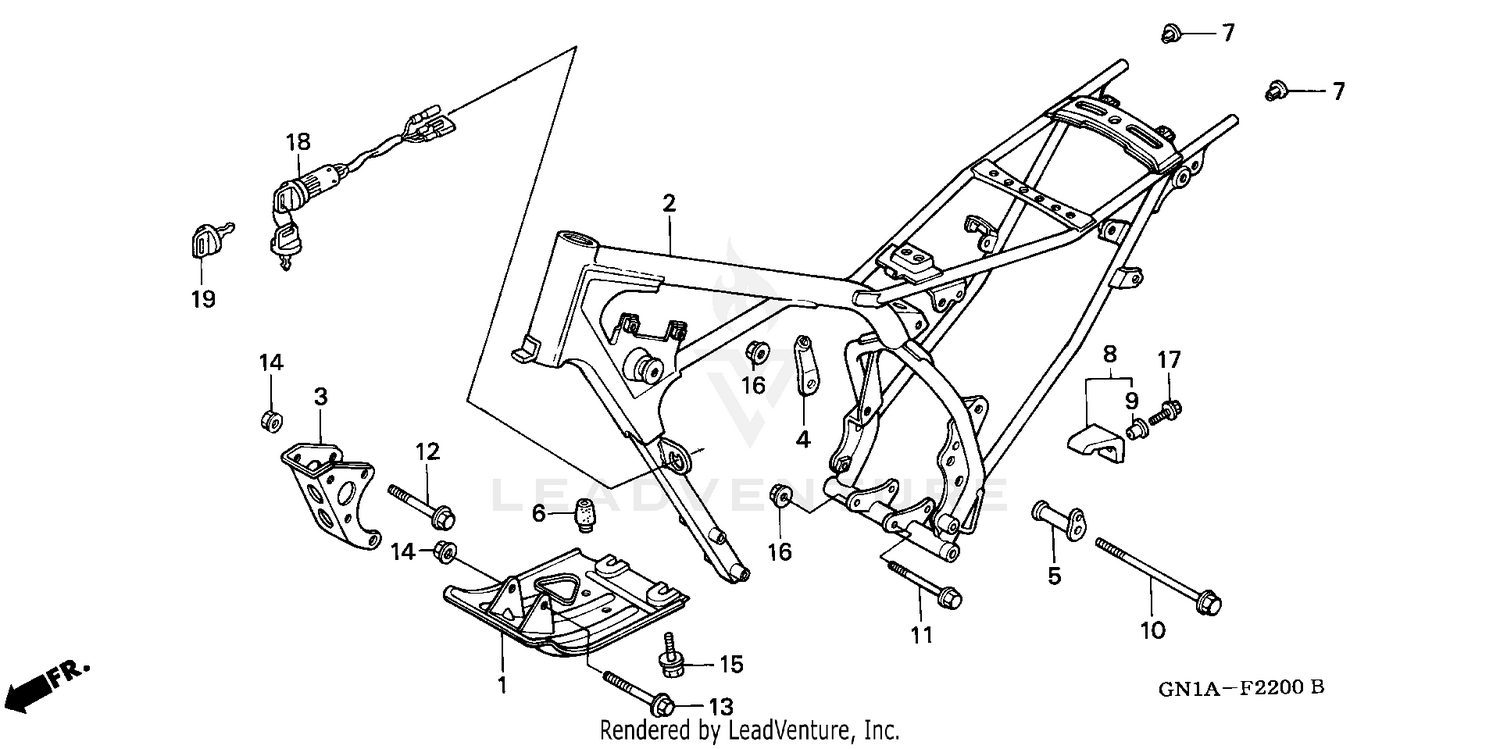

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PROTECTOR, CRANKCASE
11911-GN1-680
|
$75.00 | ||
|
Available to order. Add to View Price |
|||
|
#2
FRAME *NH146M* (ACCURATE SILVER METALLIC)
50100-KN4-A60ZA
Superseded by 50100-KN4-305ZA
|
$474.15 | ||
|
Unavailable |
|||
|
#2
FRAME *NH146M* (ACCURATE SILVER METALLIC)
50100-KN4-305ZA
|
$474.15 | ||
|
Unavailable |
|||
|
#3
STAY, FR. ENGINE HANGER *NH146M* (ACCURATE SILVER METALLIC)
50127-GN1-000ZC
Superseded by 50127-GN1-010ZC
|
$23.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, FR. ENGINE HANGER *NH146M* (ACCURATE SILVER METALLIC)
50127-GN1-010ZC
|
$23.65 | ||
|
Unavailable |
|||
|
#4
COLLAR, R. RR. ENGINE HANGER
50135-GN1-000
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, L. RR. ENGINE HANGER
50136-GN1-760
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER B, STOPPER
50363-GN1-760
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG, HOLE
50372-KN4-000
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SLIDER ASSY., CHAIN (LOWER)
52185-GN1-000
|
$23.69 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER (6MM)
61107-KK6-000
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (8X158)
90101-GN1-760
|
$10.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (8X102)
90108-GN1-000
|
$8.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (8X60)
90154-MA0-000
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (8X65)
90156-MA0-770
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, FLANGE (8MM)
90309-KF0-003
Superseded by 90309-428-731
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, FLANGE (M8X1.25) (SELF-LOCK)
90309-428-731
|
$4.20 | ||
|
Unavailable |
|||
|
#15
BOLT-WASHER (8X20)
93405-08020-08
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, FLANGE (8MM)
90309-KF0-003
Superseded by 90309-428-731
|
$4.20 | ||
|
Unavailable |
|||
|
#16
NUT, FLANGE (M8X1.25) (SELF-LOCK)
90309-428-731
|
$4.20 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE (6X10)
96300-06010-07
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#18
LOCK SET
35010-KN4-A60
|
$52.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
KEY, BLANK (TYPE1) (KEY NO. AXX / BXX)
35121-HF1-881
|
$11.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
KEY, BLANK (TYPE2) (KEY NO. CXX / DXX)
35122-HF1-881
|
$11.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
