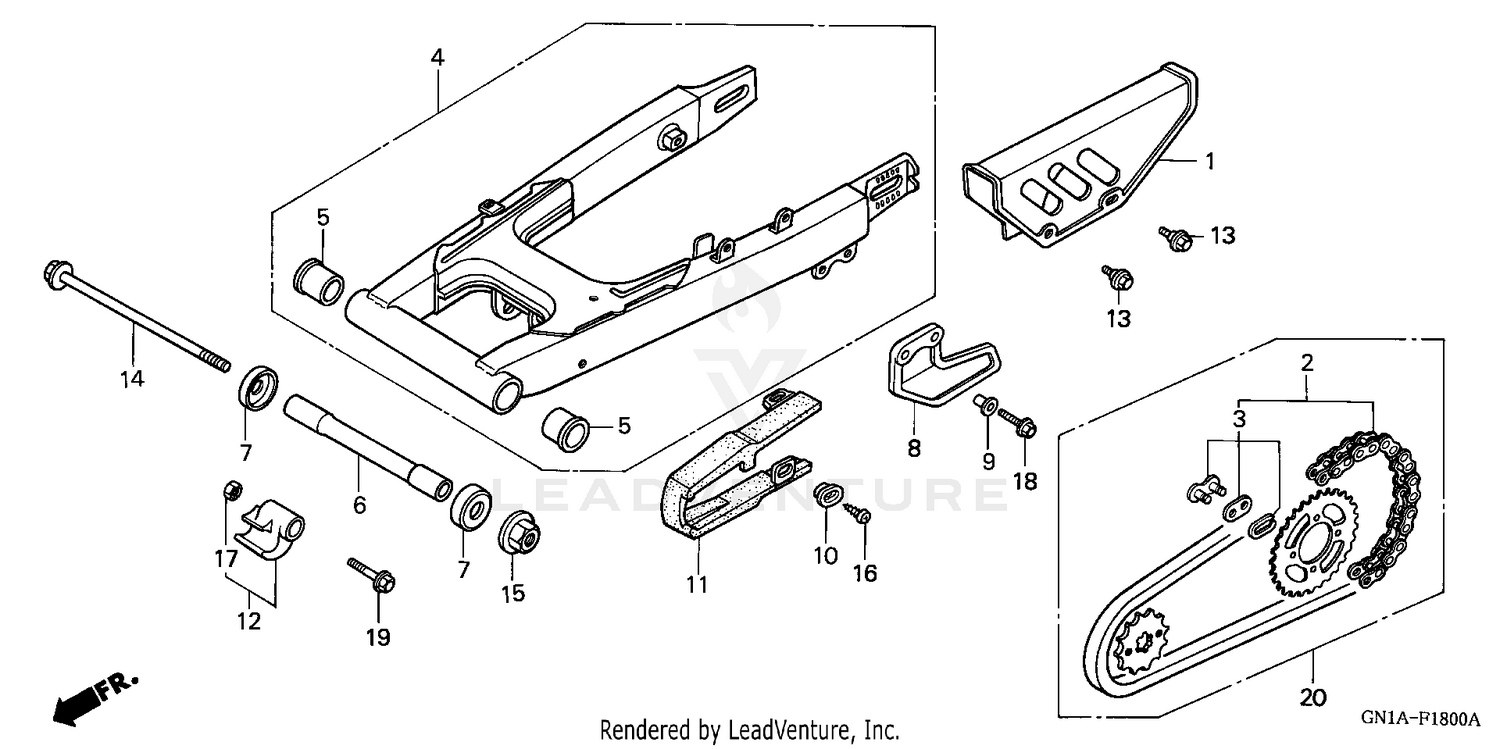

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASE, DRIVE CHAIN
40510-GN1-760
|
$39.13 | ||
|
Available to order. Add to View Price |
|||
|
#2
CHAIN, DRIVE
405W3-GN1-505
|
$38.59 | ||
|
Unavailable |
|||
|
#2
CHAIN, DRIVE
40530-GN1-003
Superseded by 405W3-GN1-505
|
$38.59 | ||
|
Unavailable |
|||
|
#2
CHAIN, DRIVE
40530-GN1-005
Superseded by 405W3-GN1-505
|
$38.59 | ||
|
Unavailable |
|||
|
#2
CHAIN, DRIVE (RK420MZ-110RJ) (RK EXCEL)
40530-GN1-A22
|
$65.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
MASTER LINK (DAIDO)
40531-098-003
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#3
MASTER LINK (DAIDO)
40531-150-005
Superseded by 40531-098-003
|
$4.71 | ||
|
Unavailable |
|||
|
#4
SWINGARM ASSY. *NH146M* (ACCURATE SILVER METALLIC)
52100-GN1-860ZB
|
$233.28 | ||
|
Unavailable |
|||
|
#5
BUSH, PIVOT THRUST
52109-GJ1-003
|
$22.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, SWINGARM
52141-GN1-000
|
$52.89 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, DUST SEAL (NOK)
52144-360-005
|
$14.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
GUARD, CHAIN
52156-GN1-000
|
$31.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, CHAIN GUARD
52157-GC5-000
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, CHAIN SLIDER
52171-KR6-000
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SLIDER, CHAIN
52175-GN1-000
|
$33.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
SLIDER, CHAIN (UPPER)
52180-GN1-000
|
$18.36 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6MM)
90111-187-000
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, SWINGARM PIVOT
90121-GN1-000
|
$37.75 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, FLANGE (12MM) (FUSERASHI)
90306-KF0-003
|
$4.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SCREW, TAPPING (5X8)
93901-25080
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#18
BOLT, FLANGE (6X18)
96300-06018-00
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X28)
96300-06028-00
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
CHAIN KIT, DRIVE (420-110L)
06406-GN1-A30
|
$62.76 | ||
|
Unavailable |
|||
