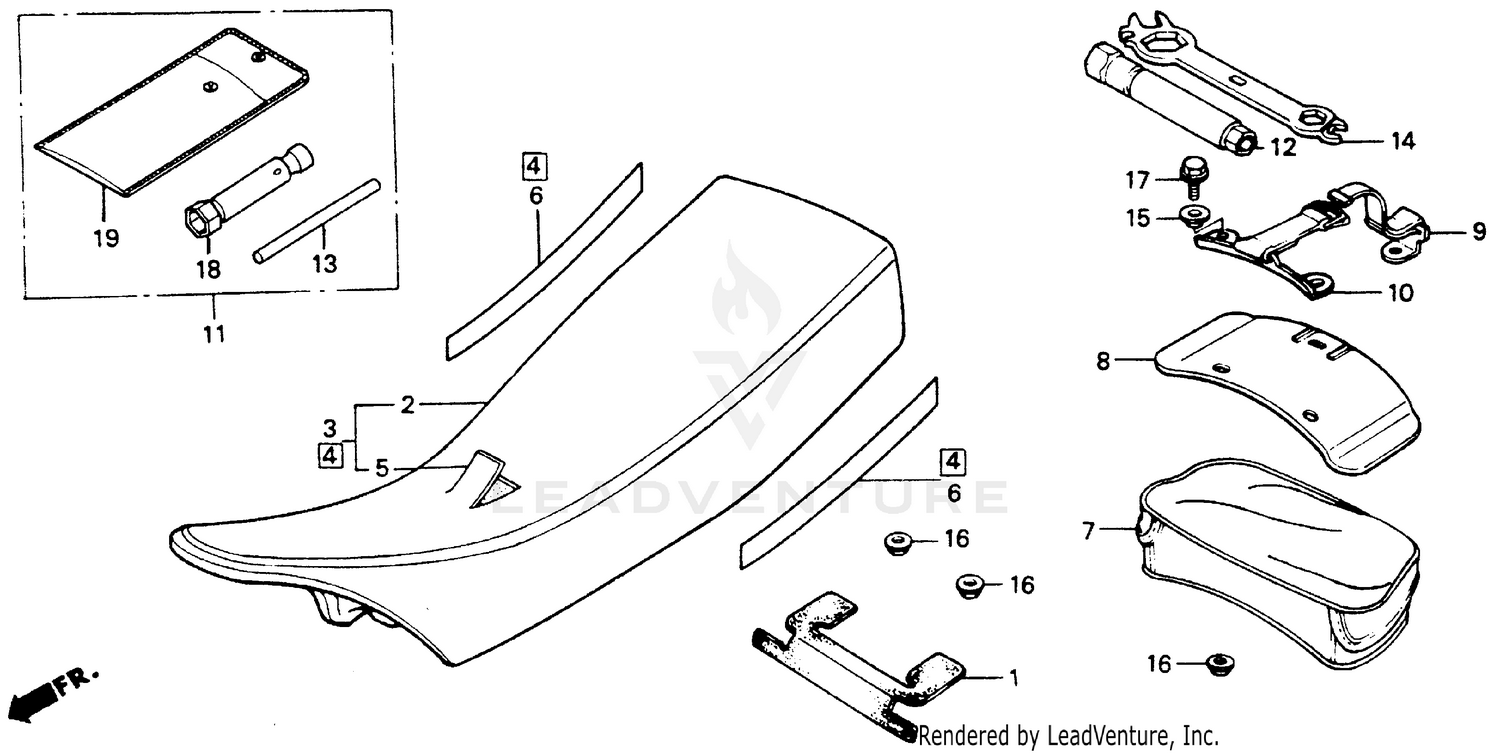

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RUBBER, SEAT (LOWER)
77120-KK0-000
|
$19.37 | ||
|
Unavailable |
|||
|
#2
SEAT ASSY. (NOT AVAILABLE)
77200-KK0-000
|
$272.03 | ||
|
Unavailable |
|||
|
#7
BAG, TAIL
83501-KK0-000
|
$93.99 | ||
|
Unavailable |
|||
|
#8
PLATE, TAIL BAG (LOWER) (NOT AVAILABLE)
83502-KK0-000
|
$16.32 | ||
|
Unavailable |
|||
|
#9
BAND B, CARRIER
83506-KF0-000
|
$20.94 | ||
|
Unavailable |
|||
|
#10
BAND A, CARRIER
83507-KK0-000
|
$33.04 | ||
|
Unavailable |
|||
|
#12
WRENCH, PLUG
89216-MB0-000
|
$32.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
WRENCH, EYE (24MM)
89225-KF0-000
|
$55.01 | ||
|
Unavailable |
|||
|
#15
WASHER, NUMBER BRACKET MOUNTING
90563-045-000
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X16)
96000-06016-00
Superseded by 96001-06016-00
|
$1.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.10 | ||
|
Unavailable |
|||
