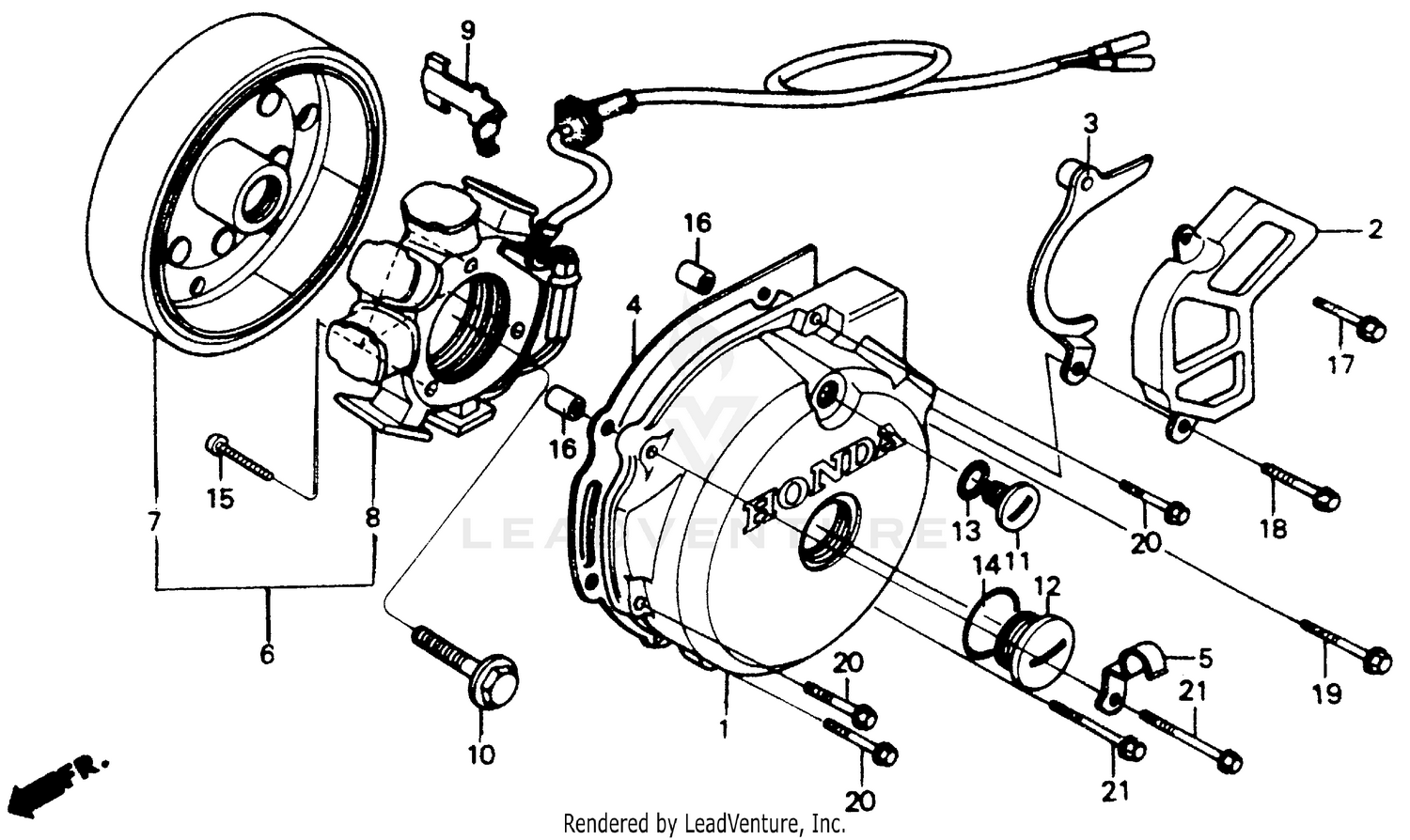

Left Crankcase Cover 84-85 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, L. CRANKCASE (NOT AVAILABLE)
11341-KK0-000
|
$115.69 | ||
|
Unavailable |
|||
|
#2
COVER, DRIVE SPROCKET (NOT AVAILABLE)
11351-KK0-000
|
$25.39 | ||
|
Unavailable |
|||
|
#3
GUIDE, DRIVE CHAIN
11352-KK0-000
|
$24.62 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, L. CRANKCASE COVER
11395-KK0-000
Superseded by 11395-KK0-306
|
$9.02 | ||
|
Unavailable |
|||
|
#5
CLAMP, CLUTCH CABLE (NOT AVAILABLE)
22826-KK0-000
|
$1.66 | ||
|
Unavailable |
|||
|
#6
ALTERNATOR ASSY. (DENSO) (NOT AVAILABLE)
31100-KK0-004
|
$699.74 | ||
|
Unavailable |
|||
|
#7
FLYWHEEL (DENSO) (NOT AVAILABLE)
31110-KK0-004
|
$520.35 | ||
|
Unavailable |
|||
|
#8
STATOR (DENSO) (NOT AVAILABLE)
31120-KK0-004
|
$236.50 | ||
|
Unavailable |
|||
|
#9
CLAMP, WIRE
32111-KK0-000
|
$5.37 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE (12X50)
90023-471-000
|
$15.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, ALTERNATOR
90084-471-000
|
$11.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP (30MM)
90087-471-000
Superseded by 90087-MR1-000
|
$24.11 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (13.8X2.5)
91303-377-000
|
$4.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
O-RING (27X2) (ARAI)
91305-KF0-003
|
$3.51 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SCREW, PAN (5X32)
93500-05032-0A
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X14)
96000-06014-07
Superseded by 96001-06014-07
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X14)
96001-06014-07
|
$1.36 | ||
|
Unavailable |
|||
|
#18
BOLT, FLANGE (6X22)
96000-06022-07
Superseded by 96001-06022-07
|
$2.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X22)
96001-06022-07
|
$2.11 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE (6X32)
96000-06032-00
Superseded by 96001-06032-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X32)
96001-06032-00
|
$1.60 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE (6X32)
96000-06032-07
Superseded by 96001-06032-07
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X32)
96001-06032-07
|
$1.76 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE (6X40)
96000-06040-07
Superseded by 96001-06040-07
|
$1.60 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE (6X40)
96001-06040-07
|
$1.60 | ||
|
Unavailable |
|||
