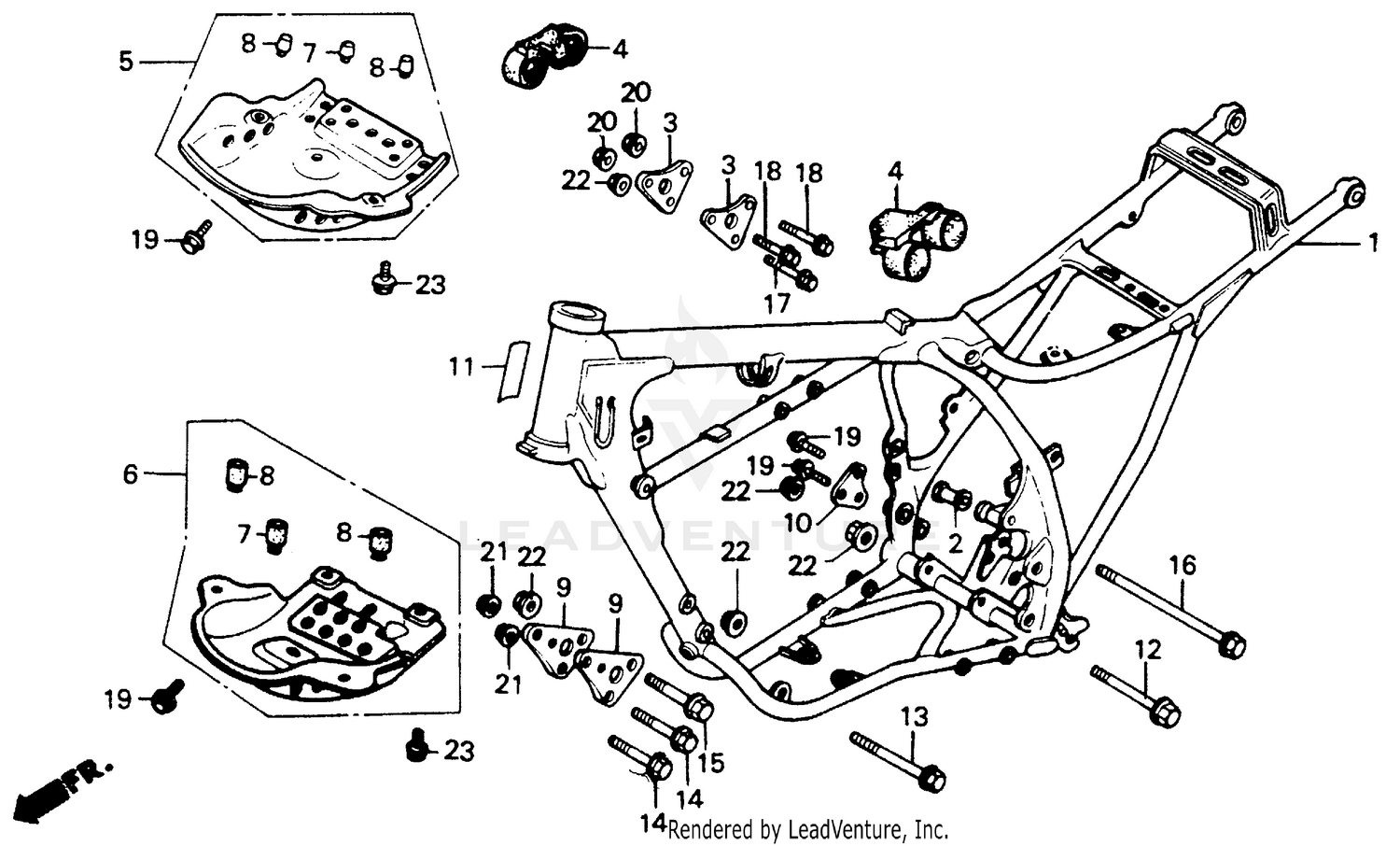

Frame 84-85 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME *R119* (FLASH RED) (NOT AVAILABLE)
50100-KK0-000ZA
|
$1,279.71 | ||
|
Unavailable |
|||
|
#2
COLLAR, R. RR. ENGINE HANGER (UPPER) *R119* (FLASH RED) (NOT AVAILABLE)
50135-KK0-000ZA
|
$13.30 | ||
|
Unavailable |
|||
|
#3
PLATE, ENGINE HANGER (UPPER) (NOT AVAILABLE)
50138-KK0-000
|
$19.64 | ||
|
Unavailable |
|||
|
#5
PLATE, SKID (NOT AVAILABLE)
50351-KK0-000
|
$134.44 | ||
|
Unavailable |
|||
|
#7
RUBBER B, STOPPER
50354-434-000
|
$6.71 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
RUBBER C, STOPPER
50355-434-000
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, FR. ENGINE HANGER (NOT AVAILABLE)
50531-KK0-000
|
$22.78 | ||
|
Unavailable |
|||
|
#10
PLATE, RR. ENGINE HANGER (NOT AVAILABLE)
50532-KK0-000
|
$21.90 | ||
|
Unavailable |
|||
|
#11
LABEL, CAUTION *NH0* (CHAMPIONSHIP WHITE) (NOT AVAILABLE)
87560-373-780ZA
|
$2.54 | ||
|
Unavailable |
|||
|
#12
BOLT, FLANGE (10X110)
90105-MG3-000
Superseded by 90115-HA0-770
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (10X100)
90108-KK0-000
|
$8.32 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE (8X68) (NOT AVAILABLE)
90112-KF0-000
|
$4.37 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE (10X72)
90114-KF0-000
Superseded by 90150-KF0-000
|
$17.91 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (10X72)
90150-KF0-000
|
$17.91 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE (10X239)
90117-KK0-000
|
$14.04 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (10X55)
90153-KF0-000
|
$11.33 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (8X55)
90154-MG3-000
Superseded by 90159-KA2-000
|
$3.14 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE (8X16)
90213-KF0-000
Superseded by 96300-08016-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (8X16)
96300-08016-00
|
$1.60 | ||
|
Unavailable |
|||
|
#20
NUT, HEX. (8MM)
90309-357-000
|
$4.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
NUT, FLANGE (8MM)
94050-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
NUT, FLANGE (10MM)
94050-10000
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X10)
96000-06010-00
Superseded by 96001-06010-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X10)
96001-06010-00
|
$1.70 | ||
|
Unavailable |
|||
