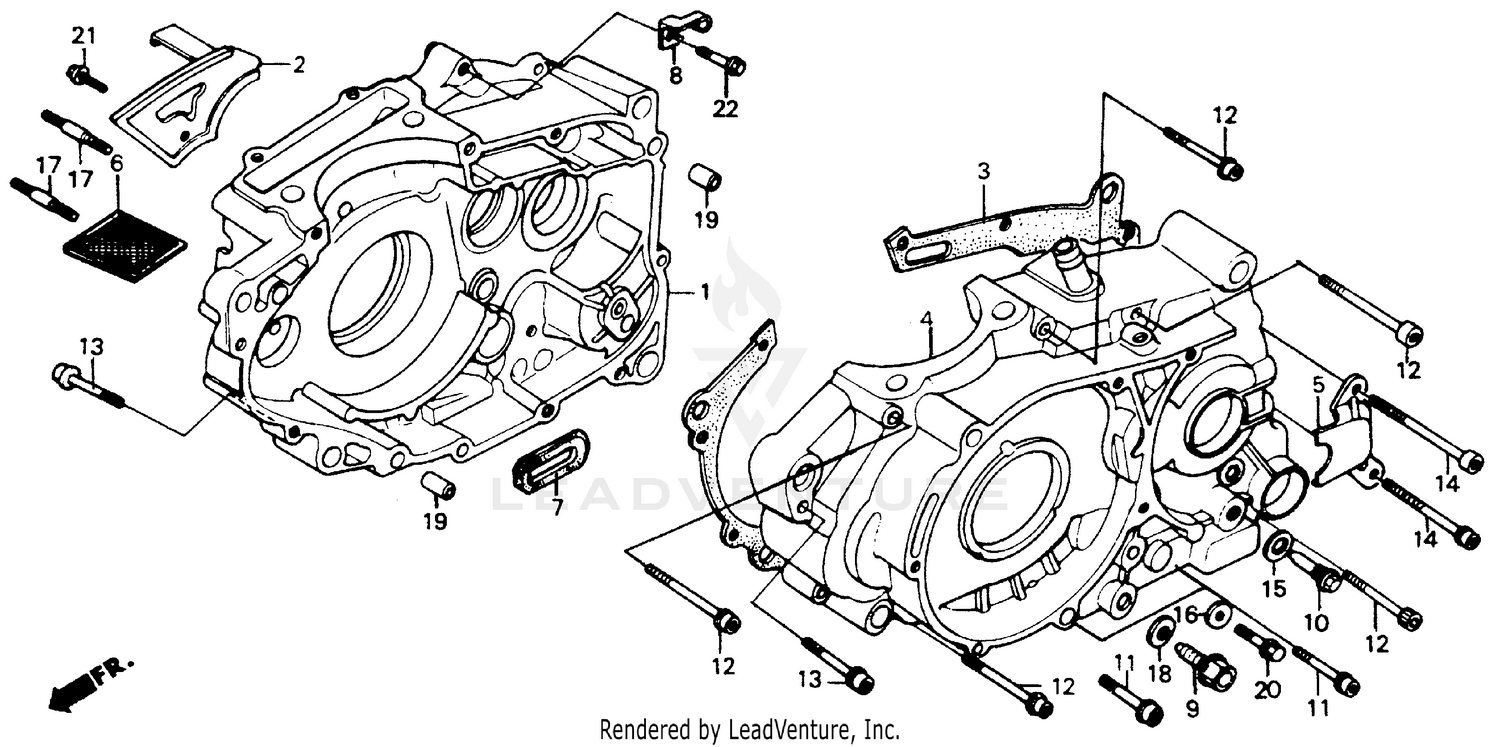

Crankcase 84-85 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE, R. (NOT AVAILABLE)
11100-KK0-000
Superseded by 11100-KK0-010
|
$217.67 | ||
|
Unavailable |
|||
|
#1
CRANKCASE, R. (NOT AVAILABLE)
11100-KK0-010
|
$217.67 | ||
|
Unavailable |
|||
|
#2
PLATE, BREATHER (NOT AVAILABLE)
11110-KK0-000
|
$20.85 | ||
|
Unavailable |
|||
|
#3
GASKET, CRANKCASE
11191-KK0-000
Superseded by 11191-KK0-306
|
$8.53 | ||
|
Unavailable |
|||
|
#4
CRANKCASE, L. (NOT AVAILABLE)
11200-KK0-000
|
$330.50 | ||
|
Unavailable |
|||
|
#5
COVER, COUNTERSHAFT (NOT AVAILABLE)
11353-KK0-000
|
$14.62 | ||
|
Unavailable |
|||
|
#6
SCREEN, OIL FILTER
15421-KK0-000
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
RECEIVER, CLUTCH CABLE (NOT AVAILABLE)
22825-KK0-000
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, SPECIAL (12MM)
90015-KA3-710
Superseded by 90015-KA3-711
|
$8.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT, SPECIAL (12MM)
90015-KA3-711
|
$8.16 | ||
|
Unavailable |
|||
|
#10
BOLT, GEARSHIFT RETURN SPRING STOPPER
90021-KK0-003
Superseded by 90021-KW3-010
|
$8.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, GEARSHIFT RETURN SPRING STOPPER
90021-KW3-000
Superseded by 90021-KW3-010
|
$8.40 | ||
|
Unavailable |
|||
|
#10
BOLT, GEARSHIFT RETURN SPRING STOPPER
90021-KW3-010
|
$8.40 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE SOCKET (6X55)
90091-KK1-000
|
$3.54 | ||
|
Unavailable |
|||
|
#12
BOLT, FLANGE SOCKET (6X70)
90092-KK1-000
|
$3.92 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE SOCKET (6X35)
90092-MG3-000
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE SOCKET (6X90)
90093-KK1-000
|
$4.25 | ||
|
Unavailable |
|||
|
#15
WASHER, SEALING (10MM)
90441-329-000
|
$4.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, STUD (6X25)
92900-06025-0B
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, DRAIN PLUG (12MM)
94109-12000
|
$1.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X12)
96000-06012-00
Superseded by 96001-06012-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X12)
96001-06012-00
|
$1.88 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE (6X16)
96000-06016-07
Superseded by 96001-06016-07
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X16)
96001-06016-07
|
$1.20 | ||
|
Unavailable |
|||
