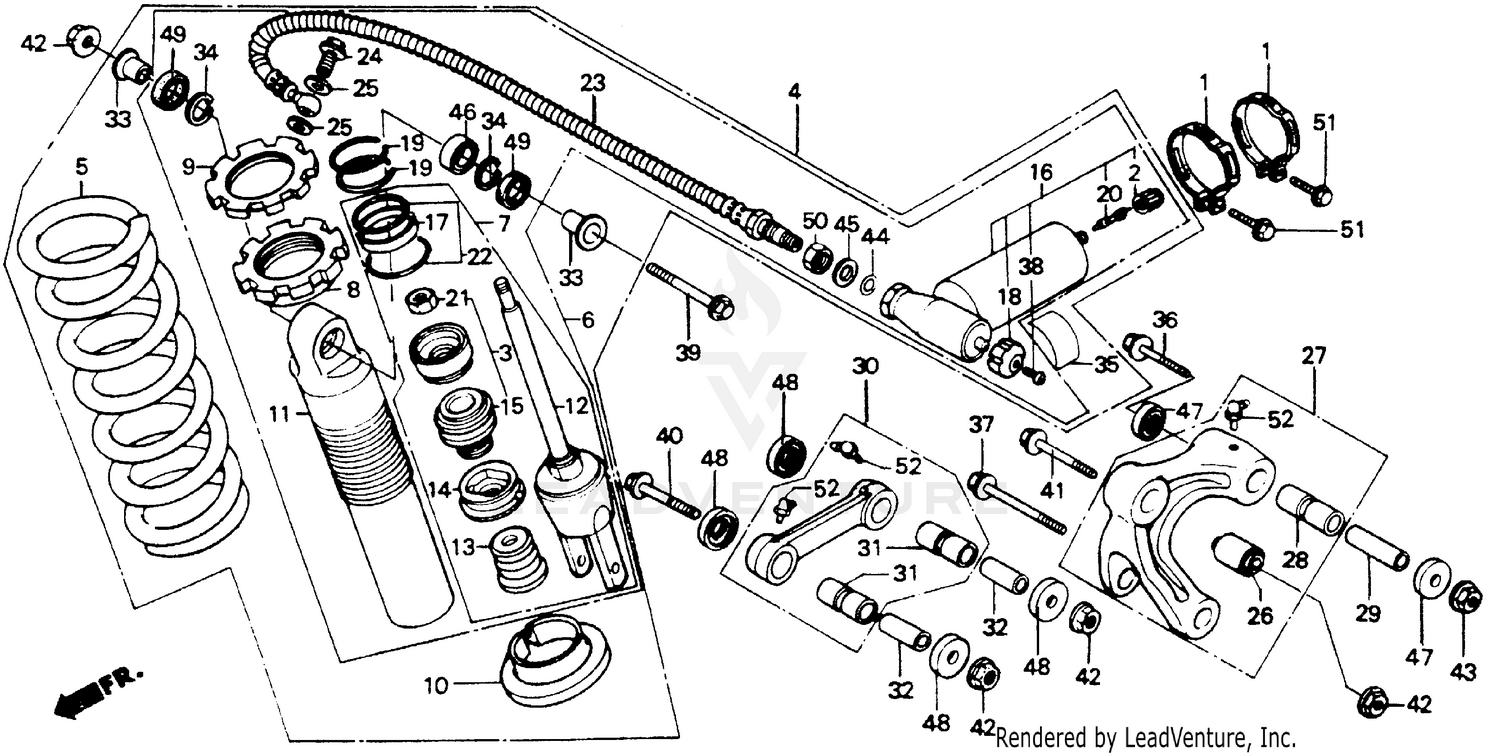

Rear Shock Absorber 84-85 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAND, SUB-TANK (NOT AVAILABLE)
50252-KK0-000
|
$16.69 | ||
|
Unavailable |
|||
|
#2
CAP, AIR VALVE
51453-KK0-004
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
CASE & NUT SET, ROD GUIDE (NOT AVAILABLE)
524A2-KA3-731
|
$22.89 | ||
|
Unavailable |
|||
|
#4
CUSHION ASSY., RR. (NOT AVAILABLE)
52400-KK0-014
|
$1,203.03 | ||
|
Unavailable |
|||
|
#5
SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)
52401-KK0-004
|
$190.35 | ||
|
Unavailable |
|||
|
#6
DAMPER, RR. (NOT AVAILABLE)
52410-KK0-014
|
$731.69 | ||
|
Unavailable |
|||
|
#7
ROD, PISTON (NOT AVAILABLE)
52421-KK0-004
|
$307.28 | ||
|
Unavailable |
|||
|
#8
SEAT, SPRING (UPPER) (KAYABA)
52422-KA3-731
|
$33.14 | ||
|
Unavailable |
|||
|
#9
NUT, ADJUSTER
52423-KA3-731
|
$25.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
STOPPER, SPRING SEAT (NOT AVAILABLE)
52424-KA3-731
|
$14.54 | ||
|
Unavailable |
|||
|
#11
CASE, RR. SHOCK ABSORBER (NOT AVAILABLE)
52425-KK0-004
|
$433.96 | ||
|
Unavailable |
|||
|
#12
ROD (NOT AVAILABLE)
52426-KK0-004
Superseded by 52426-KT0-671
|
$365.44 | ||
|
Unavailable |
|||
|
#13
RUBBER, BUMPER (NOT AVAILABLE)
52427-KK0-004
|
$13.37 | ||
|
Unavailable |
|||
|
#14
CAP, CASE (NOT AVAILABLE)
52428-KA3-731
|
$16.40 | ||
|
Unavailable |
|||
|
#15
CASE, ROD GUIDE (KAYABA)
52429-KA3-731
|
$25.75 | ||
|
Unavailable |
|||
|
#16
SUB-TANK ASSY. (NOT AVAILABLE)
52430-KK0-014
|
$104.10 | ||
|
Unavailable |
|||
|
#17
RING, PISTON (KAYABA) (NOT AVAILABLE)
52431-KA3-731
|
$13.64 | ||
|
Unavailable |
|||
|
#18
DIAL, SUB-TANK (NOT AVAILABLE)
52433-KK0-004
|
$10.40 | ||
|
Unavailable |
|||
|
#19
RING, SNAP (NOT AVAILABLE)
52435-KA3-731
|
$3.79 | ||
|
Unavailable |
|||
|
#20
CORE, VALVE
52437-KA3-731
|
$11.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, HEX. (12MM)
52438-KA3-731
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING SET (KAYABA) (NOT AVAILABLE)
52439-KA3-731
Superseded by 52437-KA3-832
|
$7.45 | ||
|
Unavailable |
|||
|
#23
HOSE, JOINT (NOT AVAILABLE)
52440-KK0-004
|
$80.51 | ||
|
Unavailable |
|||
|
#24
BOLT, OIL
52441-KA3-731
|
$10.78 | ||
|
Unavailable |
|||
|
#25
WASHER, OIL BOLT
52442-KA3-731
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#26
BUSH, DAMPER (LOWER)
52451-MA0-000
|
$18.31 | ||
|
Available to order. Add to View Price |
|||
|
#27
ARM, SHOCK ABSORBER
52460-KK0-000
Superseded by 52460-KK0-010
|
$333.78 | ||
|
Unavailable |
|||
|
#28
BUSH, CUSHION ARM
52462-KF0-003
|
$29.59 | ||
|
Unavailable |
|||
|
#29
COLLAR, CUSHION ARM PIVOT
52463-KF0-000
|
$18.48 | ||
|
Unavailable |
|||
|
#30
ROD ASSY., RUBBER CONNECTING (NOT AVAILABLE)
52470-KF0-010
|
$274.18 | ||
|
Unavailable |
|||
|
#31
BUSH, CUSHION CONNECTING ROD
52472-MA0-013
|
$35.71 | ||
|
Available to order. Add to View Price |
|||
|
#32
COLLAR, CONNECTING ROD PIVOT
52473-MA0-010
Superseded by 52473-MA0-020
|
$20.22 | ||
|
Available to order. Add to View Price |
|||
|
#32
COLLAR, CONNECTING ROD PIVOT
52473-MA0-020
|
$20.22 | ||
|
Unavailable |
|||
|
#33
COLLAR, SHOCK ABSORBER (UPPER) (NOT AVAILABLE)
52486-KA3-731
|
$15.22 | ||
|
Unavailable |
|||
|
#34
RING, STOPPER
52487-KA3-731
|
$4.42 | ||
|
Unavailable |
|||
|
#35
LABEL, RR. DAMPER WARNING (NOT AVAILABLE)
87516-KA3-741
Superseded by 87516-KT1-901
|
$5.37 | ||
|
Unavailable |
|||
|
#36
BOLT, FLANGE (12X90)
90128-KF0-000
|
$6.33 | ||
|
Unavailable |
|||
|
#37
BOLT, FLANGE (10X77)
90129-KF0-000
|
$18.00 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW, PAN (3X6) (NOT AVAILABLE)
90137-KK0-004
Superseded by 52448-KA3-731
|
$2.19 | ||
|
Unavailable |
|||
|
#39
BOLT, FLANGE (10X83) (NOT AVAILABLE)
90150-KK0-000
|
$9.21 | ||
|
Unavailable |
|||
|
#40
BOLT, FLANGE (10X69)
90151-KF0-000
Superseded by 90151-KV6-910
|
$13.38 | ||
|
Unavailable |
|||
|
#40
BOLT, FLANGE (10X69)
90151-KV6-910
|
$13.38 | ||
|
Unavailable |
|||
|
#41
BOLT, FLANGE (10X58)
90153-KK0-000
|
$9.13 | ||
|
Available to order. Add to View Price |
|||
|
#42
NUT, U (10MM) (FUSE RASHI)
90304-GE8-003
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
NUT, FLANGE (12MM) (FUSERASHI)
90306-KF0-003
|
$4.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
O-RING (1.9X9.8) (NOT AVAILABLE)
90351-KK0-004
|
$1.62 | ||
|
Unavailable |
|||
|
#45
WASHER (10MM)
90501-KK0-004
Superseded by 90501-KK6-700
|
$1.80 | ||
|
Unavailable |
|||
|
#45
WASHER (10MM)
90501-KK6-700
|
$1.80 | ||
|
Unavailable |
|||
|
#46
BEARING, SPHERICAL (14MM)
91077-KA3-731
Superseded by 91077-KN5-004
|
$25.84 | ||
|
Available to order. Add to View Price |
|||
|
#46
BEARING, SPHERICAL (14MM)
91077-KN5-004
|
$25.84 | ||
|
Unavailable |
|||
|
#47
SEAL, CUSHION ARM PIVOT (ARAI)
91261-KA3-711
Superseded by 91262-KR8-750
|
$13.25 | ||
|
Available to order. Add to View Price |
|||
|
#47
SEAL, CUSHION ARM PIVOT (ARAI)
91261-KA3-712
Superseded by 91262-KR8-750
|
$13.25 | ||
|
Unavailable |
|||
|
#47
SEAL, CUSHION ARM PIVOT (ARAI)
91262-KR8-750
|
$13.25 | ||
|
Unavailable |
|||
|
#48
SEAL, RUBBER CONNECTING ROD PIVOT (ARAI)
91262-KA3-711
Superseded by 91262-KA3-712
|
$14.09 | ||
|
Available to order. Add to View Price |
|||
|
#48
SEAL, CUSHION CONNECTING ROD PIVOT (ARAI)
91262-KA3-712
|
$14.09 | ||
|
Unavailable |
|||
|
#49
DUST SEAL, RR. SHOCK (UPPER) (NOT AVAILABLE)
91351-KA3-731
|
$5.18 | ||
|
Unavailable |
|||
|
#50
NUT, HEX. (12MM)
94002-12000-0S
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#51
BOLT, FLANGE (6X22)
96000-06022-00
Superseded by 96001-06022-00
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#51
BOLT, FLANGE (6X22)
96001-06022-00
|
$1.42 | ||
|
Unavailable |
|||
|
#52
NIPPLE, GREASE (B.T6S)
96201-80000
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
