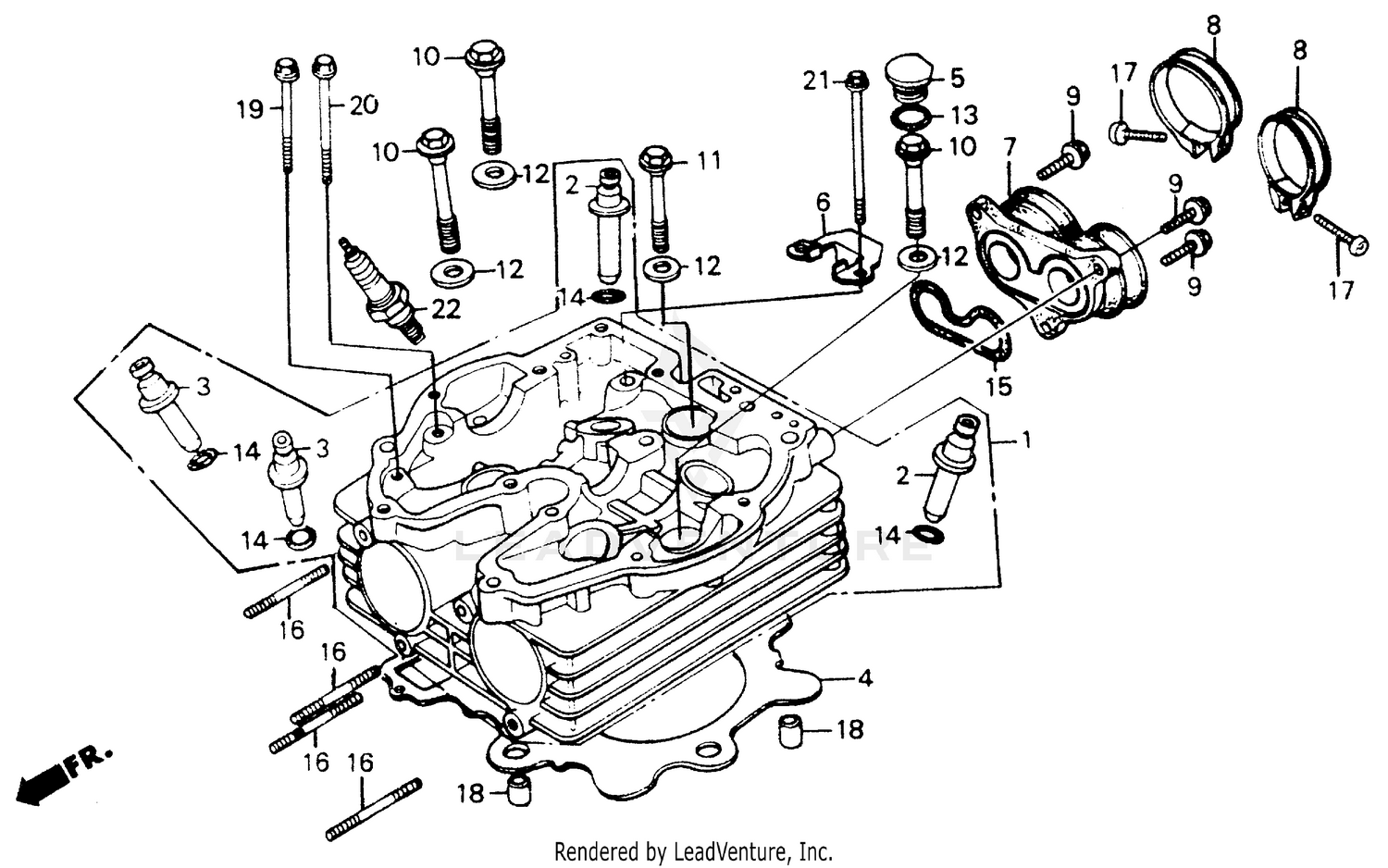

Cylinder Head 84-85 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD
12200-KK0-000
Superseded by 12200-KK0-010
|
$327.62 | ||
|
Unavailable |
|||
|
#2
GUIDE, IN. VALVE
12231-KK0-305
|
$19.97 | ||
|
Unavailable |
|||
|
#3
GUIDE, EX. VALVE
12241-KK0-305
|
$24.08 | ||
|
Unavailable |
|||
|
#4
GASKET, CYLINDER HEAD (NOT AVAILABLE)
12251-KK0-003
|
$26.11 | ||
|
Unavailable |
|||
|
#5
CAP, CYLINDER HEAD HOLE (NOT AVAILABLE)
12345-KK0-000
|
$9.11 | ||
|
Unavailable |
|||
|
#6
PLATE, TENSIONER SETTING
14515-KK0-000
Superseded by 14515-KK0-010
|
$15.63 | ||
|
Unavailable |
|||
|
#6
PLATE, TENSIONER SETTING
14515-KK0-010
|
$15.63 | ||
|
Unavailable |
|||
|
#7
INSULATOR, CARBURETOR (NOT AVAILABLE)
16211-KK0-000
|
$65.81 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, INSULATOR
16223-KS5-000
|
$17.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, INSULATOR
16223-357-010
Superseded by 16223-KS5-000
|
$17.20 | ||
|
Unavailable |
|||
|
#9
BOLT, SOCKET (6X22) (NOT AVAILABLE)
90001-KK0-000
|
$3.63 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE (10X72)
90081-KG0-000
Superseded by 90082-KK0-000
|
$13.91 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE (10X72)
90082-KK0-000
|
$13.91 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE (10X81)
90081-KK0-000
|
$14.91 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
WASHER (10MM)
90410-KE5-000
Superseded by 90410-KR0-000
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (10MM)
90410-KR0-000
|
$3.05 | ||
|
Unavailable |
|||
|
#13
O-RING (15.8X2.5) (ARAI)
91301-MC7-003
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (10X1.6)
91301-200-000
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING, CARBURETOR INSULATOR (ARAI)
91302-KK1-003
|
$6.62 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, STUD (6X32)
92700-06032-0B
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN (5X20)
93500-05020-0A
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, DOWEL (12X20)
94301-12200
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X70)
96000-06070-00
Superseded by 96001-06070-00
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X70)
96001-06070-00
|
$2.24 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE (6X80)
96000-06080-00
Superseded by 96001-06080-07
|
$2.77 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE (6X80)
96000-06080-07
Superseded by 96001-06080-07
|
$2.77 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE (6X80)
96001-06080-07
|
$2.77 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE (6X90)
96000-06090-00
Superseded by 96001-06090-00
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X90)
96001-06090-00
|
$2.24 | ||
|
Unavailable |
|||
|
#22
SPARK PLUG (DPR8Z) (NGK)
98061-58616
|
$3.92 | ||
|
Unavailable |
|||
|
#22
SPARK PLUG (X24GPR-U) (DENSO)
98061-58626
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPARK PLUG (DPR9Z) (NGK)
98061-59616
|
$3.92 | ||
|
Unavailable |
|||
|
#22
SPARK PLUG (X27GPR-U) (DENSO)
98061-59626
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
