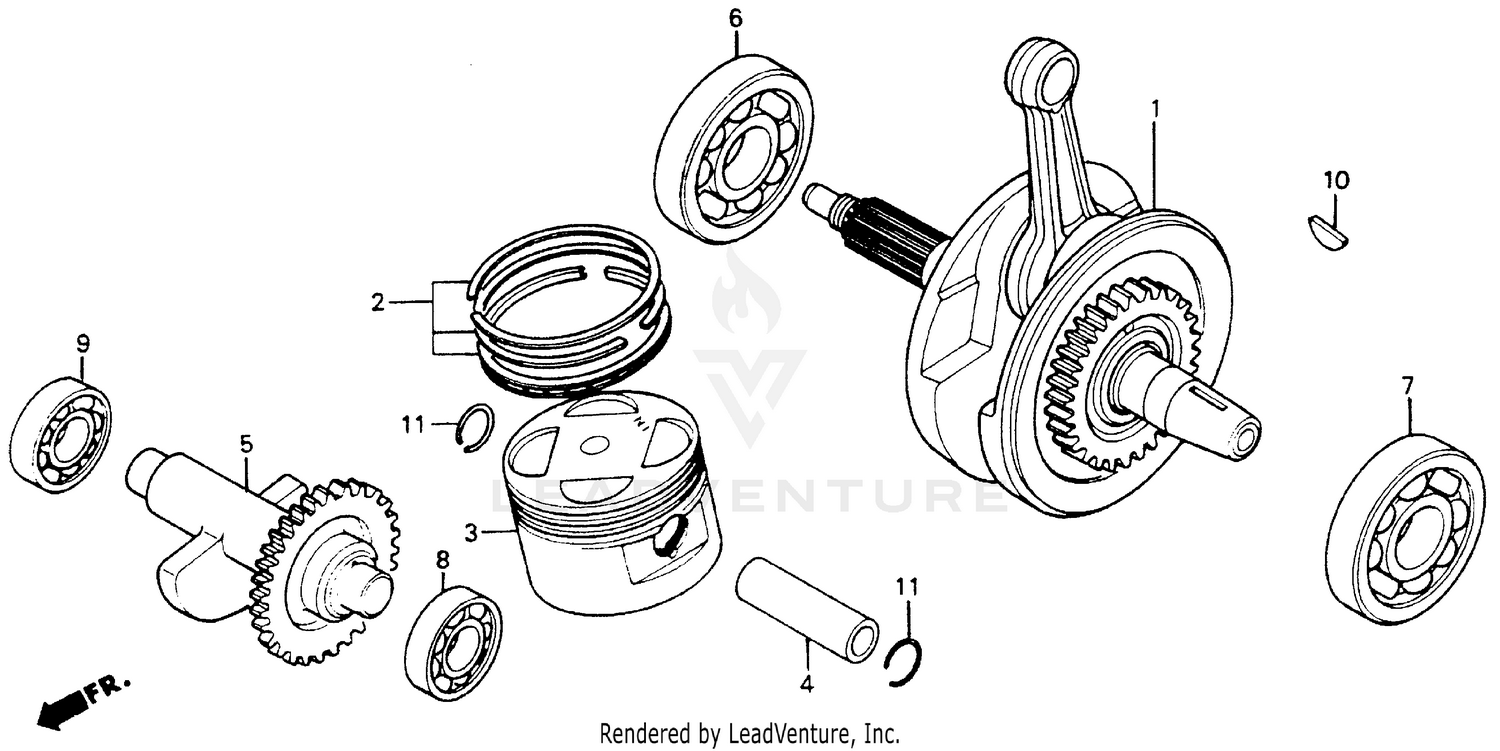

Crankshaft 84-85 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT (NOT AVAILABLE)
13000-KK0-000
|
$474.14 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (STD) (NOT AVAILABLE)
13011-KK0-305
|
$41.09 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (OVER SIZE) (0.25) (NOT AVAILABLE)
13012-KK0-305
|
$41.09 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (OVER SIZE) (0.50) (NOT AVAILABLE)
13013-KK0-305
|
$41.09 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (OVER SIZE) (0.75) (NOT AVAILABLE)
13014-KK0-305
|
$41.09 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (1.00) (NOT AVAILABLE)
13015-KK0-305
|
$41.09 | ||
|
Unavailable |
|||
|
#3
PISTON (STD)
13101-KK0-003
|
$101.96 | ||
|
Unavailable |
|||
|
#3
PISTON (OVER SIZE) (0.25) (NOT AVAILABLE)
13102-KK0-305
|
$99.04 | ||
|
Unavailable |
|||
|
#3
PISTON (OVER SIZE) (0.50) (NOT AVAILABLE)
13103-KK0-305
|
$101.96 | ||
|
Unavailable |
|||
|
#3
PISTON (OVER SIZE) (0.75) (NOT AVAILABLE)
13104-KK0-305
|
$101.96 | ||
|
Unavailable |
|||
|
#3
PISTON (1.00) (NOT AVAILABLE)
13105-KK0-305
|
$89.02 | ||
|
Unavailable |
|||
|
#4
PIN, PISTON
13111-KK0-000
|
$35.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT, BALANCER (34T) (NOT AVAILABLE)
13420-KK1-000
|
$172.99 | ||
|
Unavailable |
|||
|
#6
BEARING, RADIAL BALL (63/28)
91001-KK0-003
Superseded by 91009-HC0-003
|
$38.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BEARING, RADIAL BALL (63/28)
91001-KY7-003
Superseded by 91009-HC0-003
|
$38.09 | ||
|
Unavailable |
|||
|
#6
BEARING, RADIAL BALL (63/28)
91009-HC0-003
|
$38.09 | ||
|
Unavailable |
|||
|
#7
BEARING, BALL (63/28)
91002-KK0-003
|
$29.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, RADIAL BALL (6301)
91006-KF0-000
Superseded by 91006-KF0-003
|
$18.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING, RADIAL BALL (6202) (NTN)
91009-KJ1-003
|
$18.51 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING, RADIAL BALL (6202)
91009-KK1-003
Superseded by 91009-KJ1-003
|
$18.51 | ||
|
Unavailable |
|||
|
#10
KEY, WOODRUFF (25X14)
94401-25140
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP, PISTON PIN (17MM)
94601-17000
|
$1.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
