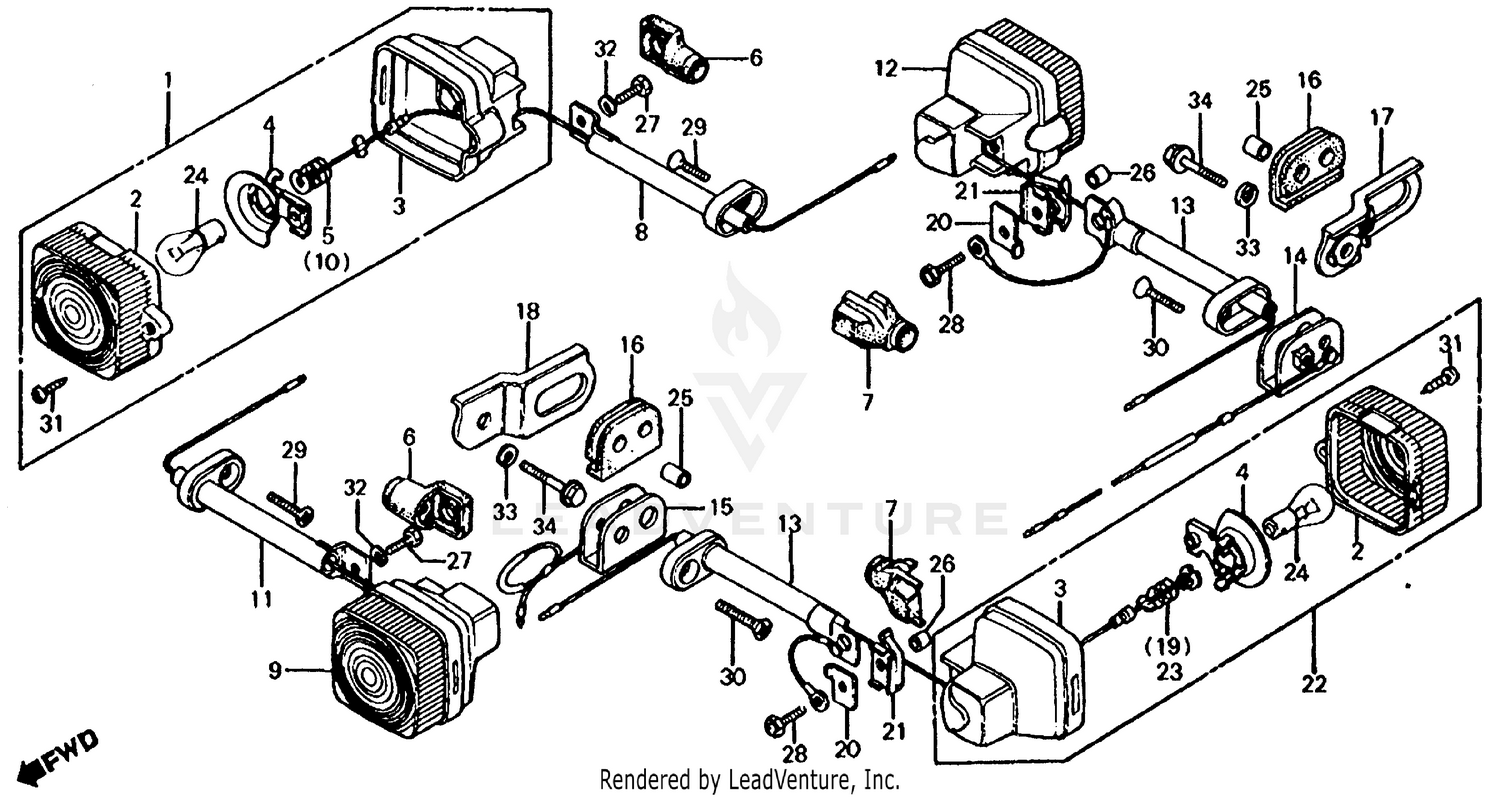

Turn Signal 81-82 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TURN SIGNAL ASSY., R. FR.
33400-174-406
|
$33.76 | ||
|
Unavailable |
|||
|
#1
TURN SIGNAL ASSY., R. FR.
33400-174-771
Superseded by 33400-174-406
|
$33.76 | ||
|
Unavailable |
|||
|
#1
TURN SIGNAL ASSY., R. FR.
33400-174-772
Superseded by 33400-174-406
|
$33.76 | ||
|
Unavailable |
|||
|
#2
LENS, TURN SIGNAL
33402-195-013
Superseded by 33402-195-023
|
$10.58 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS, TURN SIGNAL
33402-195-023
|
$10.58 | ||
|
Unavailable |
|||
|
#3
BASE, TURN SIGNAL
33403-195-003
Superseded by 33403-195-013
|
$26.43 | ||
|
Unavailable |
|||
|
#3
BASE, TURN SIGNAL
33403-195-013
|
$26.43 | ||
|
Unavailable |
|||
|
#4
REFLECTOR, TURN SIGNAL (NOT AVAILABLE)
33404-174-771
|
$12.26 | ||
|
Unavailable |
|||
|
#5
WIRE, R. TURN SIGNAL (STANLEY) (NOT AVAILABLE)
33410-166-013
|
$7.49 | ||
|
Unavailable |
|||
|
#6
COVER, TURN SIGNAL STAY
33425-174-770
|
$6.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, TURN SIGNAL STAY
33425-437-711
|
$5.27 | ||
|
Unavailable |
|||
|
#8
STAY, FR. TURN SIGNAL
33441-437-711
|
$33.66 | ||
|
Unavailable |
|||
|
#9
TURN SIGNAL ASSY., L. FR.
33400-174-406
|
$33.76 | ||
|
Unavailable |
|||
|
#9
TURN SIGNAL ASSY., R. FR.
33450-174-771
Superseded by 33400-174-406
|
$33.76 | ||
|
Unavailable |
|||
|
#9
TURN SIGNAL ASSY., R. FR.
33450-174-772
Superseded by 33400-174-406
|
$33.76 | ||
|
Unavailable |
|||
|
#10
WIRE, L. TURN SIGNAL (STANLEY) (NOT AVAILABLE)
33460-166-013
|
$7.49 | ||
|
Unavailable |
|||
|
#11
STAY, L. FR. TURN SIGNAL (NOT AVAILABLE)
33541-437-711
|
$18.36 | ||
|
Unavailable |
|||
|
#12
TURN SIGNAL, R. RR.
33600-KA8-719
Superseded by 33600-KA8-406
|
$23.05 | ||
|
Unavailable |
|||
|
#12
TURN SIGNAL, R. RR.
33600-437-711
Superseded by 33600-KA8-406
|
$23.05 | ||
|
Unavailable |
|||
|
#12
TURN SIGNAL, R. RR.
33650-437-711
Superseded by 33600-KA8-406
|
$23.05 | ||
|
Unavailable |
|||
|
#13
STAY, RR. TURN SIGNAL (NOT AVAILABLE)
33602-437-710
|
$27.38 | ||
|
Unavailable |
|||
|
#14
STOPPER, R. RR. TURN SIGNAL (NOT AVAILABLE)
33604-436-670
|
$10.93 | ||
|
Unavailable |
|||
|
#15
STOPPER, L. RR. TURN SIGNAL (NOT AVAILABLE)
33605-436-670
|
$10.93 | ||
|
Unavailable |
|||
|
#16
RUBBER, RR. TURN SIGNAL MOUNT
33606-074-010
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
STAY, R. RR. TURN SIGNAL (NOT AVAILABLE)
33606-436-000
|
$25.25 | ||
|
Available to order. Add to View Price |
|||
|
#18
STAY, L. RR. TURN SIGNAL (NOT AVAILABLE)
33607-436-000
|
$25.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
WIRE, R. RR. TURN SIGNAL (STANLEY) (NOT AVAILABLE)
33610-437-710
|
$9.25 | ||
|
Unavailable |
|||
|
#20
WASHER, TURN SIGNAL MOUNT
33611-437-710
|
$1.82 | ||
|
Unavailable |
|||
|
#21
RUBBER, TURN SIGNAL MOUNT (NOT AVAILABLE)
33612-437-710
|
$4.96 | ||
|
Unavailable |
|||
|
#22
TURN SIGNAL, R. RR.
33600-KA8-719
Superseded by 33600-KA8-406
|
$23.05 | ||
|
Unavailable |
|||
|
#22
TURN SIGNAL, R. RR.
33650-437-711
Superseded by 33600-KA8-406
|
$23.05 | ||
|
Unavailable |
|||
|
#23
WIRE, L. RR. TURN SIGNAL (STANLEY) (NOT AVAILABLE)
33660-437-710
|
$9.25 | ||
|
Unavailable |
|||
|
#24
BULB, TURN SIGNAL (6V17W) (STANLEY)
34905-358-003
|
$6.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
COLLAR A, RR. FENDER
80108-061-010
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR (7.5X6.8)
90501-437-710
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, HEX. (5X12)
92000-05012-0A
Superseded by 92101-05012-0G
|
$1.08 | ||
|
Unavailable |
|||
|
#27
BOLT, HEX. (5X12)
92101-05012-0A
Superseded by 92101-05012-0G
|
$1.08 | ||
|
Unavailable |
|||
|
#27
BOLT, HEX. (5X12)
92101-05012-0G
|
$1.08 | ||
|
Unavailable |
|||
|
#28
BOLT, HEX. (5X16)
92000-05016-0A
Superseded by 92101-05016-0A
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, HEX. (5X16)
92101-05016-0A
|
$0.85 | ||
|
Unavailable |
|||
|
#29
SCREW, OVAL (6X20)
93700-06020
Superseded by 93700-06020-0A
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, OVAL (6X20)
93700-06020-0A
|
$1.20 | ||
|
Unavailable |
|||
|
#30
SCREW, OVAL (6X25)
93700-06025
Superseded by 93700-06025-0A
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, OVAL (6X25)
93700-06025-0A
|
$1.40 | ||
|
Unavailable |
|||
|
#30
SCREW, OVAL (6X25)
93700-06025-1A
Superseded by 93700-06025-0A
|
$1.40 | ||
|
Unavailable |
|||
|
#31
SCREW, TAPPING (4X16)
93901-14480
|
$0.61 | ||
|
Unavailable |
|||
|
#32
WASHER, SPRING (5MM)
94111-05000
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, SPRING (6MM)
94111-06700
|
$1.12 | ||
|
Unavailable |
|||
|
#34
BOLT, FLANGE (6X25)
95800-06025-07
Superseded by 95801-06025-07
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (6X25)
95801-06025-07
|
$1.88 | ||
|
Unavailable |
|||
