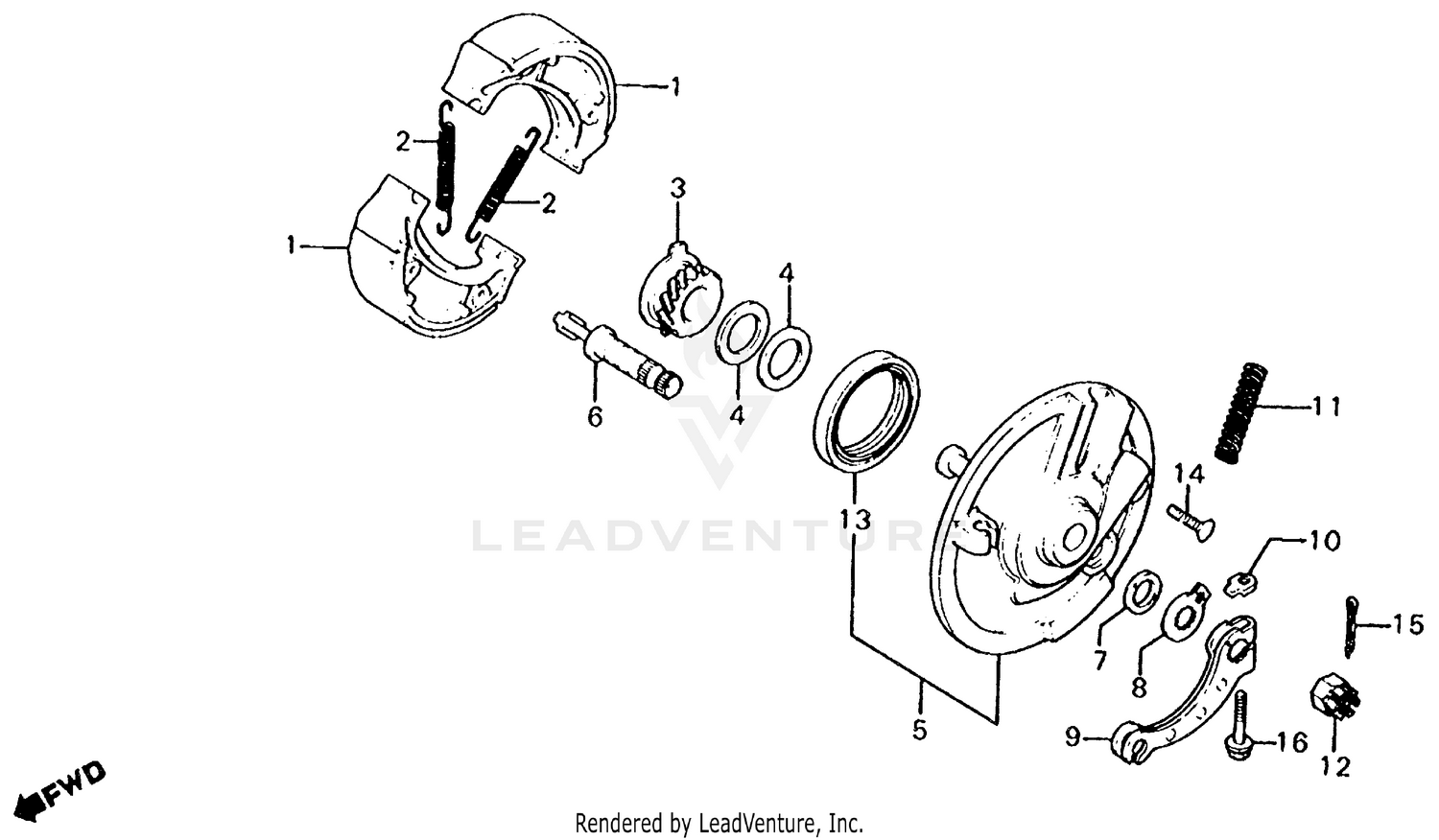

Front Brake Panel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#NI
SHOE SET, BRAKE (ASK)
06430-KT0-305
Superseded by 06430-GBJ-J10
|
$35.42 | ||
|
Available to order. Add to View Price |
|||
|
#NI
SHOE SET, BRAKE (ASK)
06430-365-674
Superseded by 06430-GBJ-J10
|
$35.42 | ||
|
Unavailable |
|||
|
#NI
SHOE SET, BRAKE (ASK)
431A2-365-672
Superseded by 06430-GBJ-J10
|
$35.42 | ||
|
Unavailable |
|||
|
#1
SHOE SET, BRAKE (ASK)
43120-365-672
Superseded by 06430-GBJ-J10
|
$35.42 | ||
|
Unavailable |
|||
|
#2
SPRING, BRAKE SHOE
43151-110-000
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, SPEEDOMETER
44804-150-003
|
$27.16 | ||
|
Unavailable |
|||
|
#4
WASHER, SPEEDOMETER GEAR
44808-107-720
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
PANEL SUB, FR. BRAKE *NH105* (MAT BLACK) (NOT AVAILABLE)
45010-437-000ZA
Superseded by 45010-437-010ZA
|
$106.97 | ||
|
Unavailable |
|||
|
#6
CAM, FR. BRAKE
45131-400-010
Superseded by 45131-400-020
|
$20.62 | ||
|
Unavailable |
|||
|
#6
CAM, FR. BRAKE
45131-400-020
|
$20.62 | ||
|
Unavailable |
|||
|
#7
DUST SEAL, BRAKE CAM
45134-250-000
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
INDICATOR, FR. BRAKE
45145-400-000
|
$6.31 | ||
|
Unavailable |
|||
|
#9
ARM, FR. BRAKE (NOT AVAILABLE)
45410-437-000
|
$10.20 | ||
|
Unavailable |
|||
|
#10
NUT, FR. BRAKE ARM SETTING
45436-001-000
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, FR. BRAKE CABLE
45454-360-010
|
$6.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, AXLE (12MM)
90305-169-000
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL SEAL (47X60X7)
91251-GK4-003
|
$11.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL SEAL (47X60X7) (ARAI)
91251-121-000
Superseded by 91251-GK4-003
|
$11.15 | ||
|
Unavailable |
|||
|
#13
OIL SEAL (47X60X7) (ARAI)
91251-121-003
Superseded by 91251-GK4-003
|
$11.15 | ||
|
Unavailable |
|||
|
#13
OIL SEAL (47X60X7)
91251-361-005
|
$15.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, OVAL (5X18)
93700-05018-0A
|
$0.53 | ||
|
Unavailable |
|||
|
#14
SCREW, OVAL (5X18)
93700-05018-1A
Superseded by 93700-05018-0A
|
$0.53 | ||
|
Unavailable |
|||
|
#15
PIN, COTTER (3.0X45)
94201-30250
Superseded by 94201-30450
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, COTTER (3.0X45)
94201-30300
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#15
PIN, COTTER (3.0X45)
94201-30400
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#15
PIN, COTTER (3.0X45)
94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE (6X35)
95700-06035-00
Superseded by 95701-06035-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X35)
95701-06035-00
|
$1.97 | ||
|
Unavailable |
|||
