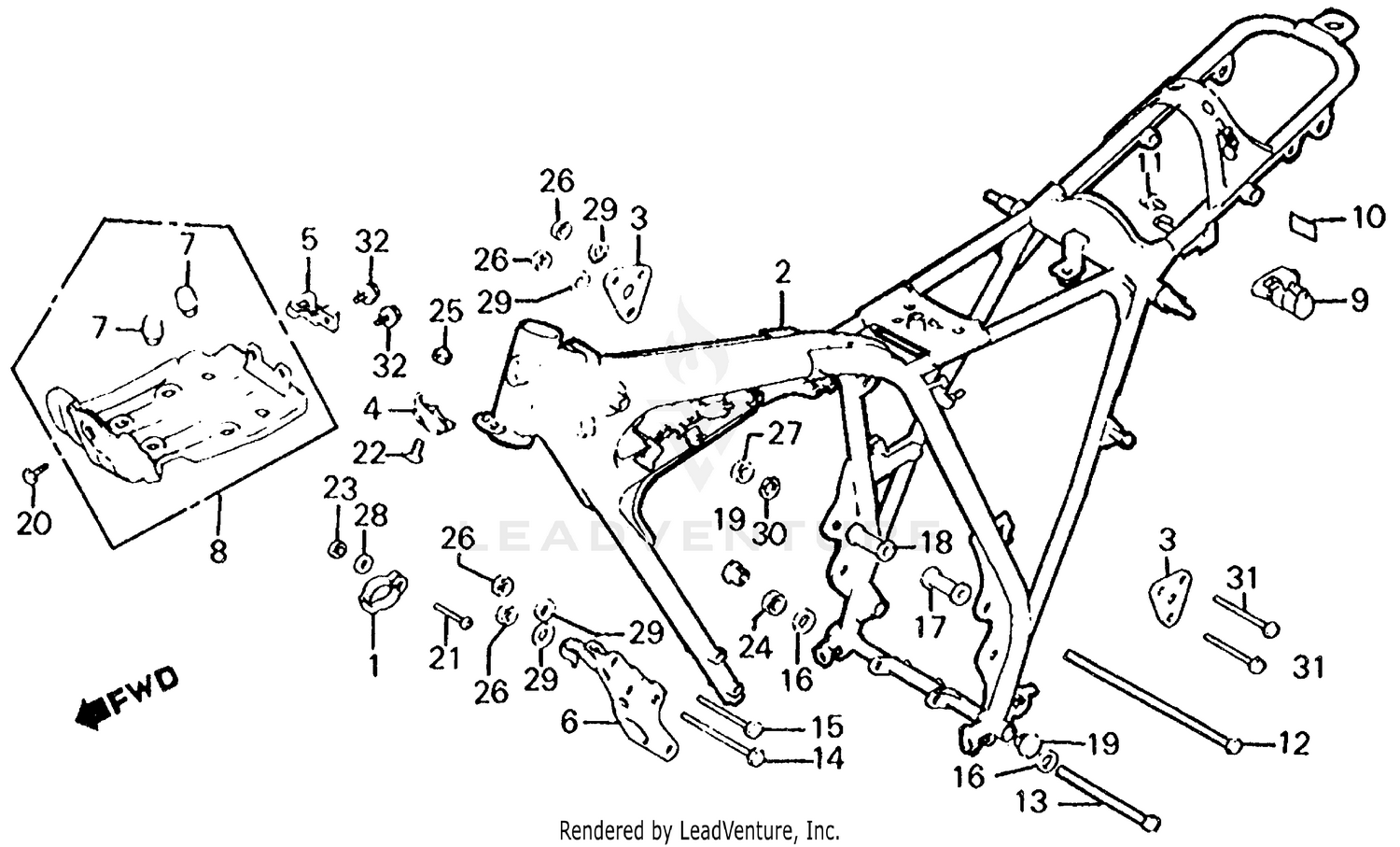

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP, CLUTCH CABLE (NOT AVAILABLE)
22878-355-000
|
$4.67 | ||
|
Unavailable |
|||
|
#2
FRAME *R110* (MONZA RED)
50100-KB1-670ZA
|
$1,267.04 | ||
|
Unavailable |
|||
|
#3
PLATE, ENGINE HANGER (UPPER) *R134* (FIGHTING RED)
50138-KB1-670ZB
Superseded by 50138-KB1-970ZA
|
$6.33 | ||
|
Unavailable |
|||
|
#3
PLATE, ENGINE HANGER (UPPER) *R134* (FIGHTING RED)
50138-KB1-970ZA
|
$6.33 | ||
|
Unavailable |
|||
|
#4
STAY, HANDLE LOCK
50141-KB1-670
|
$18.89 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP, DRAIN TUBE (NOT AVAILABLE)
50294-437-000
|
$4.00 | ||
|
Unavailable |
|||
|
#6
PLATE, FR. ENGINE HANGER *R110* (MONZA RED) (NOT AVAILABLE)
50351-437-000ZC
|
$30.03 | ||
|
Unavailable |
|||
|
#7
RUBBER A, STOPPER
50352-428-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, SKID (NOT AVAILABLE)
50355-427-771
|
$60.79 | ||
|
Unavailable |
|||
|
#9
HOLDER ASSY., HELMET
50710-382-671
|
$82.36 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT B, SPECIAL (6MM)
90106-428-000
Superseded by 90107-195-860
|
$3.59 | ||
|
Unavailable |
|||
|
#11
BOLT B, SPECIAL (6MM)
90107-195-860
|
$3.59 | ||
|
Unavailable |
|||
|
#11
BOLT B, SPECIAL (6MM)
90107-428-000
Superseded by 90107-195-860
|
$3.59 | ||
|
Unavailable |
|||
|
#12
BOLT, HEX. (10X220)
90135-437-000
|
$16.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEX. (10X115)
90155-437-000
|
$6.43 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEX. (8X85)
90157-437-000
|
$3.74 | ||
|
Unavailable |
|||
|
#15
BOLT, HEX. (8X50)
90159-437-000
|
$2.50 | ||
|
Unavailable |
|||
|
#16
WASHER, PLAIN (10MM)
90401-437-000
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR, L. ENGINE DISTANCE *R110* (MONZA RED)
90742-437-000ZC
|
$17.32 | ||
|
Unavailable |
|||
|
#18
COLLAR, R. ENGINE DISTANCE *R110* (MONZA RED)
90743-437-000ZC
|
$17.32 | ||
|
Unavailable |
|||
|
#19
PLUG, FRAME SIDE (NOT AVAILABLE)
50123-446-000
|
$2.26 | ||
|
Unavailable |
|||
|
#20
BOLT, HEX. (8X16)
92000-08016-0A
Superseded by 92101-08016-0A
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEX. (8X16)
92101-08016-0A
|
$1.55 | ||
|
Unavailable |
|||
|
#21
SCREW, PAN (5X20)
93500-05020-0A
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
SCREW, OVAL (6X16)
93700-06016-0A
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, HEX. (5MM)
94001-05000-0S
|
$2.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
NUT, HEX. (10MM)
94001-10000-0S
|
$1.52 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
NUT, CAP (6MM)
94021-06020
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, CAP (6MM)
94021-06020-0S
Superseded by 94021-06020
|
$1.90 | ||
|
Unavailable |
|||
|
#25
NUT, CAP (6MM)
94022-06020
Superseded by 94021-06020
|
$1.90 | ||
|
Unavailable |
|||
|
#26
NUT, HEX. (8MM)
94030-08000
|
$1.12 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, HEX. (10MM)
94030-10000
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLAIN (5MM)
94101-05000
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLAIN (8MM)
94101-08000
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
WASHER, PLAIN (10MM)
94101-10000
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, HEX. (8X65) (NOT AVAILABLE)
95300-08065-00
|
$0.80 | ||
|
Unavailable |
|||
|
#32
BOLT-WASHER (6X16)
93405-06016-08
|
$1.77 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT-WASHER (6X16)
93495-06016-08
Superseded by 93405-06016-08
|
$1.77 | ||
|
Unavailable |
|||
