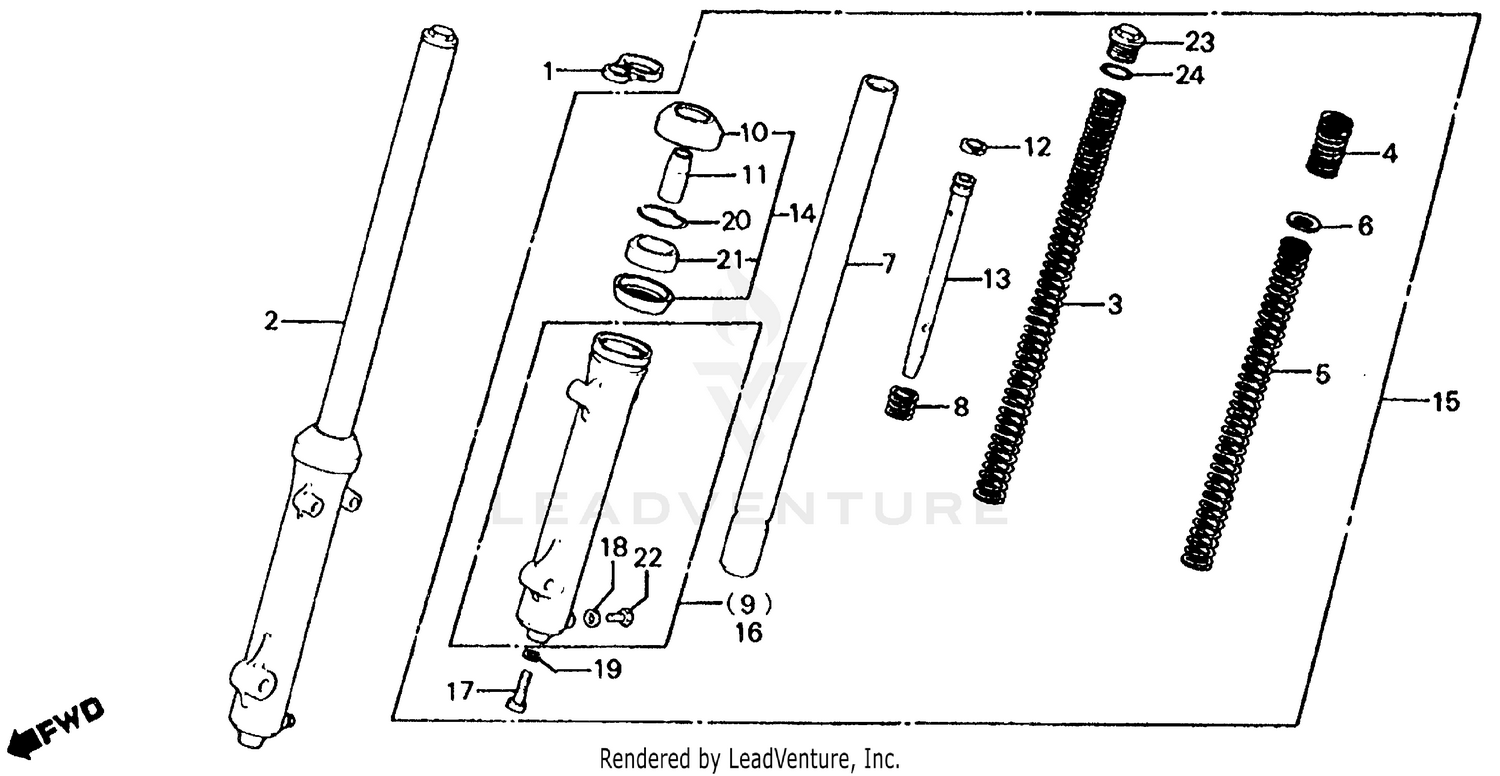

Front Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GUIDE, BRAKE CABLE (NOT AVAILABLE)
45468-399-620
|
$7.44 | ||
|
Unavailable |
|||
|
#2
SHOCK ABSORBER, R. FR. (SHOWA) (NOT AVAILABLE)
51400-437-711
|
$421.19 | ||
|
Unavailable |
|||
|
#4
SPRING A, FR. FORK (NOT AVAILABLE)
51401-437-711
|
$9.73 | ||
|
Unavailable |
|||
|
#5
SPRING B, FR. FORK (NOT AVAILABLE)
51402-437-711
|
$43.66 | ||
|
Unavailable |
|||
|
#6
PLATE, SPRING JOINT (NOT AVAILABLE)
51403-362-010
|
$1.82 | ||
|
Unavailable |
|||
|
#7
PIPE, FR. FORK
51410-437-003
|
$240.16 | ||
|
Unavailable |
|||
|
#8
SPRING, FR. FORK REBOUND
51412-331-770
|
$5.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
CASE, R. (LOWER) (SHOWA)
51421-437-013
|
$232.21 | ||
|
Unavailable |
|||
|
#10
DUST SEAL (SHOWA)
91254-437-003
|
$17.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIECE, OIL LOCKING
51432-388-003
Superseded by 51432-447-731
|
$33.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIECE, OIL LOCKING
51432-447-731
|
$33.22 | ||
|
Unavailable |
|||
|
#12
RING, PISTON
51437-373-781
|
$4.11 | ||
|
Unavailable |
|||
|
#13
PIPE, SEAT
51440-437-003
|
$48.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHOCK ABSORBER ASSY., L. FR. (SHOWA) (NOT AVAILABLE)
51500-437-711
|
$421.19 | ||
|
Unavailable |
|||
|
#16
CASE, L. (LOWER) (SHOWA)
51521-437-013
|
$232.21 | ||
|
Unavailable |
|||
|
#17
BOLT, SOCKET (8MM) (SHOWA)
90116-283-010
Superseded by 90116-383-721
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SOCKET (8MM) (SHOWA)
90116-383-721
|
$6.44 | ||
|
Unavailable |
|||
|
#18
GASKET, FR. FORK DRAIN VALVE
90543-273-000
|
$2.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
WASHER, SPECIAL (8MM)
90544-283-000
|
$3.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
RING, OIL SEAL STOP
90601-354-000
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL (31X43X10)
91255-GAA-003
|
$24.24 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL (31X43X10)
91255-446-013
Superseded by 91255-GAA-003
|
$24.24 | ||
|
Unavailable |
|||
|
#22
BOLT, HEX. (6X8)
92000-06008
Superseded by 92101-06008-0A
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEX. (6X8)
92000-06008-0A
Superseded by 92101-06008-0A
|
$1.43 | ||
|
Unavailable |
|||
|
#22
BOLT, HEX. (6X8)
92101-06008-0A
|
$1.43 | ||
|
Unavailable |
|||
|
#23
BOLT, FR. FORK (NOT AVAILABLE)
90127-437-770
|
$11.54 | ||
|
Unavailable |
|||
|
#24
O-RING (23X2.8)
94608-50000
|
$1.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
