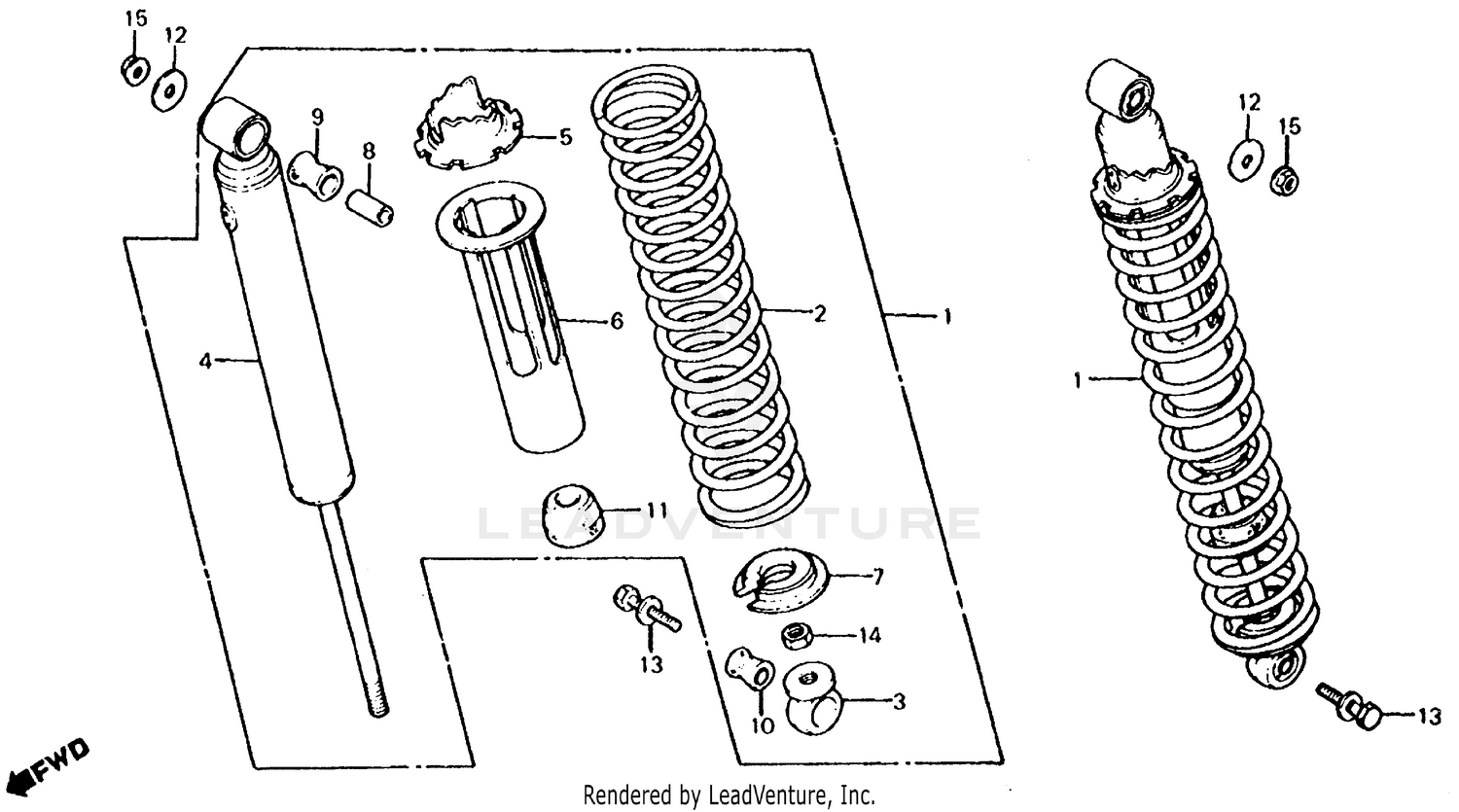

Rear Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ABSORBER ASSY. *NH1* (BLACK)
52400-KB1-601ZF
|
$228.13 | ||
|
Unavailable |
|||
|
#1
SHOCK ABSORBER ASSY. *NH1* (BLACK)
52400-437-712
Superseded by 52400-KB1-601ZF
|
$228.13 | ||
|
Unavailable |
|||
|
#2
SPRING, RR. SHOCK ABSORBER *NH1D* (BLACK) (NOT AVAILABLE)
52401-437-770
|
$53.44 | ||
|
Unavailable |
|||
|
#3
JOINT (UPPER) (NOT AVAILABLE)
52403-391-671
|
$14.32 | ||
|
Unavailable |
|||
|
#4
DAMPER, RR.
52410-437-711
Superseded by 52410-437-712
|
$161.85 | ||
|
Unavailable |
|||
|
#4
DAMPER, RR.
52410-437-712
|
$161.85 | ||
|
Unavailable |
|||
|
#5
ADJUSTER, SPRING (NOT AVAILABLE)
52422-410-003
|
$16.88 | ||
|
Unavailable |
|||
|
#6
GUIDE, SPRING
52458-428-003
|
$11.60 | ||
|
Unavailable |
|||
|
#7
SEAT, SPRING (UPPER) (NOT AVAILABLE)
52459-428-003
|
$16.88 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, RR. SHOCK ABSORBER RUBBER BUSH
52486-056-000
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER B, JOINT
52488-331-003
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSH, SHOCK ABSORBER
52489-361-000
|
$7.03 | ||
|
Unavailable |
|||
|
#11
RUBBER, STOPPER (NOT AVAILABLE)
52517-437-000
|
$4.65 | ||
|
Unavailable |
|||
|
#12
WASHER (10.3MM)
90521-427-770
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT-WASHER (10X40)
93401-10040-00
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT-WASHER (10X40)
93481-10040
Superseded by 93401-10040-00
|
$2.46 | ||
|
Unavailable |
|||
|
#13
BOLT-WASHER (10X40)
93491-10040-00
Superseded by 93401-10040-00
|
$2.46 | ||
|
Unavailable |
|||
|
#14
NUT, HEX. (10MM)
94002-10000-0S
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, FLANGE (10MM)
94050-10000
|
$1.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
