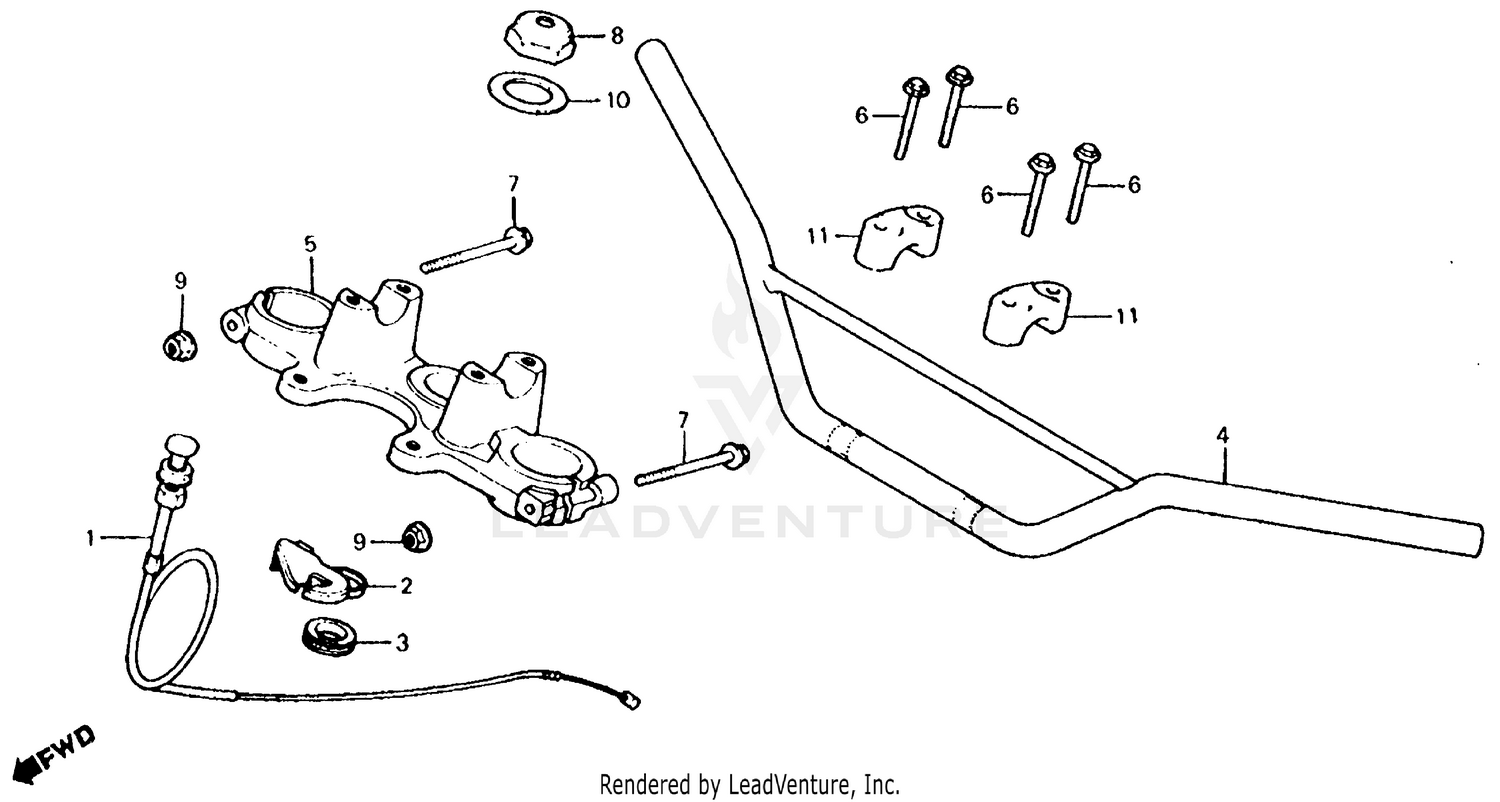

Handlebar + Top Bridge 80-84 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CABLE, CHOKE
17950-436-670
|
$29.57 | ||
|
Unavailable |
|||
|
#1
CABLE, CHOKE
17950-437-000
Superseded by 17950-436-670
|
$29.57 | ||
|
Unavailable |
|||
|
#2
STAY, CHOKE CABLE (NOT AVAILABLE)
17951-437-000
|
$9.78 | ||
|
Unavailable |
|||
|
#3
GUIDE, CABLE (INNER)
45466-329-000
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
HANDLEBAR
53100-437-000
|
$87.79 | ||
|
Unavailable |
|||
|
#5
BRIDGE, FORK TOP (NOT AVAILABLE)
53230-436-000
|
$106.17 | ||
|
Unavailable |
|||
|
#6
BOLT, FLANGE (8X36)
90111-362-000
|
$6.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BOLT, FLANGE (7X54)
90155-428-870
|
$3.03 | ||
|
Unavailable |
|||
|
#8
NUT, STEERING STEM
90304-355-010
|
$16.14 | ||
|
Unavailable |
|||
|
#8
NUT, STEERING STEM
90305-427-770
Superseded by 90304-355-010
|
$16.14 | ||
|
Unavailable |
|||
|
#9
NUT, FLANGE (7MM)
90355-427-770
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, STEERING STEM
90503-011-000
Superseded by 90503-051-870
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, STEERING STEM
90503-051-870
|
$3.24 | ||
|
Unavailable |
|||
|
#11
HOLDER B2, HANDLEBAR (UPPER)
95014-22200
|
$14.71 | ||
|
Available to order. Add to View Price |
|||
