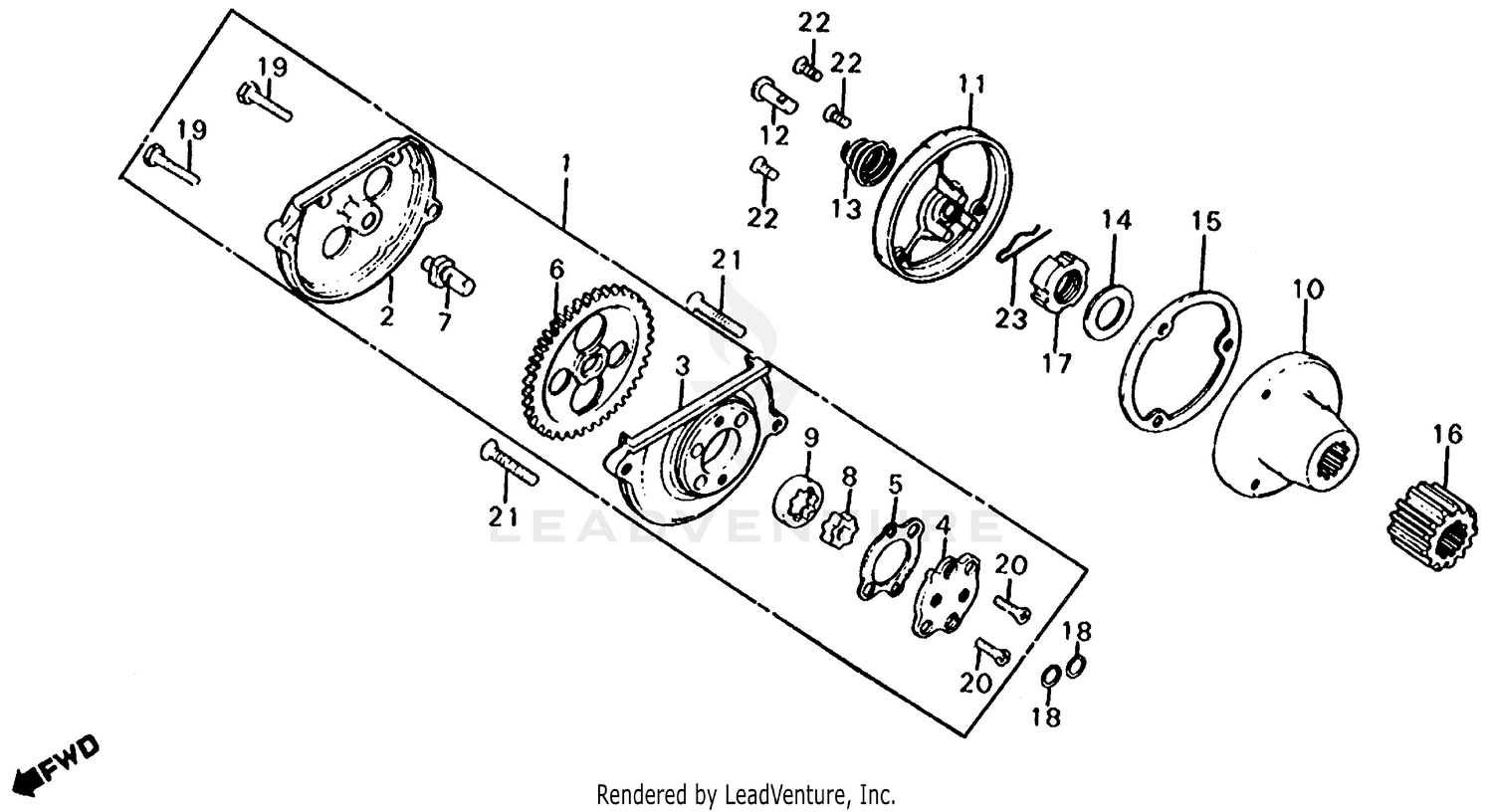

Oil Pump + Oil Filter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY., OIL
15100-KB5-721
|
$219.49 | ||
|
Available to order. Add to View Price |
|||
|
#1
PUMP ASSY., OIL
15100-437-671
Superseded by 15100-KB5-721
|
$219.49 | ||
|
Unavailable |
|||
|
#1
PUMP ASSY., OIL
15100-437-672
Superseded by 15100-KB5-721
|
$219.49 | ||
|
Unavailable |
|||
|
#2
COVER, OIL PUMP GEAR
15106-330-000
Superseded by 15106-330-010
|
$29.02 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, OIL PUMP GEAR
15106-330-010
|
$29.02 | ||
|
Unavailable |
|||
|
#3
BODY, OIL PUMP
15111-437-000
|
$39.25 | ||
|
Unavailable |
|||
|
#4
PLATE, OIL PUMP
15116-107-020
|
$16.44 | ||
|
Unavailable |
|||
|
#5
GASKET, OIL PUMP
15126-107-020
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, OIL PUMP DRIVE (37T)
15131-KEH-900
|
$48.23 | ||
|
Unavailable |
|||
|
#6
GEAR, OIL PUMP DRIVE (37T)
15131-437-010
Superseded by 15131-KEH-900
|
$48.23 | ||
|
Unavailable |
|||
|
#7
SHAFT, OIL PUMP (NOT AVAILABLE)
15136-383-000
|
$15.35 | ||
|
Unavailable |
|||
|
#8
ROTOR, OIL PUMP (INNER) (YAMADA)
15331-921-003
|
$18.67 | ||
|
Unavailable |
|||
|
#9
ROTOR, OIL PUMP (OUTER) (YAMADA)
15332-921-003
|
$30.61 | ||
|
Unavailable |
|||
|
#10
ROTOR, OIL FILTER
15430-440-010
Superseded by 15430-440-030
|
$73.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROTOR, OIL FILTER
15430-440-020
Superseded by 15430-440-030
|
$73.76 | ||
|
Unavailable |
|||
|
#10
ROTOR, OIL FILTER
15430-440-030
|
$73.76 | ||
|
Unavailable |
|||
|
#11
CAP, OIL FILTER ROTOR
15436-107-000
|
$45.13 | ||
|
Available to order. Add to View Price |
|||
|
#12
THROUGH, OIL
15441-KCS-650
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
THROUGH, OIL
15441-107-000
Superseded by 15441-KCS-650
|
$7.73 | ||
|
Unavailable |
|||
|
#13
SPRING, OIL THROUGH
15446-107-000
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, OIL FILTER ROTOR LOCKING
15451-107-000
|
$5.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
GSKT, OIL FILTER CAP
15459-KT0-710
Superseded by 15459-K70-630
|
$4.34 | ||
|
Available to order. Add to View Price |
|||
|
#15
GSKT, OIL FILTER CAP
15459-107-000
Superseded by 15459-K70-630
|
$4.34 | ||
|
Unavailable |
|||
|
#15
GSKT, OIL FILTER CAP
15459-107-306
Superseded by 15459-K70-630
|
$4.34 | ||
|
Unavailable |
|||
|
#16
GEAR, PRIMARY DRIVE (21T)
23121-437-010
|
$69.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, LOCK (16MM)
90231-KCS-651
|
$5.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NUT, LOCK (16MM)
90231-200-010
Superseded by 90231-KCS-651
|
$5.27 | ||
|
Unavailable |
|||
|
#18
O-RING (9.4X2.4)
91304-KK3-830
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (9.4X2.4)
91304-107-000
Superseded by 91304-KK3-830
|
$2.53 | ||
|
Unavailable |
|||
|
#19
BOLT, HEX. (5X20)
92000-05020-0A
Superseded by 92101-05020-0A
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEX. (5X20)
92101-05020-0A
|
$1.22 | ||
|
Unavailable |
|||
|
#19
BOLT, HEX. (5X20)
92301-05020-0A
Superseded by 92101-05020-0A
|
$1.22 | ||
|
Unavailable |
|||
|
#20
SCREW, FLAT (4X12)
93600-04012-1A
|
$0.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SCREW, FLAT (6X30)
90101-440-000
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, OVAL (5X12)
93700-05012-0A
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, LOCK (8MM)
94251-08000
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
