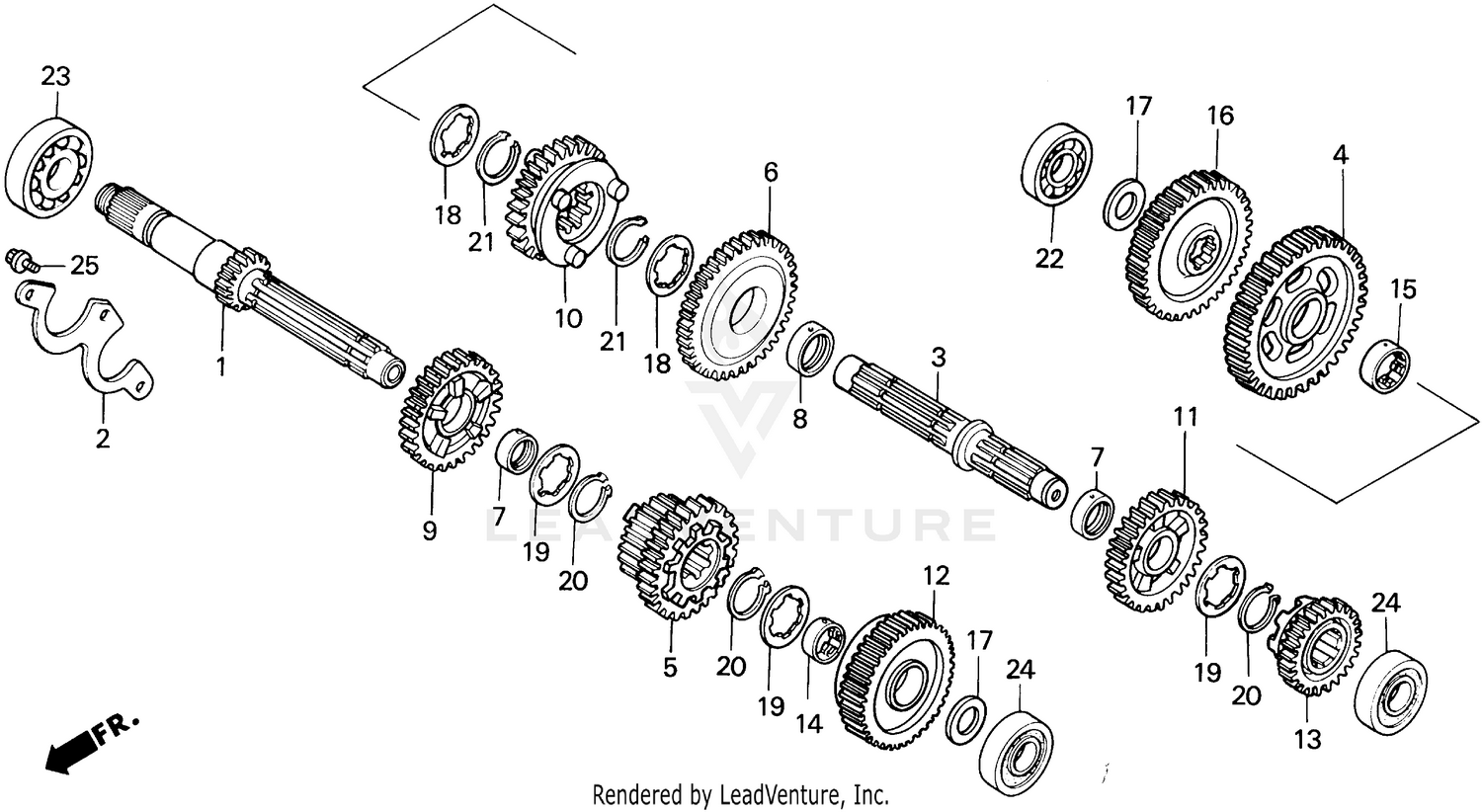

Vt1100c2transmission 95-97 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT (SOURCE: VINTAGE PARTS INC.)
23211-MAH-000
|
$197.32 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, BEARING
23212-MK7-670
|
$15.90 | ||
|
Available to order. Add to View Price |
|||
|
#3
COUNTERSHAFT (NOT AVAILABLE)
23220-MAA-610
|
$121.18 | ||
|
Unavailable |
|||
|
#4
GEAR, COUNTERSHAFT LOW (38T) (NOT AVAILABLE)
23421-MAA-610
|
$147.44 | ||
|
Unavailable |
|||
|
#5
GEAR, MAINSHAFT SECOND & FOURTH (23T/36T) (NOT AVAILABLE)
23431-MAA-610
|
$158.16 | ||
|
Unavailable |
|||
|
#6
GEAR, COUNTERSHAFT SECOND (32T) (NOT AVAILABLE)
23441-MAA-610
|
$121.84 | ||
|
Unavailable |
|||
|
#7
COLLAR (28MM)
23442-ML7-000
|
$31.91 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR (30X11.2)
23442-MS2-610
|
$27.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, MAINSHAFT THIRD (27T)
23451-MAA-610
|
$182.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, COUNTERSHAFT THIRD (28T) (NOT AVAILABLE)
23461-MAA-610
Superseded by 23461-MAA-611
|
$133.25 | ||
|
Unavailable |
|||
|
#11
GEAR, COUNTERSHAFT FOURTH (32T)
23481-MAA-610
|
$157.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, MAINSHAFT FIFTH (30T) (NOT AVAILABLE)
23491-MAA-610
|
$130.88 | ||
|
Unavailable |
|||
|
#13
GEAR, COUNTERSHAFT FIFTH (NOT AVAILABLE)
23501-MAH-000
|
$147.55 | ||
|
Unavailable |
|||
|
#14
COLLAR, SPLINE (28X26X17) (NOT AVAILABLE)
23512-MM8-000
|
$18.35 | ||
|
Unavailable |
|||
|
#15
COLLAR, SPLINE (30X28X11) (NOT AVAILABLE)
23514-MM8-000
|
$17.67 | ||
|
Unavailable |
|||
|
#16
GEAR, FINAL DRIVE (36T) (NOT AVAILABLE)
23725-MM8-000
|
$124.55 | ||
|
Unavailable |
|||
|
#17
WASHER (20X37X2)
90404-KK0-000
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, THRUST (30MM) (SOURCE: VINTAGE PARTS INC.)
90451-MG8-000
|
$4.24 | ||
|
Unavailable |
|||
|
#19
WASHER, THRUST (28MM)
90451-422-000
|
$9.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP (28MM)
90601-422-000
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIRCLIP (30MM)
90604-MG8-000
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, RADIAL BALL (20X52X15) (TOYO)
91003-MG8-003
|
$45.78 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, RADIAL BALL (305/28) (TOYO)
91004-MG8-003
|
$38.51 | ||
|
Unavailable |
|||
|
#24
BEARING, SEALED BALL (20X52X15) (TOYO)
91005-MG8-003
|
$33.69 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
