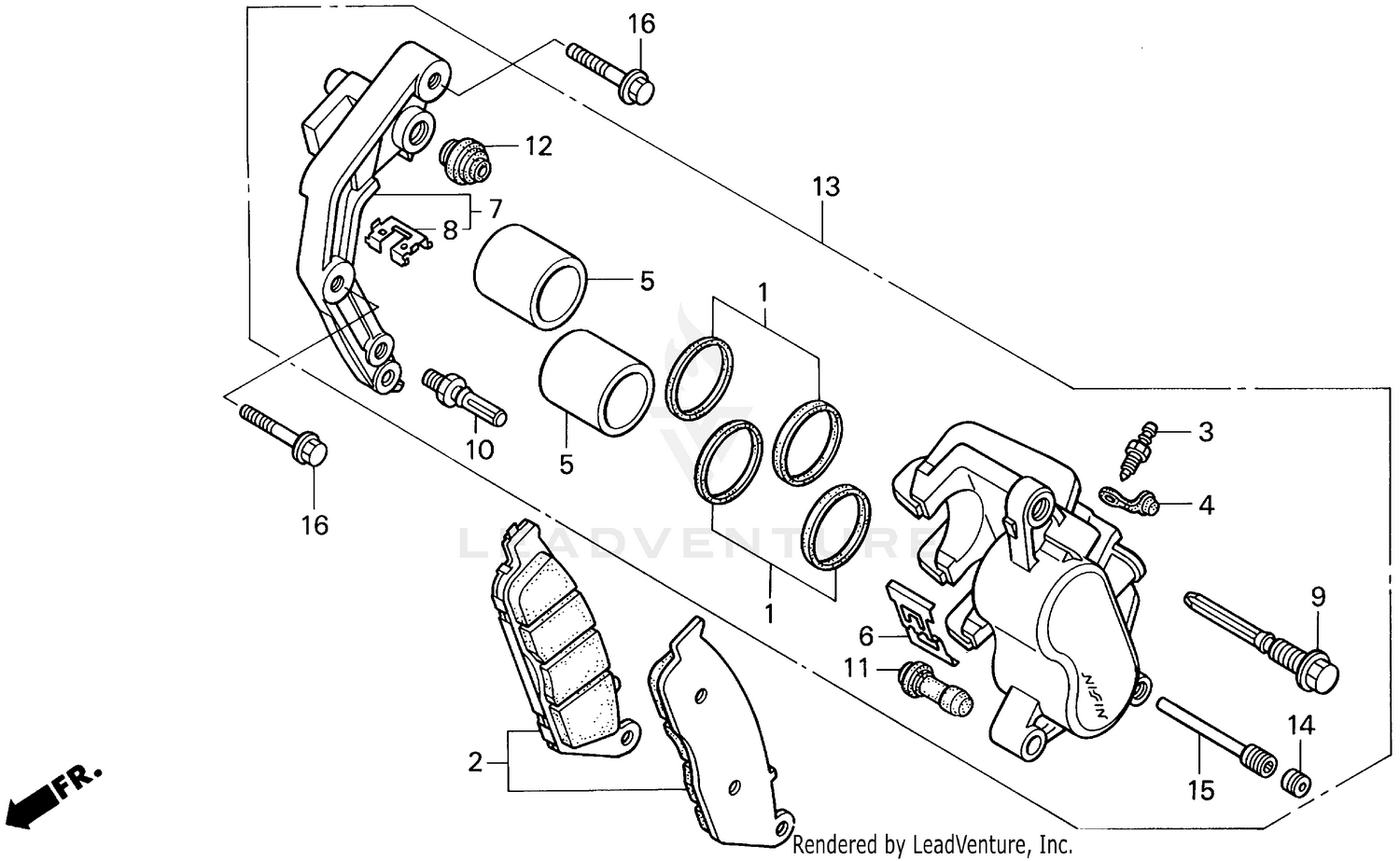

Vt1100c2front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL SET, PISTON
06431-MA3-405
|
$9.21 | ||
|
Available to order. Add to View Price |
|||
|
#2
PAD SET, FR.
06455-MAH-405
Superseded by 06455-MBK-752
|
$65.38 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, BLEEDER (NISSIN)
43352-HC5-971
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
PISTON
45107-ML4-006
|
$45.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, PAD (NISSIN)
45108-ML7-922
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, L. FR.
45110-MAH-672
|
$150.31 | ||
|
Unavailable |
|||
|
#8
RETAINER
45112-MT4-006
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, PIN
45131-MA3-006
|
$21.31 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, PIN
45131-166-016
|
$9.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOOT, PIN BUSH (NISSIN)
45132-166-016
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOOT B
45133-MA3-006
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CALIPER SUB-ASSY., L. FR. BRAKE (NISSIN)
45150-MAH-315
|
$590.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG, PIN
45203-MG3-016
|
$6.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PIN, HANGER
45215-ML7-922
|
$12.93 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, SPECIAL FLANGE (8X32)
90101-MZ8-000
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
