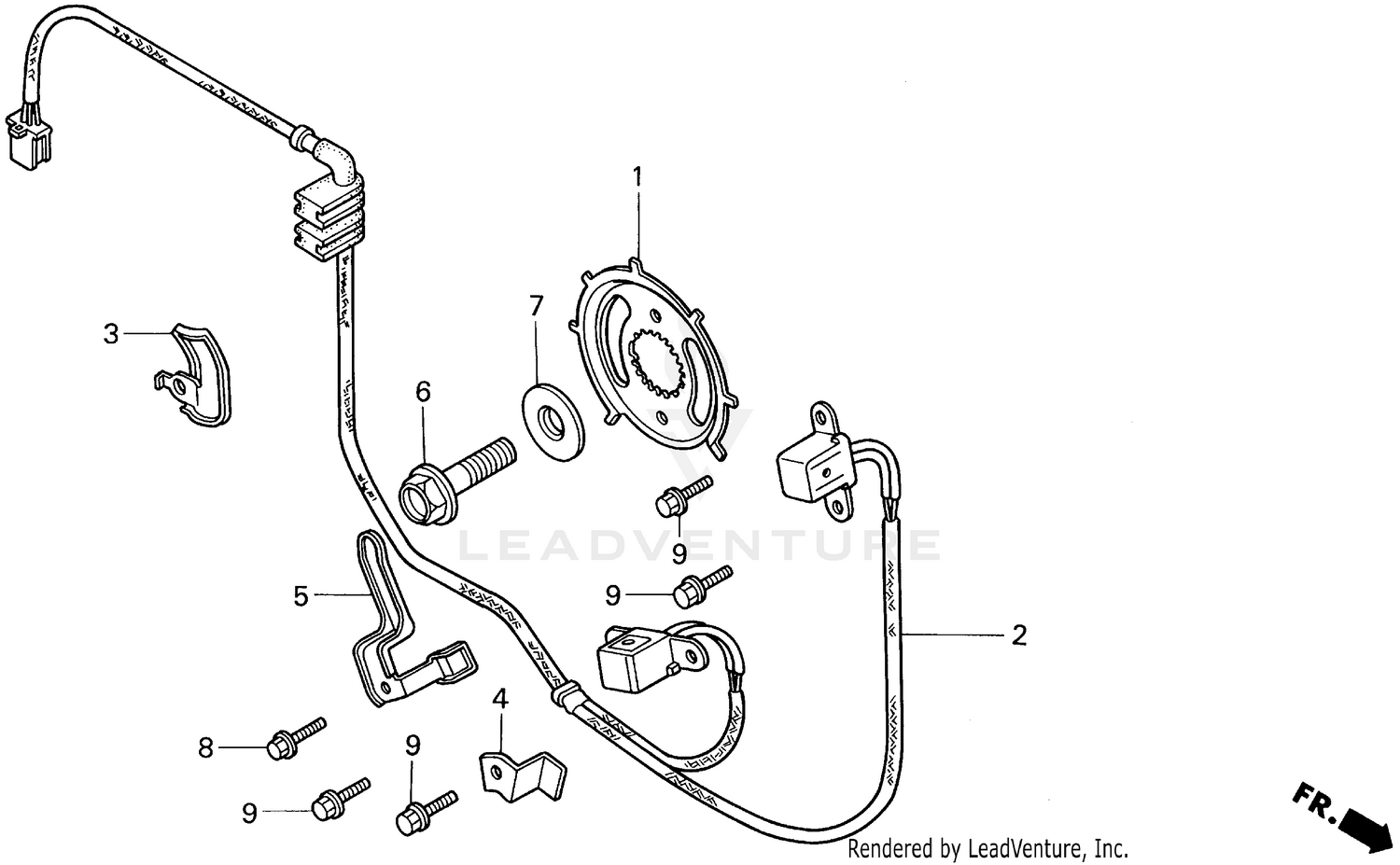

11ooc/c2ignition Pulse Generator 95-96 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PLATE, PULSER (NOT AVAILABLE)
30211-MAH-000
|
$16.90 | ||
|
Unavailable |
|||
|
#2
IGNITION PULSE GENERATOR ASSY. (TOYO) (NOT AVAILABLE)
30300-MM8-880
Superseded by 30300-MM8-881
|
$117.60 | ||
|
Unavailable |
|||
|
#3
CLAMP A, PULSE
32962-MG8-000
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP B, PULSE (SOURCE: VINTAGE PARTS INC.)
32963-MM8-000
|
$3.43 | ||
|
Unavailable |
|||
|
#5
CLAMP C, PULSE
32964-MM8-000
|
$7.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE (12X35)
90025-MK7-670
|
$14.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER (12.5X34X5)
90402-PC6-000
|
$23.28 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X20)
95701-06020-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
