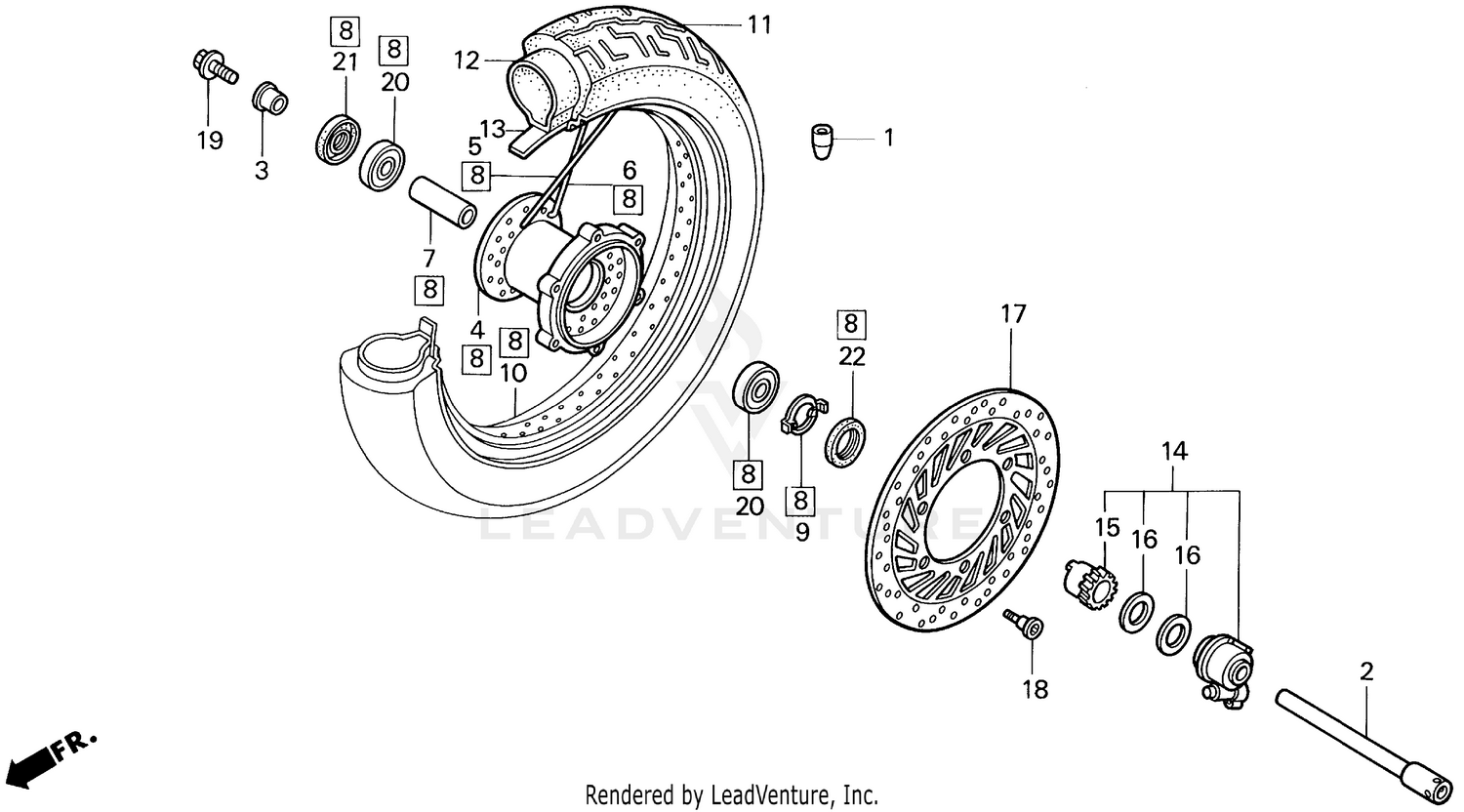

Vt1100c2front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WEIGHT, BALANCE (20G)
42707-MR6-670
Superseded by 42705-MEG-003
|
$10.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1
WEIGHT, BALANCE (15G)
42708-MR1-670
Superseded by 42704-MEG-003
|
$10.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
AXLE, FR. WHEEL
44301-MAH-671
|
$74.98 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, FR. WHEEL SIDE
44311-MM8-000
|
$23.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
HUB, FR. WHEEL (SOURCE: VINTAGE PARTS INC.)
44601-MAH-000
|
$283.18 | ||
|
Unavailable |
|||
|
#5
SPOKE SET, FR. (INNER)
44604-MAH-405
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPOKE SET, FR. (OUTER)
44605-MAH-405
|
$4.39 | ||
|
Unavailable |
|||
|
#7
COLLAR, FR. AXLE DISTANCE
44620-MAH-000
|
$23.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
WHEEL SUB-ASSY., FR. (NOT AVAILABLE)
44650-MAH-305
|
$642.84 | ||
|
Unavailable |
|||
|
#9
RETAINER, GEAR BOX
44680-ML7-000
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#10
RIM, FR. WHEEL (NOT AVAILABLE)
44701-MAH-003
|
$245.25 | ||
|
Unavailable |
|||
|
#11
TIRE, FR. (120/90-18) (65H) (BLACK WALL) (DUNLOP) (NOT AVAILABLE)
44711-MAH-672
|
$138.48 | ||
|
Unavailable |
|||
|
#12
TUBE, TIRE (120/90-18) (DUNLOP) (NOT AVAILABLE)
44712-MAH-671
|
$14.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
FLAP, TIRE (30-18) (DUNLOP) (NOT AVAILABLE)
44713-MAH-671
|
$5.17 | ||
|
Unavailable |
|||
|
#14
BOX ASSY., SPEEDOMETER GEAR
44800-MM8-003
|
$119.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, SPEEDOMETER
44806-MM8-003
|
$36.96 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPEEDOMETER GEAR
44809-ML7-003
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#17
DISK, FR. BRAKE
45251-MS9-750
|
$361.47 | ||
|
Unavailable |
|||
|
#18
BOLT, DISK (8X24) (TSUKIBOSHI)
90105-MV9-003
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FR. AXLE
90305-ML7-000
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, RADIAL BALL (6004UU)
91054-MAM-003
|
$39.07 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, RADIAL BALL (6004UU)
91054-MN8-741
Superseded by 91054-MAM-003
|
$39.07 | ||
|
Unavailable |
|||
|
#21
DUST SEAL (28X42X8) (NOK)
91257-KA3-711
Superseded by 91257-MAY-003
|
$11.11 | ||
|
Available to order. Add to View Price |
|||
|
#21
DUST SEAL (28X42X8) (NOK)
91257-KA3-712
Superseded by 91257-MAY-003
|
$11.11 | ||
|
Unavailable |
|||
|
#21
DUST SEAL (28X42X8) (NOK)
91257-MAY-003
|
$11.11 | ||
|
Unavailable |
|||
|
#22
DUST SEAL (45X55X5) (ARAI)
91258-ML7-003
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
DUST SEAL (45X55X5) (ARAI)
91258-ML7-004
Superseded by 91258-ML7-003
|
$10.49 | ||
|
Unavailable |
|||
