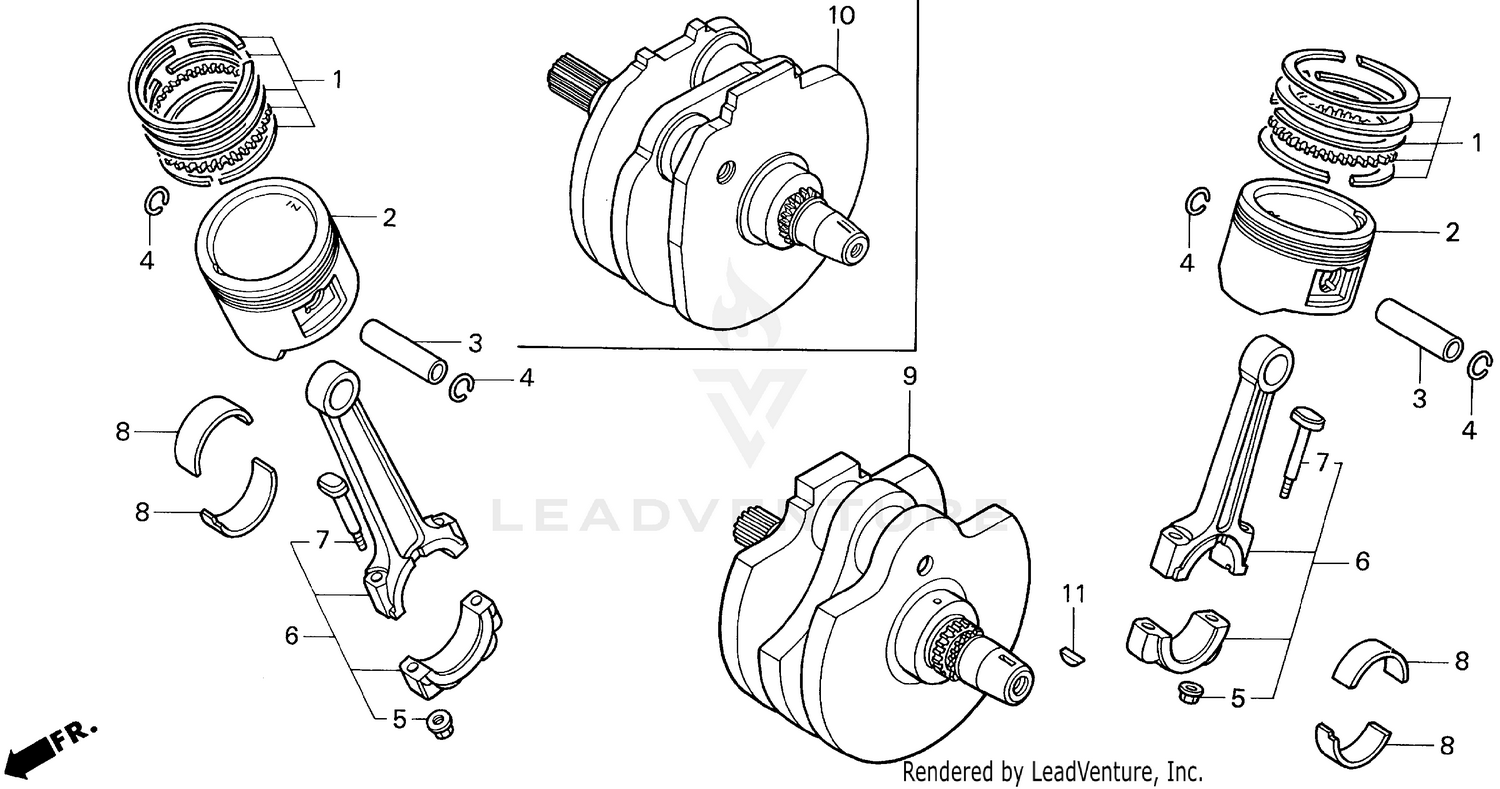

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RING SET, PISTON (STD)
13011-MG8-305
Superseded by 13011-MG8-315
|
$100.15 | ||
|
Available to order. Add to View Price |
|||
|
#1
RING SET, PISTON (STD)
13011-MG8-315
|
$100.15 | ||
|
Unavailable |
|||
|
#1
RING SET, PISTON (OVER SIZE) (0.25)
13012-MG8-305
Superseded by 13012-MG8-315
|
$107.42 | ||
|
Available to order. Add to View Price |
|||
|
#1
RING SET, PISTON (OVER SIZE) (0.25)
13012-MG8-315
|
$107.42 | ||
|
Unavailable |
|||
|
#1
RING SET, PISTON (OVER SIZE) (0.50)
13013-MG8-305
Superseded by 13013-MG8-315
|
$101.22 | ||
|
Unavailable |
|||
|
#1
RING SET, PISTON (OVER SIZE) (0.50)
13013-MG8-315
|
$101.22 | ||
|
Unavailable |
|||
|
#2
PISTON (STD)
13101-MAH-000
|
$175.20 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON (O.S. 0.25)
13102-MAH-305
|
$183.31 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON (O.S. 0.50)
13103-MAH-305
|
$124.96 | ||
|
Unavailable |
|||
|
#3
PIN, PISTON
13111-MG8-000
|
$33.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLIP, PISTON PIN (22MM)
13112-MC7-000
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, CONNECTING ROD
13205-MG8-000
|
$5.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD ASSY. C, CONNECTING
13206-MG8-000
Superseded by 13208-MG8-000
|
$256.43 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD ASSY. C, CONNECTING
13207-MG8-000
Superseded by 13208-MG8-000
|
$256.43 | ||
|
Unavailable |
|||
|
#6
ROD ASSY. C, CONNECTING
13208-MG8-000
|
$256.43 | ||
|
Unavailable |
|||
|
#6
ROD ASSY. C, CONNECTING
13209-MG8-000
Superseded by 13208-MG8-000
|
$256.43 | ||
|
Unavailable |
|||
|
#6
ROD ASSY. C, CONNECTING
13210-MG8-000
Superseded by 13208-MG8-000
|
$256.43 | ||
|
Unavailable |
|||
|
#7
BOLT, CONNECTING ROD
13213-MG8-000
|
$9.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING A, CONNECTING ROD (GREEN)
13218-MG8-003
|
$17.24 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING B, CONNECTING ROD (YELLOW)
13219-MG8-003
|
$17.24 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING C, CONNECTING ROD (PINK)
13220-MG8-003
|
$17.24 | ||
|
Available to order. Add to View Price |
|||
|
#9
CRANKSHAFT (NOT AVAILABLE)
13300-MAH-000
|
$865.00 | ||
|
Unavailable |
|||
|
#11
KEY, WOODRUFF (25X14)
90741-413-000
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
