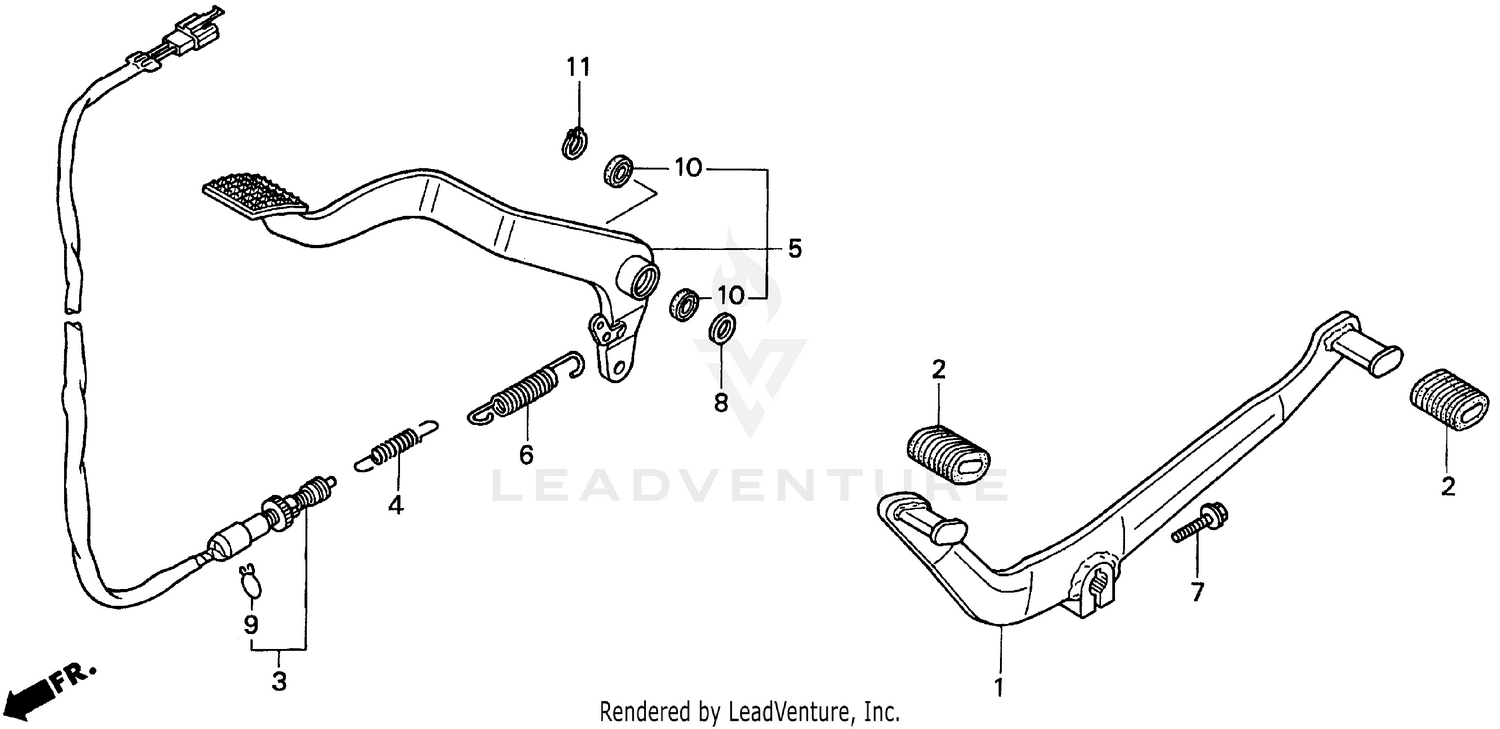

Vt1100c2pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, GEARSHIFT
24710-MAH-000
|
$92.39 | ||
|
Unavailable |
|||
|
#2
RUBBER, CHANGE PEDAL
24781-371-000
|
$6.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
SW ASSY,REAR STOP
35350-MAH-003
Superseded by 35350-GBZ-700
|
$15.76 | ||
|
Unavailable |
|||
|
#4
SPRING, STOP SWITCH
35357-ME9-000
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#5
PEDAL ASSY., BRAKE
46500-MAH-000
|
$87.85 | ||
|
Unavailable |
|||
|
#6
SPRING, BRAKE PEDAL
46511-KT0-670
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE (6X20)
90118-KY1-000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLAIN (15MM)
90510-KY1-000
|
$3.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CLIP, SWITCH COVER
90601-KAF-003
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
DUST SEAL (15X20X3)
91251-MT4-000
Superseded by 91251-MT4-003
|
$4.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
DUST SEAL (15X20X3)
91251-MT4-003
|
$4.78 | ||
|
Unavailable |
|||
|
#11
CIRCLIP (OUTER) (15MM)
94511-15000
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
