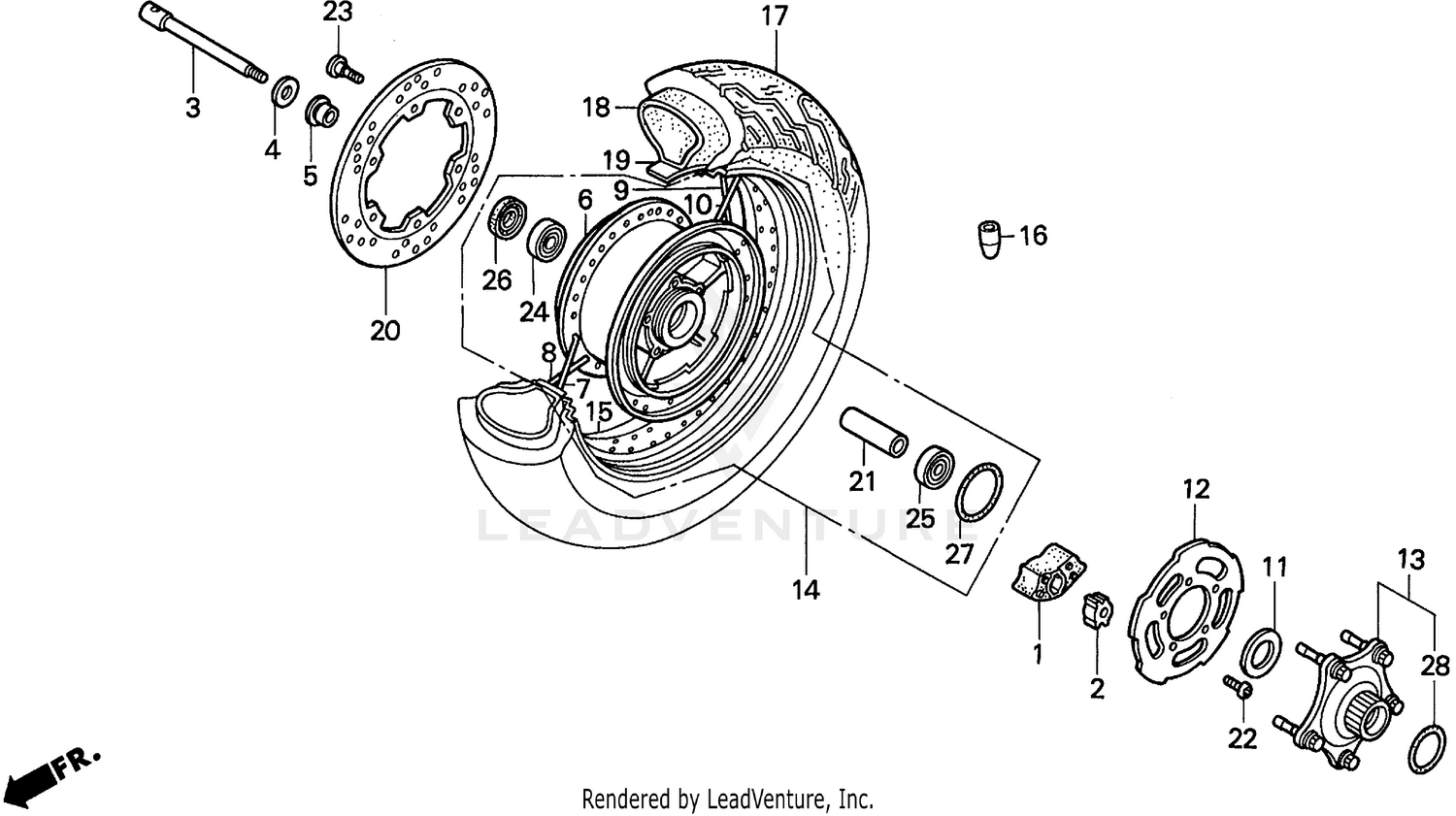

Vt1100c2rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER, RR. WHEEL
41241-MT8-003
|
$30.87 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIECE, DAMPER WHEEL
41242-MR5-000
|
$21.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
AXLE, RR. WHEEL
42301-MM8-000
|
$67.30 | ||
|
Unavailable |
|||
|
#4
SPACER, RR. BRAKE SIDE
42312-463-000
|
$15.31 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, RR. BRAKE PANEL SIDE
42313-422-000
|
$43.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
HUB, RR. WHEEL (NOT AVAILABLE)
42601-MAH-000
|
$567.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPOKE SET, R. RR. (INNER)
42604-MAH-405
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPOKE SET, R. RR. (OUTER)
42605-MAH-405
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPOKE SET, L. RR. (INNER)
42606-MAH-405
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPOKE SET, L. RR. (OUTER)
42607-MAH-405
|
$4.45 | ||
|
Unavailable |
|||
|
#11
WASHER, THRUST
42616-MT3-000
|
$8.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER, DAMPER
42617-MT8-000
|
$49.09 | ||
|
Available to order. Add to View Price |
|||
|
#13
FLANGE SET, FINAL DRIVEN
42630-MAH-305
|
$219.47 | ||
|
Available to order. Add to View Price |
|||
|
#14
WHEEL SUB-ASSY., RR. (NOT AVAILABLE)
42650-MAH-305
|
$982.91 | ||
|
Unavailable |
|||
|
#15
RIM, RR. WHEEL
42701-MAH-003
Superseded by 42701-MAH-013
|
$197.85 | ||
|
Available to order. Add to View Price |
|||
|
#15
RIM, RR. WHEEL
42701-MAH-013
|
$197.85 | ||
|
Unavailable |
|||
|
#16
WEIGHT, BALANCE (20G)
42707-MR6-670
Superseded by 42705-MEG-003
|
$10.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WEIGHT, BALANCE (15G)
42708-MR1-670
Superseded by 42704-MEG-003
|
$10.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
TIRE, RR. (170/80-15) (DUNLOP)
42711-MAH-A41
Superseded by 42711-MM8-877
|
$276.96 | ||
|
Unavailable |
|||
|
#17
TIRE, RR. (170/80-15) (DUNLOP)
42711-MAH-671
Superseded by 42711-MM8-877
|
$276.96 | ||
|
Unavailable |
|||
|
#17
TIRE, RR. (170/80-15) (DUNLOP)
42711-MM8-877
|
$276.96 | ||
|
Unavailable |
|||
|
#18
TUBE, TIRE (DUNLOP)
42712-MR1-672
|
$50.22 | ||
|
Available to order. Add to View Price |
|||
|
#19
FLAP, TIRE (45-15) (DUNLOP)
42713-MR1-672
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
DISK, RR. BRAKE
43251-MAZ-000
Superseded by 43251-MBR-J11
|
$427.16 | ||
|
Available to order. Add to View Price |
|||
|
#20
DISK, RR. BRAKE
43251-MBR-J11
|
$427.16 | ||
|
Unavailable |
|||
|
#20
DISK, RR. BRAKE
43351-MS2-000
Superseded by 43251-MBR-J11
|
$427.16 | ||
|
Unavailable |
|||
|
#21
COLLAR, FR. AXLE DISTANCE
44620-MT3-000
|
$20.85 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, DISK (6X17) (SAGA)
90105-KV3-851
Superseded by 90106-MT3-003
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, DISK (6X17) (SAGA)
90106-MT3-003
|
$4.89 | ||
|
Unavailable |
|||
|
#23
BOLT, DISK (8X24) (TSUKIBOSHI)
90105-MV9-003
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, RADIAL BALL (6204UU)
91052-MAE-004
|
$33.33 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, RADIAL BALL (20X47X20.6) (NTN)
91053-MN5-003
|
$90.78 | ||
|
Available to order. Add to View Price |
|||
|
#26
DUST SEAL (30X47X8) (NOK)
91253-443-761
Superseded by 91253-443-762
|
$14.69 | ||
|
Available to order. Add to View Price |
|||
|
#26
DUST SEAL (30X47X8) (NOK)
91253-443-762
|
$14.69 | ||
|
Unavailable |
|||
|
#27
O-RING (61X2)
91302-MA6-003
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING (46.5X3.5)
91358-MB0-000
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
