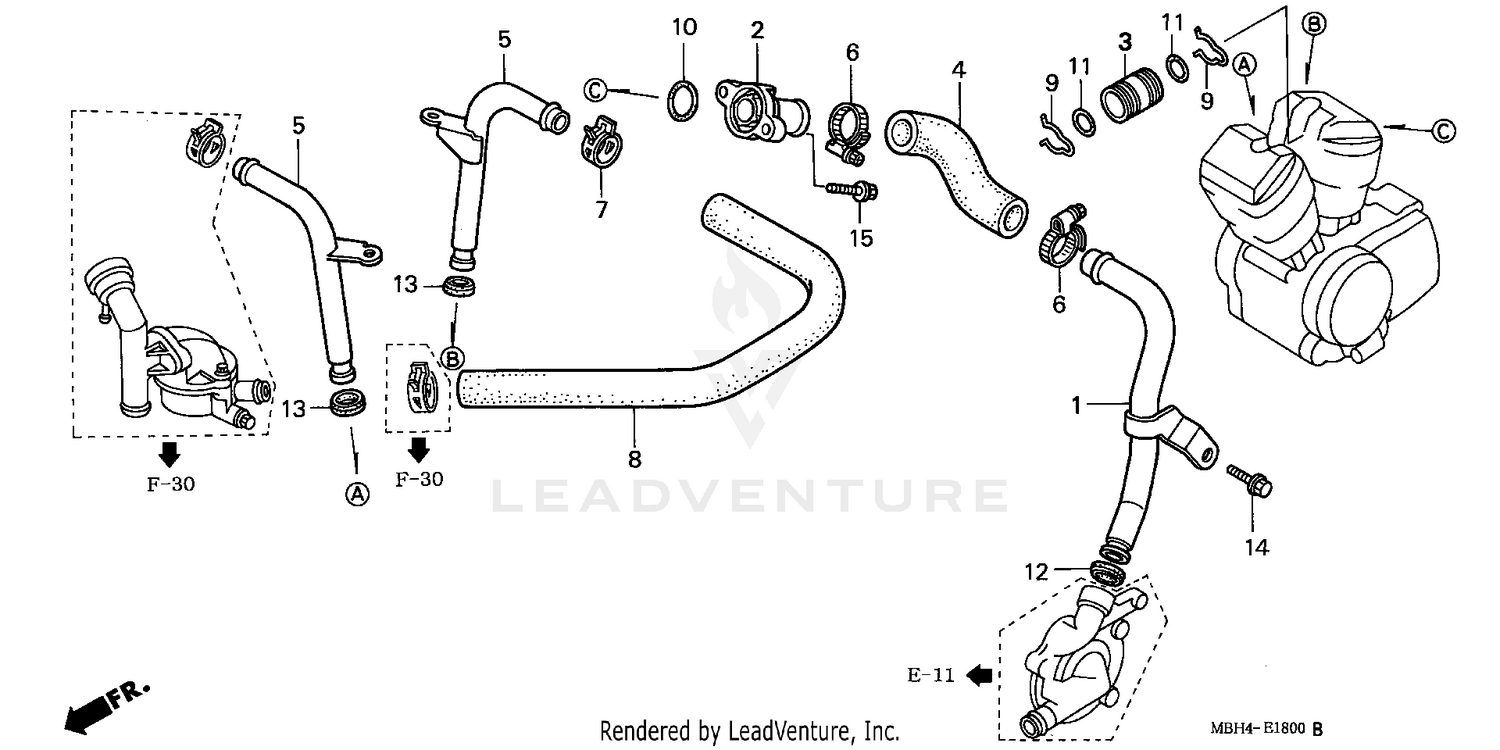

Water Pipe Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, INLET WATER
19501-MAA-A00
|
$39.26 | ||
|
Available to order. Add to View Price |
|||
|
#2
JOINT, WATER HOSE
19504-MAA-A00
|
$37.71 | ||
|
Unavailable |
|||
|
#3
JOINT, WATER
19505-MAA-A00
|
$36.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE, IN. WATER
19506-MAA-A00
|
$20.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE A, OUTLET WATER
19511-MM8-000
|
$37.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP, HOSE (30-37MM)
19516-GAG-003
|
$17.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP, WATER HOSE
19517-KM9-000
|
$8.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE B, OUTLET WATER
19522-MM8-000
|
$35.27 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP, RING (22MM)
90601-MAA-A00
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING (29X2.4)
91301-MAA-A00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING (21.5X2)
91310-MB0-003
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL, WATER PIPE (22.5MM)
91315-MAH-003
|
$9.62 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL, WATER PIPE (ARAI)
91315-ME9-003
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X22)
95701-06022-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
