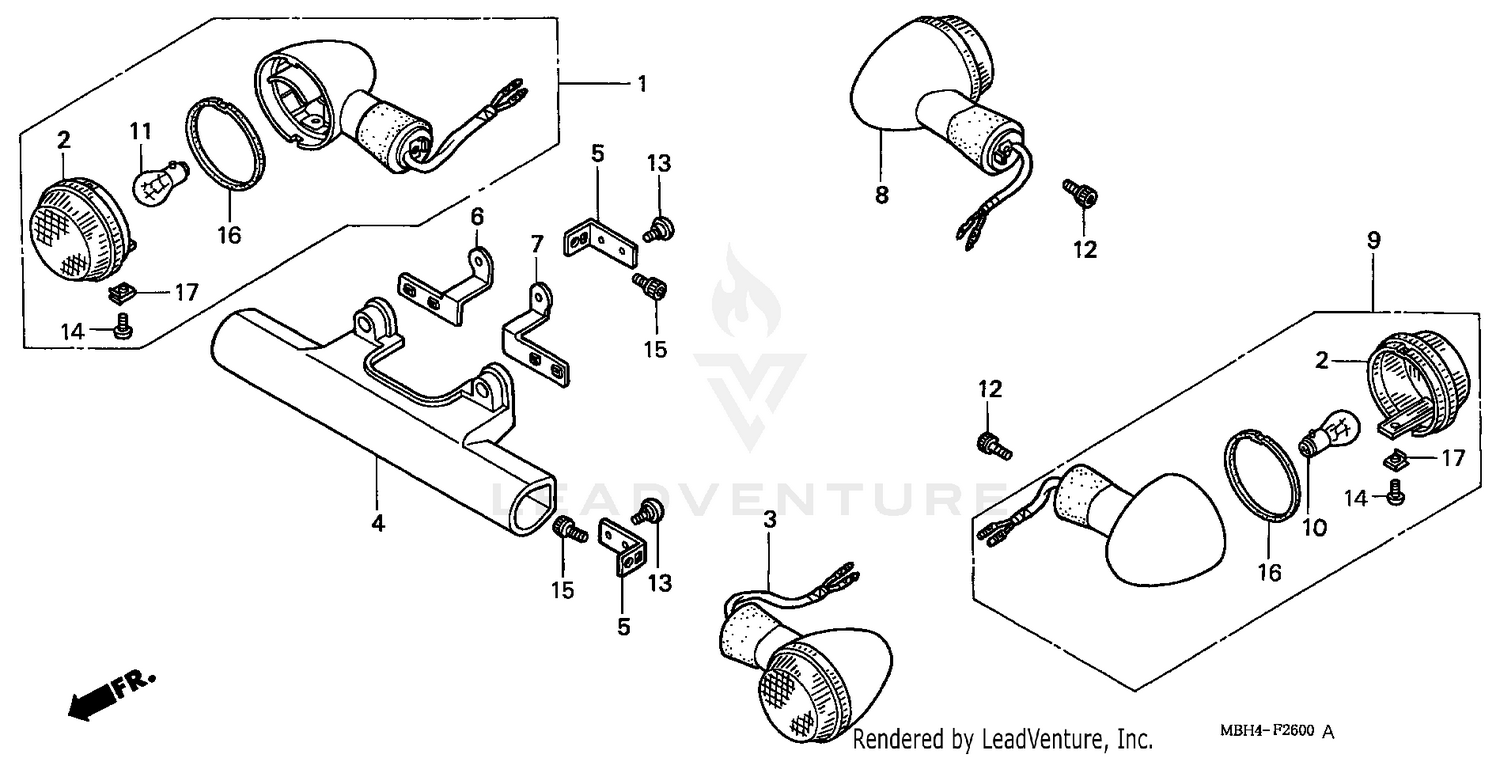

Front + Rear Turn Signal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WINKER ASSY,R FR
33400-MBH-671
Superseded by 33400-MBH-673
|
$82.76 | ||
|
Available to order. Add to View Price |
|||
|
#1
WINKER ASSY,R FR
33400-MBH-672
Superseded by 33400-MBH-673
|
$82.76 | ||
|
Unavailable |
|||
|
#2
LENS, TURN SIGNAL (COO)
33401-MBA-611
Superseded by 33401-MFR-305
|
$12.36 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS, TURN SIGNAL (COO)
33401-MBA-612
Superseded by 33401-MFR-305
|
$12.36 | ||
|
Unavailable |
|||
|
#3
WINKER ASSY,L FR
33450-MBH-671
Superseded by 33450-MBH-673
|
$82.76 | ||
|
Available to order. Add to View Price |
|||
|
#3
WINKER ASSY,L FR
33450-MBH-672
Superseded by 33450-MBH-673
|
$82.76 | ||
|
Unavailable |
|||
|
#4
COVER, FR. TURN SIGNAL
33490-MBA-000
|
$82.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAY, FR. TURN SIGNAL
33491-MBH-000
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, R. FR. TURN SIGNAL
33492-MBA-000
|
$10.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, L. FR. TURN SIGNAL
33493-MBA-000
|
$10.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
WINKER ASSY,R RR
33600-MBH-003
Superseded by 33600-MBH-023
|
$82.76 | ||
|
Available to order. Add to View Price |
|||
|
#8
WINKER ASSY,R RR
33600-MBH-013
Superseded by 33600-MBH-023
|
$82.76 | ||
|
Unavailable |
|||
|
#9
TURN SIGNAL ASSY.
33650-MBH-003
Superseded by 33650-MBH-023
|
$80.56 | ||
|
Available to order. Add to View Price |
|||
|
#9
TURN SIGNAL ASSY.
33650-MBH-013
Superseded by 33650-MBH-023
|
$80.56 | ||
|
Unavailable |
|||
|
#10
BULB (12V 21W) (ECE) (STANLEY)
34908-634-611
|
$7.38 | ||
|
Available to order. Add to View Price |
|||
|
#11
BULB, TAILLIGHT (12V 21/5W) (STANLEY)
34906-447-711
|
$11.36 | ||
|
Available to order. Add to View Price |
|||
|
#12
SET,SOCKET BOLT,6
90001-GY6-900
Superseded by 90001-GY6-305
|
$4.29 | ||
|
Unavailable |
|||
|
#13
SCREW, SPECIAL (5MM)
90106-MBA-610
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, SPECIAL (4X8)
33403-MBA-611
|
$0.96 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, SOCKET (6X12)
96600-06012-00
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET, LENS
33407-MBA-611
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, CLIP
33408-MBA-611
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
