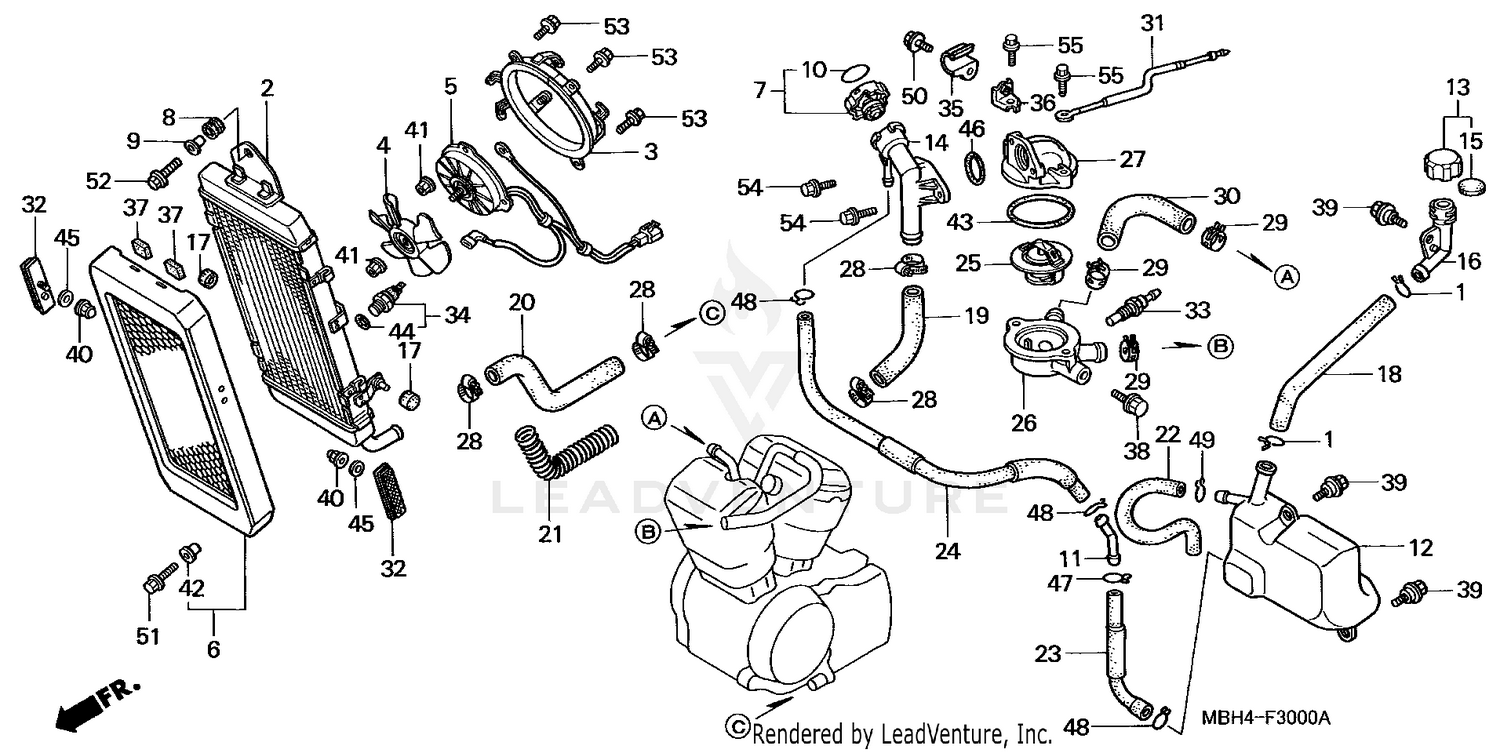

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP A, BREATHER TUBE
17316-MN1-670
|
$2.78 | ||
|
Available to order. Add to View Price |
|||
|
#2
RADIATOR
19010-MAA-013
|
$588.15 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHROUD
19015-MAA-003
|
$106.54 | ||
|
Unavailable |
|||
|
#4
FAN, COOLING
19020-MG8-003
|
$71.18 | ||
|
Available to order. Add to View Price |
|||
|
#5
MOTOR ASSY., FAN
19030-MAA-023
|
$524.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, RADIATOR *NH1* (BLACK)
19040-MM8-000ZA
|
$85.16 | ||
|
Unavailable |
|||
|
#7
CAP, RADIATOR
19045-MY3-671
Superseded by 19045-MY3-621
|
$49.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, RADIATOR MOUNTING
19051-KA3-830
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, RADIATOR MOUNTING
19052-MN8-000
Superseded by 19052-MGH-640
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)
19055-MV9-921
Superseded by 19055-MV9-881
|
$11.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
JOINT, TUBE
19103-ML7-000
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#12
TANK, RESERVE
19103-MM8-010
|
$49.96 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP ASSY., RESERVE TANK
19105-MG8-000
|
$15.24 | ||
|
Available to order. Add to View Price |
|||
|
#14
NECK, FILLER
19106-MM8-000
|
$67.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, RESERVE TANK
19107-MG8-000
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
NECK, RESERVE TANK FILLER
19111-MR1-000
|
$17.53 | ||
|
Unavailable |
|||
|
#17
MOUNT, RADIATOR (LOWER)
19112-MF5-840
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#18
TUBE, RADIATOR RESERVE TANK
19113-MM8-000
|
$20.58 | ||
|
Unavailable |
|||
|
#19
HOSE, RADIATOR (UPPER)
19116-MM8-000
|
$17.82 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE, RADIATOR (LOWER)
19117-MM8-000
|
$48.93 | ||
|
Available to order. Add to View Price |
|||
|
#21
GUARD, RADIATOR HOSE (LOWER)
19120-MM8-000
|
$23.90 | ||
|
Available to order. Add to View Price |
|||
|
#22
TUBE, OVERFLOW
19201-MAH-000
|
$14.58 | ||
|
Available to order. Add to View Price |
|||
|
#23
TUBE, RADIATOR RESERVE
19206-MAH-000
|
$31.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
TUBE, RADIATOR RESERVE (B)
19207-MAH-000
|
$35.58 | ||
|
Available to order. Add to View Price |
|||
|
#25
THERMOSTAT
19300-MB0-003
|
$63.95 | ||
|
Available to order. Add to View Price |
|||
|
#26
CASE, THERMOSTAT
19311-MM8-000
|
$87.99 | ||
|
Unavailable |
|||
|
#27
COVER, THERMOSTAT
19315-MG8-000
|
$76.96 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP, HOSE (24-32MM)
19516-ML7-691
|
$17.45 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP, WATER HOSE
19517-KM9-000
|
$8.67 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOSE A, OUTLET WATER
19521-MM8-000
|
$21.20 | ||
|
Available to order. Add to View Price |
|||
|
#31
SUB-WIRE, TEMPERATURE GROUND
32102-MAH-000
|
$7.15 | ||
|
Unavailable |
|||
|
#32
REFLECTOR, FR. REFLEX
33741-ME9-673
|
$20.87 | ||
|
Available to order. Add to View Price |
|||
|
#33
THERMO UNIT (DENSO)
37750-PC1-004
|
$98.57 | ||
|
Available to order. Add to View Price |
|||
|
#34
SWITCH ASSY., THERMO
37760-MT2-003
Superseded by 37760-MR1-003
|
$87.13 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLAMP A, CHOKE CABLE
50173-MAH-A00
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#36
BRACKET, THERMOSTAT CASE
50189-MM8-000
|
$8.04 | ||
|
Available to order. Add to View Price |
|||
|
#37
RUBBER, FUEL TANK CUSHION
50225-MY5-610
|
$5.82 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, SPECIAL (8MM)
90042-MB6-000
|
$3.52 | ||
|
Unavailable |
|||
|
#39
BOLT, FLANGE (6MM)
90116-ME9-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT, FLANGE CAP (5MM)
90167-SA0-980
|
$7.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
NUT, SERRATE (5MM)
90315-MK3-003
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#42
COLLAR, GEARSHIFT LEVER SETTING
90522-MF5-000
Superseded by 90522-170-700
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
O-RING (54X2)
91307-MB0-003
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#44
O-RING (13.5X1.4)
91307-PH7-660
|
$3.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
O-RING (13.5X1.4)
91307-611-000
Superseded by 91307-PH7-660
|
$3.20 | ||
|
Unavailable |
|||
|
#45
WASHER, PLAIN (5MM)
94101-05800
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#46
O-RING (23X2.4)
94608-30000
|
$1.36 | ||
|
Unavailable |
|||
|
#47
CLIP, TUBE (B10)
95002-02100
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#48
CLIP, TUBE (B12)
95002-02120
|
$2.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#49
CLIP, TUBE (C11)
95002-70000
|
$1.72 | ||
|
Unavailable |
|||
|
#50
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#51
BOLT, FLANGE (6X20)
95701-06020-07
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#52
BOLT, FLANGE (6X28)
95701-06028-07
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#53
BOLT, FLANGE (6X10)
96001-06010-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#54
BOLT, FLANGE (6X14)
96001-06014-07
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#55
BOLT, FLANGE (6X20)
96001-06020-07
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
