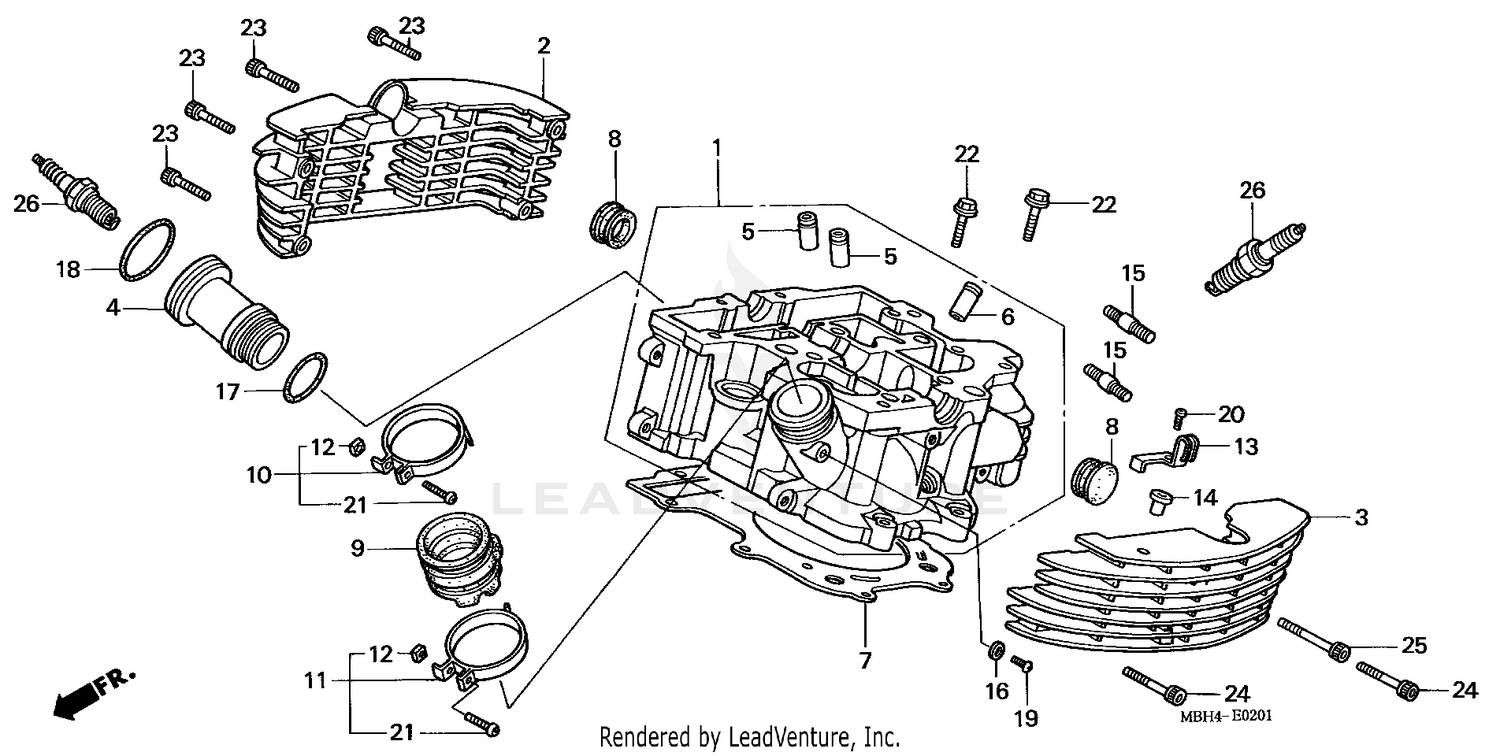

Cylinder Head (rr.) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD, RR.
12220-MAH-000
|
$1,130.63 | ||
|
Available to order. Add to View Price |
|||
|
#2
FIN A, RR. CYLINDER HEAD
12222-MAH-A80
|
$962.78 | ||
|
Available to order. Add to View Price |
|||
|
#3
FIN B, RR. CYLINDER HEAD
12223-MAH-A80
|
$83.25 | ||
|
Available to order. Add to View Price |
|||
|
#4
SLEEVE, PLUG
12225-MG8-000
|
$44.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, VALVE
12231-MG8-305
|
$24.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUIDE, IN VALVE
12233-MG8-305
Superseded by 12233-MG8-405
|
$20.26 | ||
|
Unavailable |
|||
|
#6
GUIDE, IN VALVE
12233-MG8-405
|
$20.26 | ||
|
Unavailable |
|||
|
#7
GASKET, CYLINDER HEAD
12251-MAH-003
|
$46.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG, CAMSHAFT
12312-ME9-750
|
$12.27 | ||
|
Available to order. Add to View Price |
|||
|
#9
INSULATOR, CARBURETOR
16211-MAH-000
|
$28.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND A, INSULATOR
16218-MAH-000
|
$12.82 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND B, INSULATOR
16219-MAH-000
|
$8.64 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, SQUARE (5MM)
16222-MV4-300
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP, IGNITION WIRE
32905-MAH-000
|
$19.24 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT (5MM)
64528-KV3-000
|
$10.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, STUD (8X31)
90035-MAH-000
|
$7.11 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SEALING (5MM)
90452-323-000
|
$1.91 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING (27.4X2.4) (ARAI)
91304-MG7-003
|
$8.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (35.3X2.4) (NOK)
91351-MG7-004
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN (5X8)
93500-05008-0A
|
$0.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SCREW, PAN (5X12)
93500-05012-0G
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN (5X25)
93500-05025-0G
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X35)
95701-06035-07
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, SOCKET (6X20)
96600-06020-07
|
$1.18 | ||
|
Unavailable |
|||
|
#23
BOLT, SOCKET (6X20)
96700-06020-07
Superseded by 96600-06020-07
|
$1.18 | ||
|
Unavailable |
|||
|
#24
BOLT, SOCKET (6X35)
96700-06035-07
|
$3.78 | ||
|
Unavailable |
|||
|
#25
BOLT, SOCKET (6X45)
96700-06045-07
|
$1.59 | ||
|
Unavailable |
|||
|
#26
SPARK PLUG (DPR6EA-9) (NGK)
98069-56916
|
$2.91 | ||
|
Unavailable |
|||
|
#26
SPARK PLUG (X20EPR-U9) (DENSO)
98069-56926
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPARK PLUG (DPR7EA-9) (NGK)
98069-57916
|
$2.91 | ||
|
Unavailable |
|||
|
#26
SPARK PLUG (X22EPR-U9) (DENSO)
98069-57926
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPARK PLUG (DPR8EA-9) (NGK)
98069-58916
|
$2.91 | ||
|
Unavailable |
|||
|
#26
SPARK PLUG (X24EPR-U9) (DENSO)
98069-58926
|
$2.80 | ||
|
Unavailable |
|||
