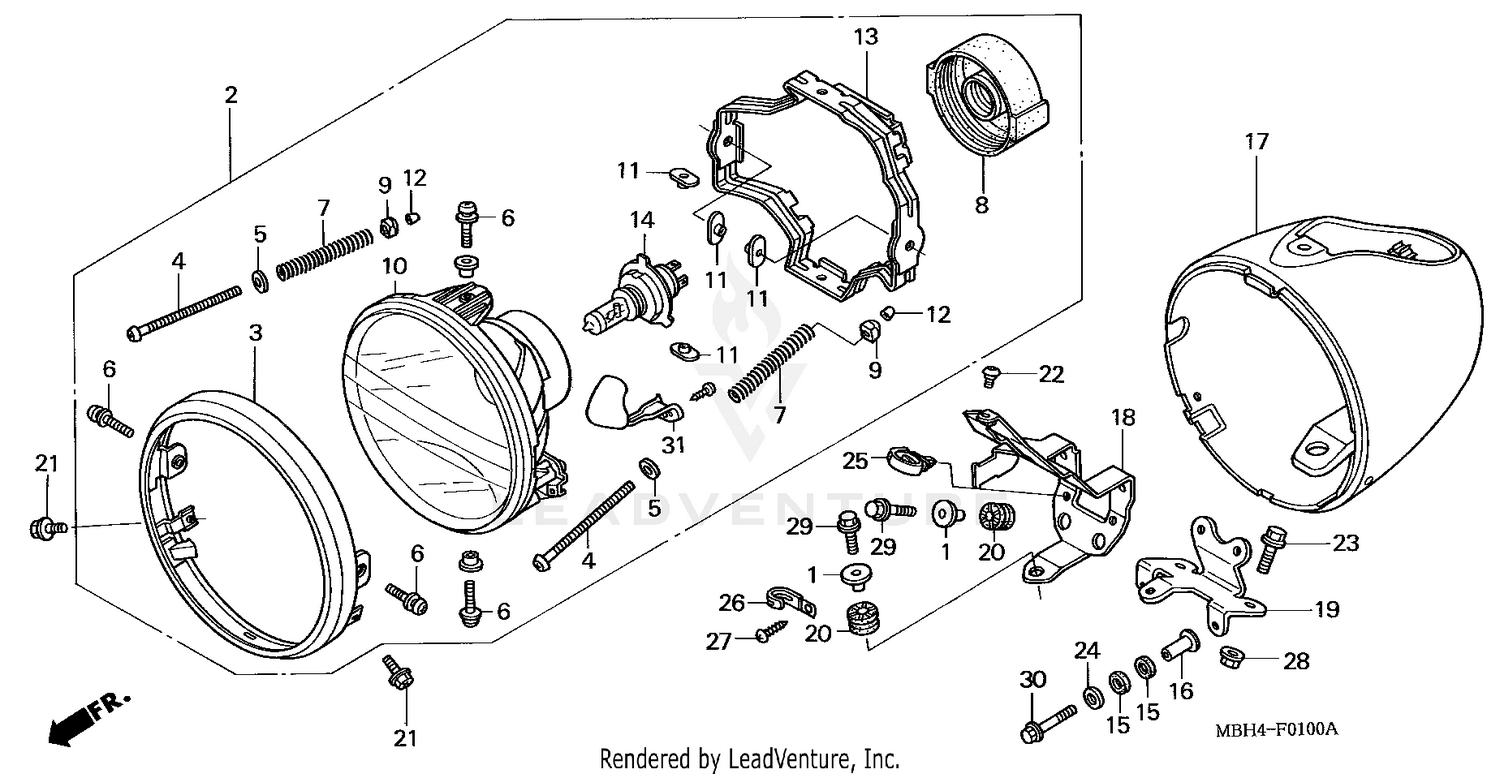

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR, AIR CLEANER
17248-402-700
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#2
HEADLIGHT ASSY.
33100-MBH-672
|
$217.22 | ||
|
Unavailable |
|||
|
#3
RIM, HEADLIGHT
33101-MAH-671
|
$73.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, BEAM ADJUSTING
33103-MAH-671
|
$5.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER
33105-MAH-671
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW-WASHER
33106-MZ0-671
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, BEAM ADJUSTING
33107-MK7-671
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, RUBBER
33112-MZ0-671
|
$19.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, BEAM ADJUSTING
33118-438-841
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
HEADLIGHT UNIT
33120-MBH-671
|
$128.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SPECIAL
33128-MAH-671
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, SCREW
33136-426-830
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
RING, HEADLIGHT
33153-MZ0-671
|
$34.28 | ||
|
Unavailable |
|||
|
#14
BULB, HEADLIGHT (12V 60/55W) (STANLEY)
34901-MC7-601
Superseded by 34901-MC7-602
|
$45.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
BULB, HEADLIGHT (12V 60/55W) (STANLEY)
34901-MC7-601AH
Superseded by 34901-MC7-602
|
$45.05 | ||
|
Unavailable |
|||
|
#15
RUBBER, HANDLE COVER (UPPER)
53210-HA0-000
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR, FR. FENDER SETTING
61101-KE1-000
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
CASE, HEADLIGHT
61301-MBH-000
|
$118.87 | ||
|
Available to order. Add to View Price |
|||
|
#18
STAY, METER
61302-MBH-000
|
$59.59 | ||
|
Unavailable |
|||
|
#19
STAY, HEADLIGHT
61311-MBH-000
|
$80.69 | ||
|
Unavailable |
|||
|
#20
CUSHION, HEADLIGHT
61312-MBH-000
|
$2.59 | ||
|
Unavailable |
|||
|
#21
BOLT, SOCKET (5X12)
90007-MBC-000
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN (6X11)
90106-KY2-701
|
$5.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, SPECIAL FLANGE (8X26)
90183-438-000
|
$6.11 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLAIN (6MM)
90403-ZW1-000
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLAIN (6MM)
90406-ZV5-000
Superseded by 90403-ZW1-000
|
$2.34 | ||
|
Unavailable |
|||
|
#24
WASHER, PLAIN (6MM)
90406-ZV5-010
Superseded by 90403-ZW1-000
|
$2.34 | ||
|
Unavailable |
|||
|
#25
STRAP, WIRE HARNESS (25MM) (BLACK)
90690-SA0-003
|
$7.98 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP
91411-679-000
|
$16.97 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN (5X8)
93500-05008-0H
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, FLANGE (8MM)
94050-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X35)
96001-06035-02
|
$2.04 | ||
|
Unavailable |
|||
|
#31
HOOD
33125-MBH-671
|
$7.40 | ||
|
Unavailable |
|||
