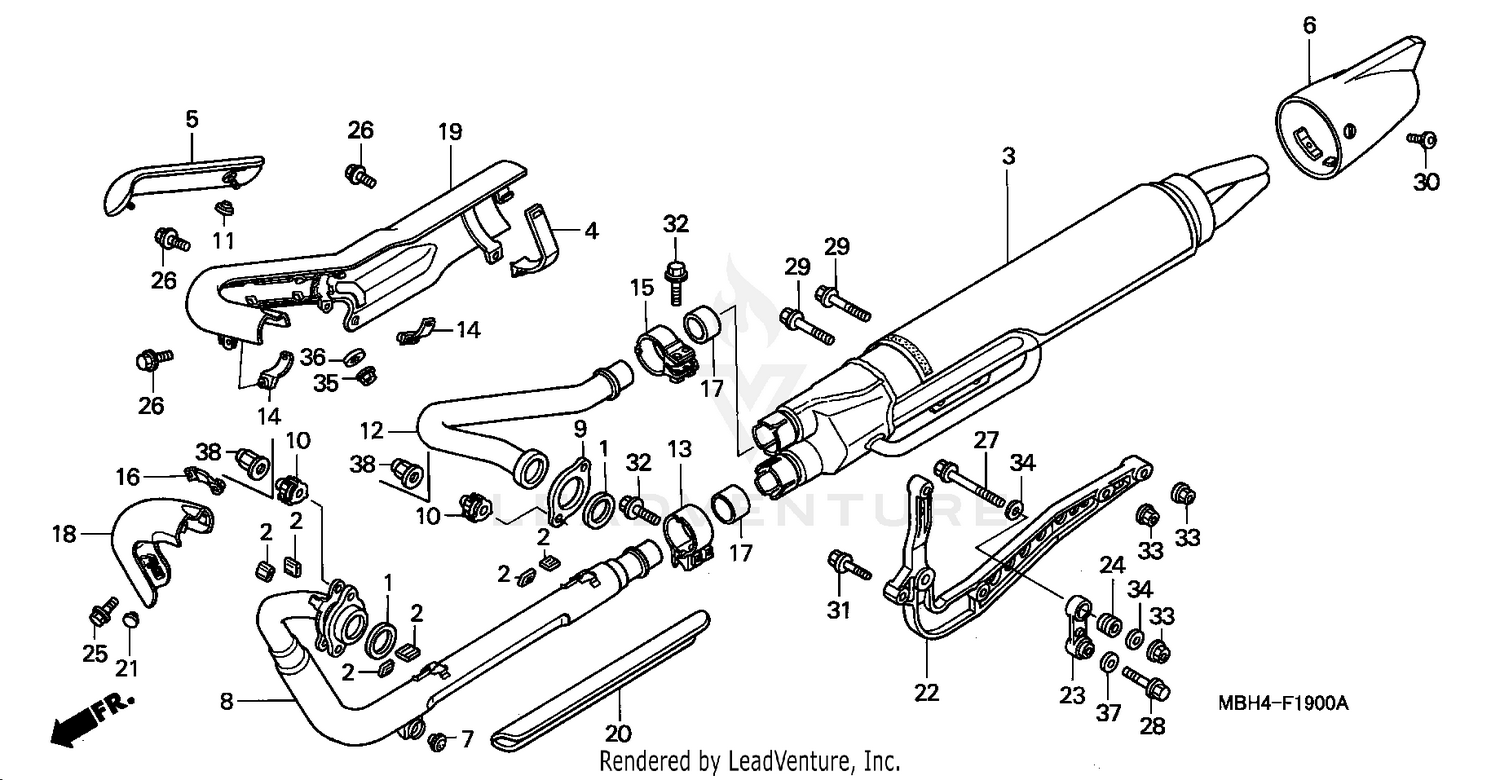

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, EX. PIPE
18291-MR5-801
|
$15.53 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, PROTECTOR
18293-MN0-000
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#3
MUFFLER
18305-MBH-671
|
$1,210.61 | ||
|
Unavailable |
|||
|
#4
BAND, RR. EX. PIPE COVER
18314-MBH-003
|
$49.20 | ||
|
Unavailable |
|||
|
#5
PROTECTOR, RR. EX. PIPE
18315-MAH-003
|
$66.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
TAILPIECE, R.
18316-MBH-003
|
$37.55 | ||
|
Unavailable |
|||
|
#7
RUBBER, STOPPER
18319-MAH-000
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE, FR. EX.
18320-MBH-003
|
$361.91 | ||
|
Unavailable |
|||
|
#9
JOINT, EX. PIPE
18325-MAH-000
|
$22.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT ASSY. (8MM)
18330-MAH-000
|
$17.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET A, MUFFLER PROTECTOR
18366-GW8-670
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIPE, RR. EX.
18370-MBH-003
|
$140.34 | ||
|
Unavailable |
|||
|
#13
BAND, MUFFLER
18376-KG0-003
|
$22.82 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND, EX. MUFFLER
18376-MAA-A01
|
$13.90 | ||
|
Available to order. Add to View Price |
|||
|
#15
BAND B, MUFFLER
18377-MAA-A01
|
$43.96 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAND, RR. EX. PIPE COVER
18377-MAH-000
|
$16.36 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET, MUFFLER
18392-MBH-000
|
$20.00 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER A, FR. EX. PIPE
18421-MAH-003
|
$84.09 | ||
|
Unavailable |
|||
|
#19
COVER, RR. EX. PIPE
18422-MBH-003
|
$240.68 | ||
|
Unavailable |
|||
|
#20
PROTECTOR, FR. EX. PIPE
18423-MBH-003
|
$39.21 | ||
|
Unavailable |
|||
|
#21
GROMMET, MUFFLER COVER
18430-MAH-000
|
$2.33 | ||
|
Unavailable |
|||
|
#22
BRACKET, MUFFLER
18455-MBH-000
|
$158.69 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET B, MUFFLER
18460-MAH-000
|
$57.94 | ||
|
Unavailable |
|||
|
#24
COLLAR, MUFFLER BRACKET
18461-MAH-000
|
$7.81 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE (6X16) (NSHF)
90001-GHB-630
Superseded by 90004-GHB-630
|
$4.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X16) (NSHF)
90004-GHB-630
|
$4.40 | ||
|
Unavailable |
|||
|
#26
BOLT, FLANGE (6X25) (NSHF)
90001-GHB-670
Superseded by 90004-GHB-670
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X25) (NSHF)
90004-GHB-670
|
$3.47 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE (8X80)
90011-KV3-680
|
$5.62 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE (8X80)
90011-KV3-770
Superseded by 90011-KV3-680
|
$5.62 | ||
|
Unavailable |
|||
|
#28
BOLT, UBS (8X36)
90031-752-000
|
$2.98 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE (8X40)
90103-KAB-670
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, PAN (6X10)
90105-MM4-000
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (8X32)
90109-MAH-000
|
$10.80 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (8X35)
90161-ML7-000
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, FLANGE (8MM)
90309-MR1-770
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, SPECIAL (28X8.5X4.0)
90435-611-000
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT-WASHER (5MM)
94070-05080
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLAIN (5MM)
94103-05800
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, PLAIN (8MM)
94103-08800
|
$0.98 | ||
|
Unavailable |
|||
