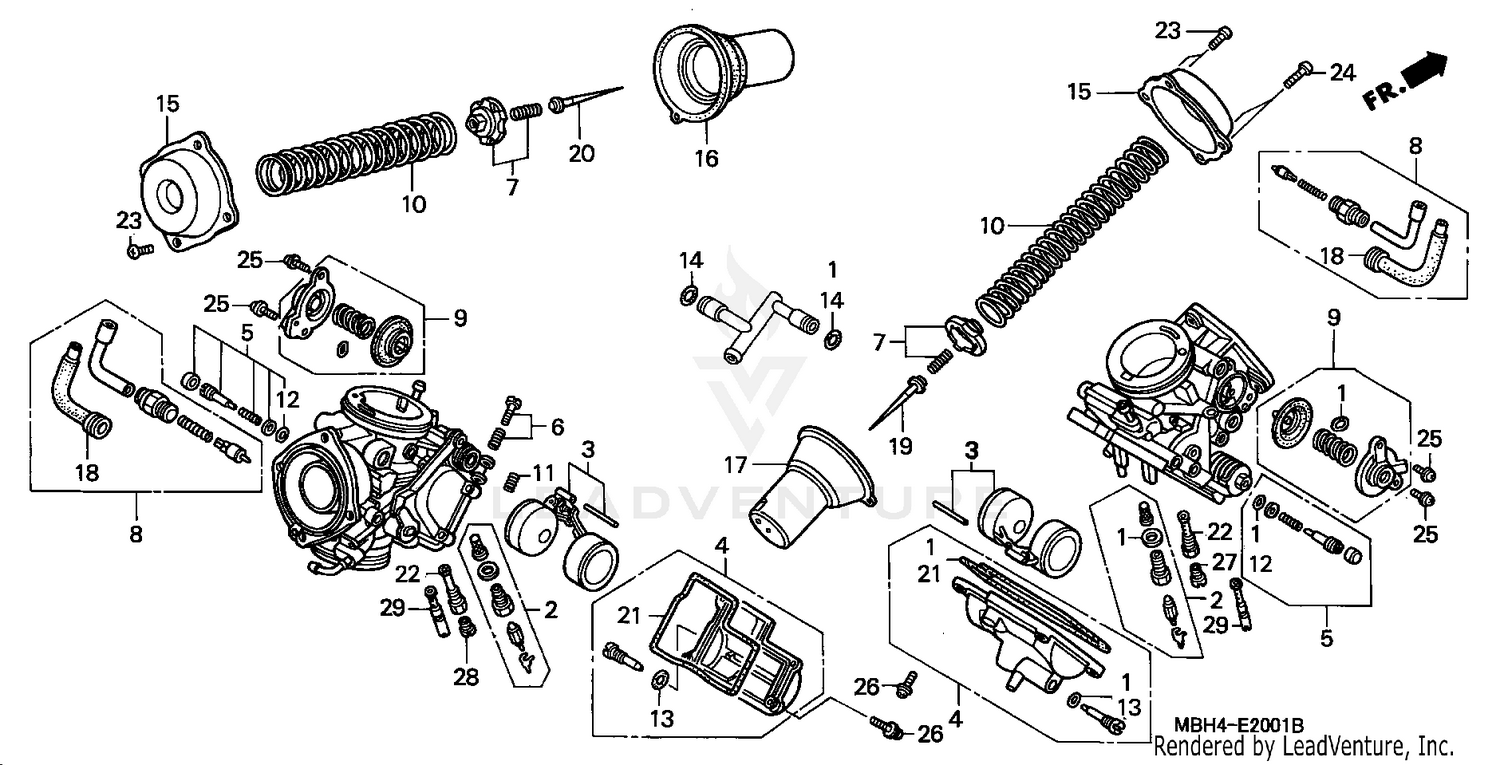

Carburetor Comp. Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-MBH-670
|
$45.80 | ||
|
Available to order. Add to View Price |
|||
|
#2
VALVE SET, FLOAT
16011-MAH-000
|
$85.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLOAT SET
16013-MAH-000
|
$60.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
CHAMBER SET, FLOAT
16015-MAH-750
|
$150.51 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW SET
16016-MAH-670
|
$32.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW SET C
16029-MB0-671
|
$28.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE SET, VALVE
16037-MN9-004
Superseded by 16037-MAK-000
|
$20.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE SET, VALVE
16037-MAK-000
|
$20.80 | ||
|
Unavailable |
|||
|
#8
VALVE SET, STARTER
16046-MAA-610
|
$85.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
VALVE SET, AIR CUT
16048-MAH-610
|
$82.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, COMPRESSION COIL
16050-MBH-670
|
$14.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING
16052-ME9-672
|
$7.13 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING (1.1X2.8)
16075-GHB-600
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (1.3X4.3)
16075-GHB-640
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (1.3X7.0)
16075-GHB-670
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
TOP
16107-MM8-004
|
$47.78 | ||
|
Unavailable |
|||
|
#16
PISTON, VACUUM
16111-MBH-670
|
$175.88 | ||
|
Available to order. Add to View Price |
|||
|
#17
PISTON, VACUUM
16112-MBH-670
|
$111.38 | ||
|
Unavailable |
|||
|
#18
CAP, CABLE SEALING
16118-ME9-671
|
$16.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
NEEDLE, JET
16131-MBH-670
|
$20.64 | ||
|
Unavailable |
|||
|
#20
NEEDLE, JET
16151-MBC-670
|
$19.31 | ||
|
Unavailable |
|||
|
#21
GASKET, FLOAT CHAMBER
16163-MAH-750
|
$42.56 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOLDER, NEEDLE JET
16165-MBH-670
|
$25.03 | ||
|
Unavailable |
|||
|
#23
SCREW, PAN (4X10)
93500-04010-0A
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN (4X10)
93500-04010-1A
Superseded by 93500-04010-0A
|
$0.95 | ||
|
Unavailable |
|||
|
#24
SCREW, PAN (4X10)
93500-04010-0A
|
$0.95 | ||
|
Unavailable |
|||
|
#24
SCREW, PAN (4X10)
93500-04010-1A
Superseded by 93500-04010-0A
|
$0.95 | ||
|
Unavailable |
|||
|
#25
SCREW-WASHER (4X12)
93892-04012-08
|
$0.67 | ||
|
Unavailable |
|||
|
#25
SCREW-WASHER (4X12)
93892-04012-18
Superseded by 93892-04012-08
|
$0.67 | ||
|
Unavailable |
|||
|
#26
SCREW-WASHER (4X16)
93892-04016-00
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW-WASHER (4X16)
93892-04016-10
Superseded by 93892-04016-00
|
$0.60 | ||
|
Unavailable |
|||
|
#27
JET, MAIN (#180)
99101-GHB-1800
Superseded by 99101-MCK-1800
|
$13.40 | ||
|
Available to order. Add to View Price |
|||
|
#28
JET (#185)
99101-GHB-1850
Superseded by 99101-MAA-1850
|
$13.32 | ||
|
Available to order. Add to View Price |
|||
|
#29
JET, SLOW (#42)
99103-MT2-0420
Superseded by 99103-MV9-0420
|
$25.33 | ||
|
Available to order. Add to View Price |
|||
