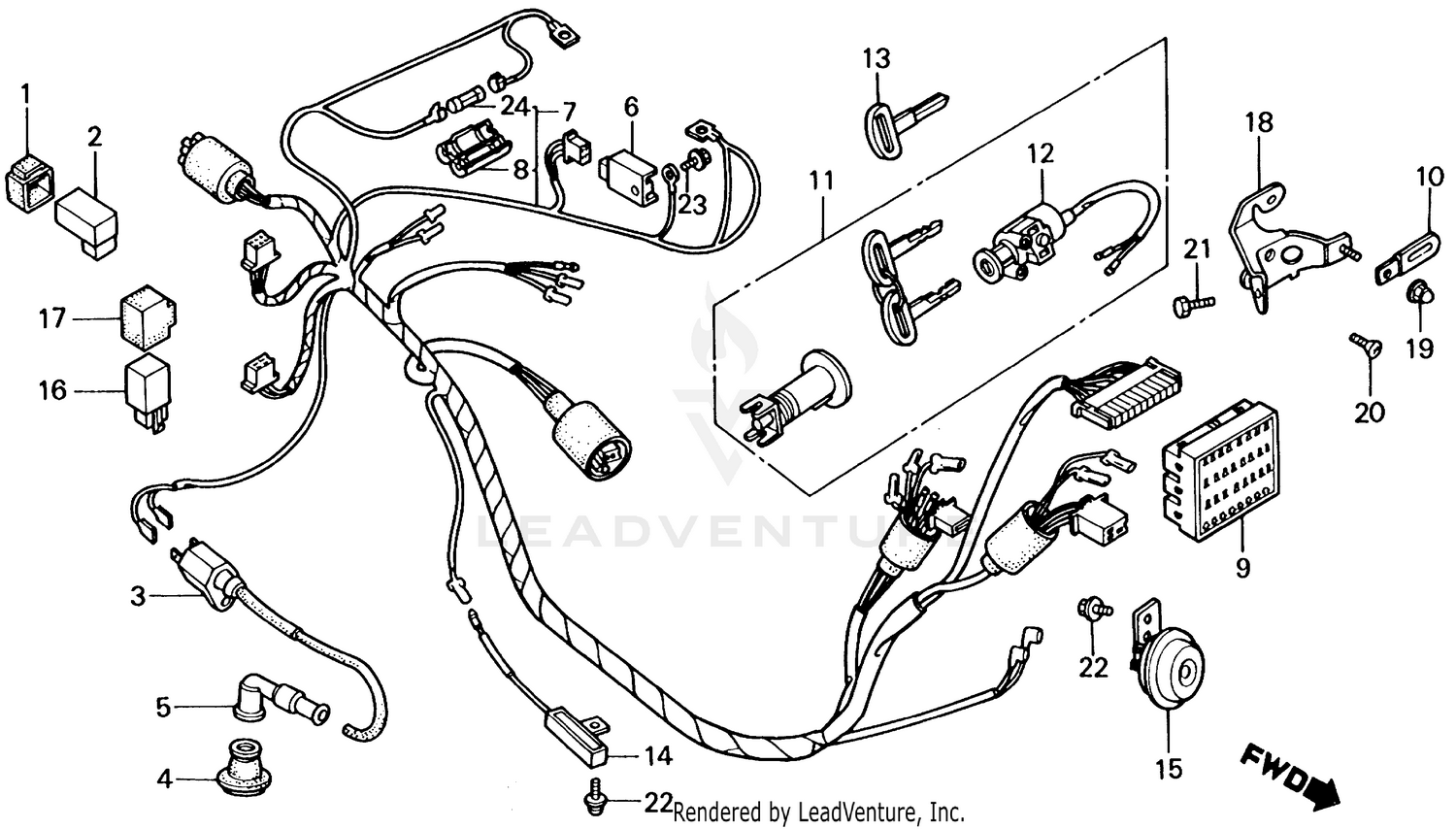

Wire Harness 87 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION, IGNITION CONTROL MODULE (CDI)
30401-GE8-000
Superseded by 30401-GB4-770
|
$7.20 | ||
|
Available to order. Add to View Price |
|||
|
#2
MODULE, IGNITION CONTROL (CDI) (SHINDENGEN)
30410-GK8-781
Superseded by 30410-GK8-784
|
$162.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
MODULE, IGNITION CONTROL (CDI) (SHINDENGEN)
30410-GK8-782
Superseded by 30410-GK8-784
|
$162.47 | ||
|
Unavailable |
|||
|
#2
MODULE, IGNITION CONTROL (CDI) (SHINDENGEN)
30410-GK8-783
Superseded by 30410-GK8-784
|
$162.47 | ||
|
Unavailable |
|||
|
#2
MODULE, IGNITION CONTROL (CDI) (SHINDENGEN)
30410-GK8-784
|
$162.47 | ||
|
Unavailable |
|||
|
#3
COIL ASSY., IGNITION
30510-GF9-405
|
$102.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
COIL ASSY., IGNITION
30510-GK8-000
Superseded by 30510-GF9-405
|
$102.18 | ||
|
Unavailable |
|||
|
#4
SEAL, IGNITION
30605-GR1-010
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP ASSY., NOISE SUPPRESSOR
30700-GN0-601
Superseded by 30700-KE6-702
|
$14.58 | ||
|
Unavailable |
|||
|
#5
CAP ASSY., NOISE SUPPRESSOR
30700-GN0-602
Superseded by 30700-KE6-702
|
$14.58 | ||
|
Unavailable |
|||
|
#5
CAP ASSY., NOISE SUPPRESSOR
30700-KE6-702
|
$14.58 | ||
|
Unavailable |
|||
|
#6
RECTIFIER, REGULATOR (SHINDENGEN)
31600-GN2-003
Superseded by 31600-GW0-004
|
$161.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
RECTIFIER, REGULATOR (SHINDENGEN)
31600-GW0-004
|
$161.35 | ||
|
Unavailable |
|||
|
#7
WIRE HARNESS (NOT AVAILABLE)
32100-GK8-600
|
$92.17 | ||
|
Unavailable |
|||
|
#8
CASE, FUSE (10A)
32120-383-830
|
$4.83 | ||
|
Unavailable |
|||
|
#9
MULTI-CONNECTOR (10X3)
32150-MG2-003
|
$12.22 | ||
|
Unavailable |
|||
|
#10
CLIP, PULSER WIRE
32925-958-000
|
$3.42 | ||
|
Available to order. Add to View Price |
|||
|
#11
LOCK SET
35010-GK8-000
Superseded by 35010-GK8-010
|
$76.63 | ||
|
Unavailable |
|||
|
#11
LOCK SET
35010-GK8-010
|
$76.63 | ||
|
Unavailable |
|||
|
#12
SWITCH ASSY., COMBINATION & LOCK
35100-GK8-007
Superseded by 35100-GK8-017
|
$42.71 | ||
|
Unavailable |
|||
|
#12
SWITCH ASSY., COMBINATION & LOCK
35100-GK8-017
|
$42.71 | ||
|
Unavailable |
|||
|
#13
KEY, BLANK (TYPE1) (KEY NO. AXX / BXX)
35121-MM8-811
Superseded by 35121-MR1-770
|
$11.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
KEY, BLANK (TYPE1)
35121-MR1-770
|
$11.80 | ||
|
Unavailable |
|||
|
#13
KEY, BLANK (TYPE1) (KEY NO. AXX / BXX)
35121-402-811
Superseded by 35121-MR1-770
|
$11.80 | ||
|
Unavailable |
|||
|
#13
KEY, BLANK (TYPE2) (KEY NO. CXX / DXX)
35122-MM8-811
Superseded by 35122-MR1-770
|
$11.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
KEY, BLANK (TYPE2)
35122-MR1-770
|
$11.80 | ||
|
Unavailable |
|||
|
#13
KEY, BLANK (TYPE2) (KEY NO. CXX / DXX)
35122-402-811
Superseded by 35122-MR1-770
|
$11.80 | ||
|
Unavailable |
|||
|
#14
RESISTOR (NOT AVAILABLE)
35400-GK8-870
|
$19.65 | ||
|
Unavailable |
|||
|
#15
HORN
38110-GK1-005
Superseded by 38110-GK1-505
|
$25.70 | ||
|
Unavailable |
|||
|
#15
HORN
38110-GK1-505
|
$25.70 | ||
|
Unavailable |
|||
|
#15
HORN
38110-GK8-870
Superseded by 38110-GK1-505
|
$25.70 | ||
|
Unavailable |
|||
|
#16
RELAY, STARTER
38501-GF4-701
|
$36.00 | ||
|
Available to order. Add to View Price |
|||
|
#17
SUSPENSION, STARTER RELAY (OMRON)
38506-GF4-701
|
$3.74 | ||
|
Unavailable |
|||
|
#18
PLATE, HANDLE LOCK
50123-GK8-000
|
$8.61 | ||
|
Unavailable |
|||
|
#19
NUT, FLANGE CAP (5MM)
90106-MB9-871
|
$3.42 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, U-LOCK FLAT (6X12)
90164-028-000
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, HEX. (5X8)
92000-05008-0A
Superseded by 92101-05008-0A
|
$0.90 | ||
|
Unavailable |
|||
|
#21
BOLT, HEX. (5X8)
92101-05008-0A
|
$0.90 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE (6X10)
95700-06010-00
Superseded by 95701-06010-00
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X10)
95701-06010-00
|
$1.32 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE (6X12)
95700-06012-00
Superseded by 95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X12)
95701-06012-00
|
$2.09 | ||
|
Unavailable |
|||
|
#24
FUSE A (10A)
98200-11000
|
$2.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
