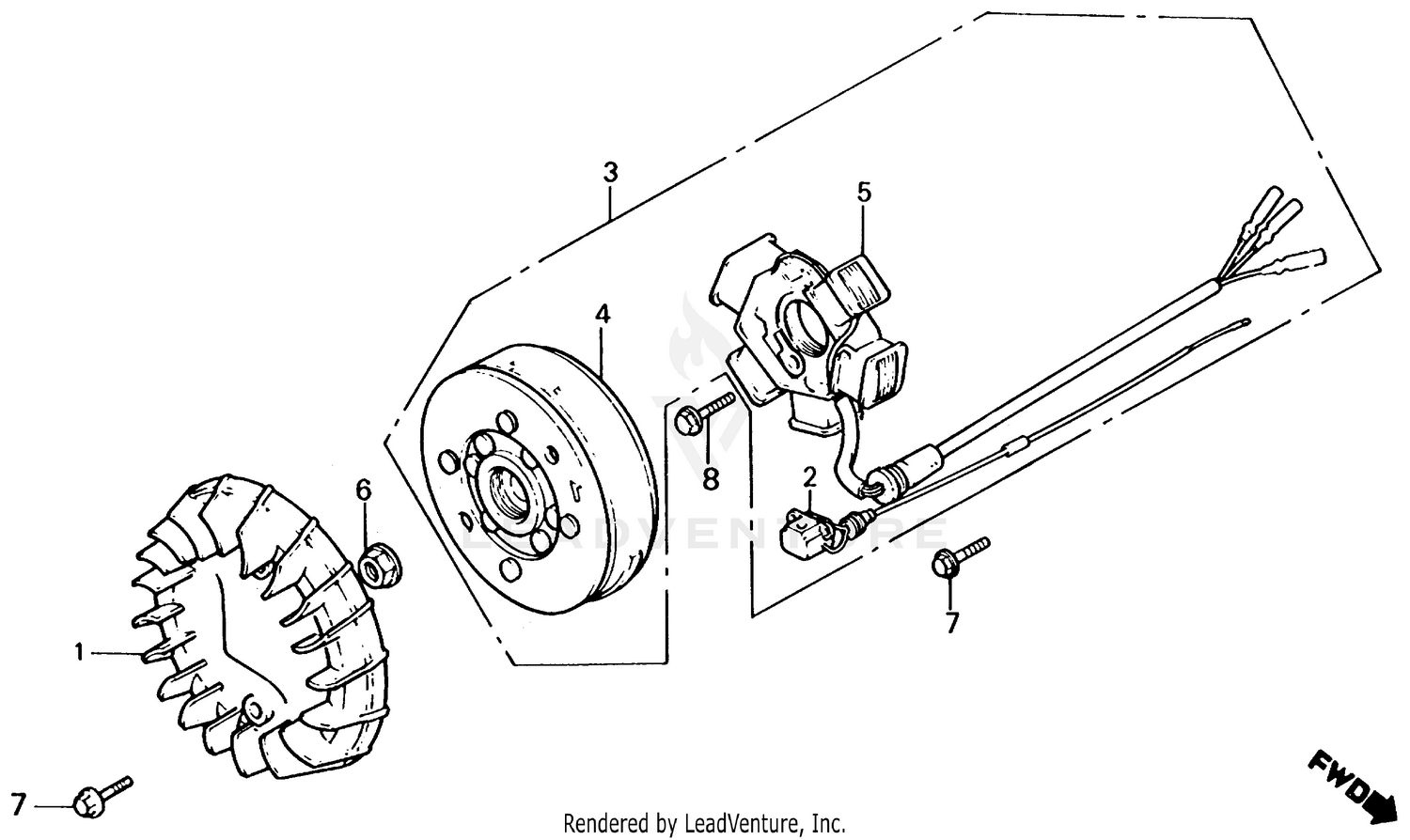

Alternator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FAN, COOLING
19510-GK8-780
|
$20.07 | ||
|
Unavailable |
|||
|
#2
PULSER (MITSUBA)
30300-GK8-781
Superseded by 30300-GZ9-008
|
$58.24 | ||
|
Unavailable |
|||
|
#2
PULSER (MITSUBA)
30300-GZ9-008
|
$58.24 | ||
|
Unavailable |
|||
|
#3
ALTERNATOR ASSY., FLYWHEEL TYPE (MITSUBA) (NOT AVAILABLE)
31100-GK8-871
|
$245.88 | ||
|
Unavailable |
|||
|
#4
FLYWHEEL (C.D.I.)
31110-GK8-781
|
$156.75 | ||
|
Unavailable |
|||
|
#4
FLYWHEEL (C.D.I.)
31110-GK8-871
Superseded by 31110-GK8-781
|
$156.75 | ||
|
Unavailable |
|||
|
#5
STATOR (C.D.I.) (MITSUBA) (NOT AVAILABLE)
31120-GK8-871
|
$109.75 | ||
|
Unavailable |
|||
|
#6
NUT, FLANGE (10MM)
94050-10000
|
$1.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BOLT, FLANGE (6X12)
96000-06012-00
Superseded by 96001-06012-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BOLT, FLANGE (6X12)
96001-06012-00
|
$1.88 | ||
|
Unavailable |
|||
|
#8
BOLT, FLANGE (6X18)
96000-06018-00
Superseded by 96001-06018-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X18)
96001-06018-00
|
$1.88 | ||
|
Unavailable |
|||
