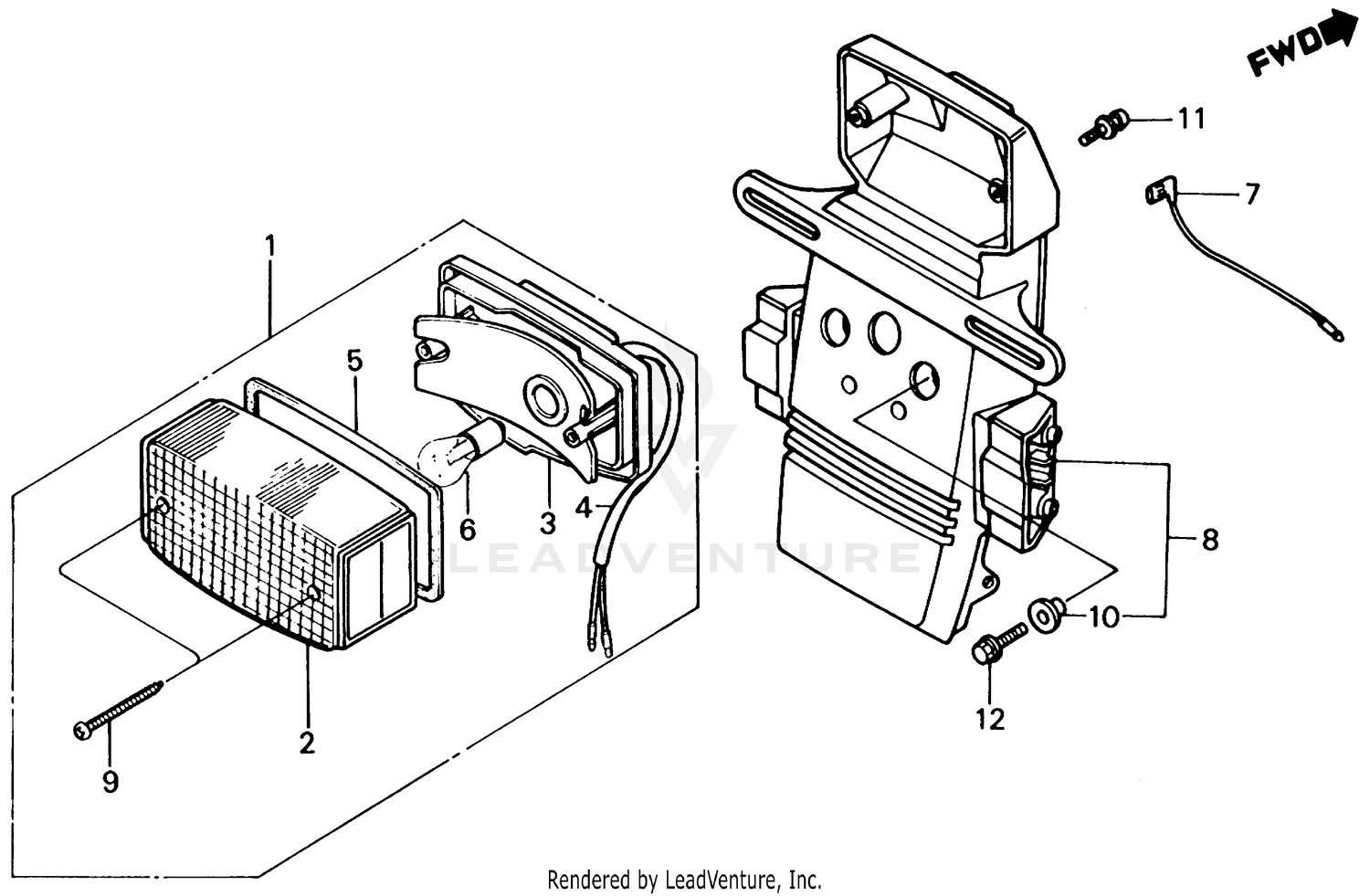

Taillight 87 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT
33701-GK8-671
|
$108.27 | ||
|
Unavailable |
|||
|
#2
LENS, TAILLIGHT (COO) (STANLEY)
33702-MC4-671
Superseded by 33702-MGR-305
|
$37.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
BASE, TAILLIGHT
33703-MC4-671
|
$73.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
WIRE, TAILLIGHT
33705-KE6-880
|
$14.22 | ||
|
Unavailable |
|||
|
#5
GASKET, TAILLIGHT LENS
33709-KB7-003
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)
34906-MG9-771
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)
34906-341-671
Superseded by 34906-MG9-771
|
$5.20 | ||
|
Unavailable |
|||
|
#7
CABLE, GROUND
32102-MF8-770
|
$9.88 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE, GROUND
38307-353-000
Superseded by 32102-MF8-770
|
$9.88 | ||
|
Unavailable |
|||
|
#8
BRACKET, NUMBER PLATE (NOT AVAILABLE)
84701-GK8-601
|
$57.24 | ||
|
Unavailable |
|||
|
#9
SCREW, TAPPING (4X40)
90105-GA7-003
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, CHAIN CASE SETTING
90522-028-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW-WASHER (5X20)
93891-05020-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X12)
95700-06012-00
Superseded by 95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X12)
95701-06012-00
|
$2.09 | ||
|
Unavailable |
|||
