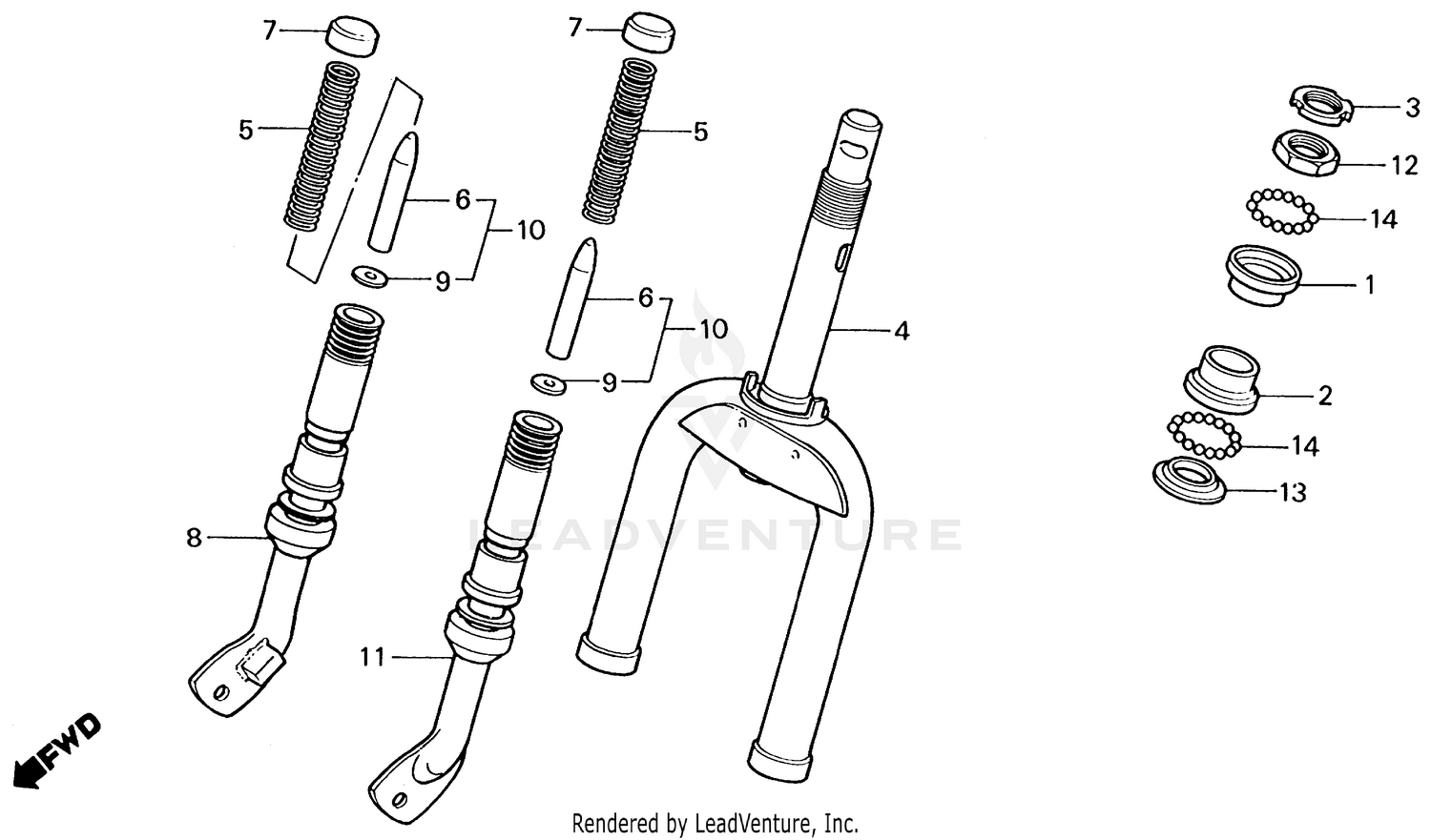

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RACE, STEERING BALL (UPPER)
50301-GM0-000
|
$14.75 | ||
|
Available to order. Add to View Price |
|||
|
#2
RACE, STEERING BALL (LOWER)
50305-GE8-680
|
$12.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, STEERING STEM LOCK
50306-196-000
Superseded by 50306-196-010
|
$5.71 | ||
|
Unavailable |
|||
|
#3
NUT, STEERING STEM LOCK
50306-196-010
|
$5.71 | ||
|
Unavailable |
|||
|
#4
FORK, FR. *NH35M* (CLOUD SILVER METALLIC)
51105-GK8-000ZE
|
$139.87 | ||
|
Unavailable |
|||
|
#5
SPRING, FR. FORK
51401-GK8-600
|
$13.06 | ||
|
Unavailable |
|||
|
#6
RUBBER, STOPPER
51406-GK8-671
|
$5.20 | ||
|
Unavailable |
|||
|
#7
STOPPER, SPRING
51407-GA7-000
|
$3.78 | ||
|
Unavailable |
|||
|
#8
PIPE ASSY., R. SLIDE
51420-GK8-601
|
$79.30 | ||
|
Unavailable |
|||
|
#9
PLATE, SPRING STOPPER
51427-GK8-000
|
$2.46 | ||
|
Unavailable |
|||
|
#10
STOPPER ASSY., SPRING
51500-GK8-671
|
$6.79 | ||
|
Unavailable |
|||
|
#11
PIPE ASSY., L. SLIDE
51520-GK8-601
|
$79.30 | ||
|
Unavailable |
|||
|
#12
RACE, STEERING TOP CONE
53211-GC8-003
|
$17.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
RACE, STEERING CONE (LOWER) (MITSUBOSHI)
53212-GE8-670
Superseded by 53212-147-003
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#13
RACE, STEERING CONE (LOWER) (MITSUBOSHI)
53212-147-003
|
$9.98 | ||
|
Unavailable |
|||
|
#14
BALL, STEEL (#5) (5/32)
96211-05000
|
$1.12 | ||
|
Available to order. Add to View Price |
|||
