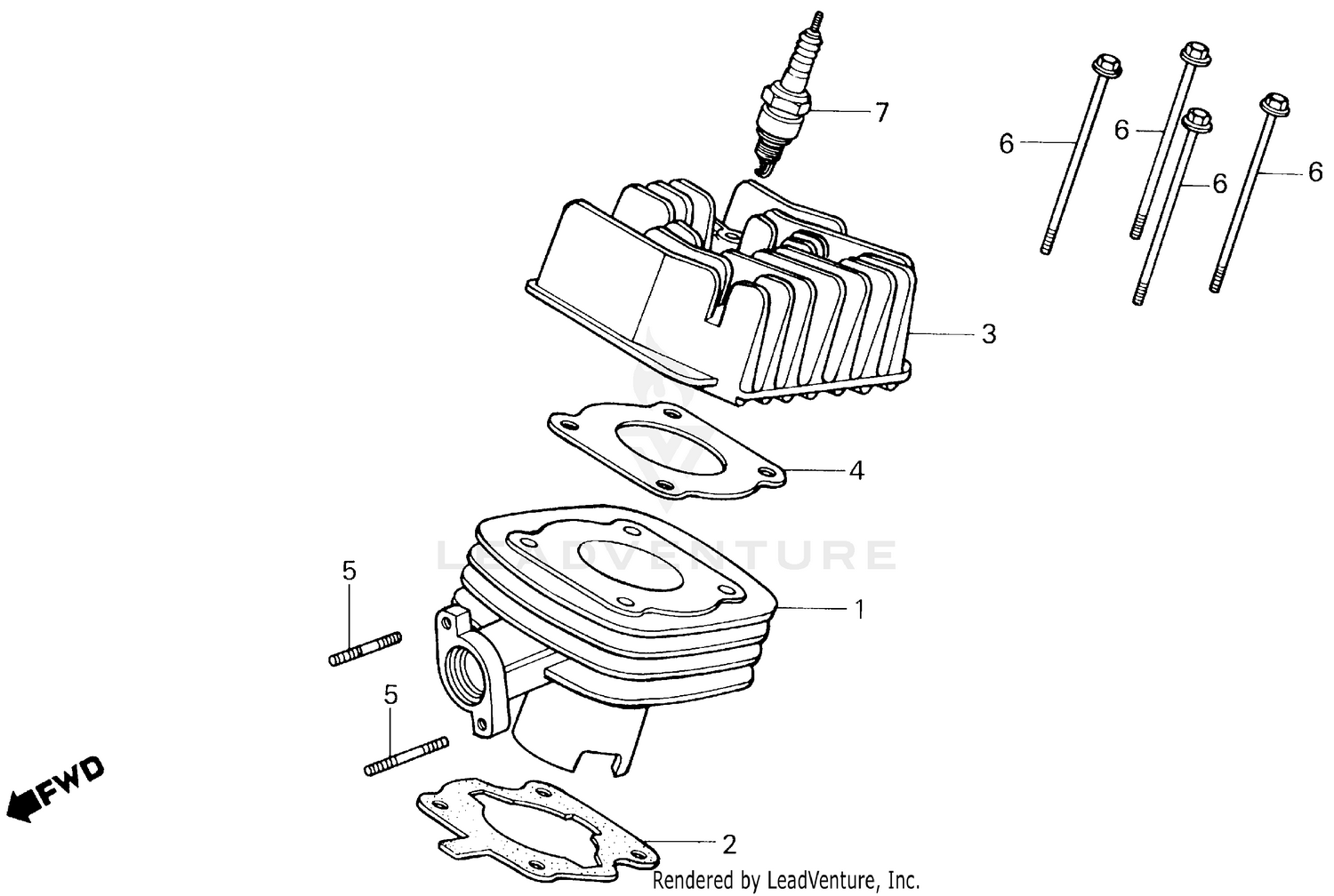

Cylinder + Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER A (0/+0.005) (NOT AVAILABLE)
12101-GK8-000
|
$146.92 | ||
|
Unavailable |
|||
|
#1
CYLINDER B (+0.005/+0.010) (NOT AVAILABLE)
12102-GK8-000
|
$150.59 | ||
|
Unavailable |
|||
|
#1
CYLINDER C (+0.010/+0.015)
12103-GK8-600
|
$156.76 | ||
|
Unavailable |
|||
|
#2
GASKET, CYLINDER
12191-GK8-000
Superseded by 12191-GK8-010
|
$2.77 | ||
|
Unavailable |
|||
|
#2
GASKET, CYLINDER
12191-GK8-010
|
$2.77 | ||
|
Unavailable |
|||
|
#3
CYLINDER HEAD
12201-GK8-780
|
$75.46 | ||
|
Unavailable |
|||
|
#4
GASKET, CYLINDER HEAD
12251-GN2-000
|
$7.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT 2, STUD (6X18)
92700-06027-10
Superseded by 92900-06018-1B
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT 2, STUD (6X18)
92700-06028-1B
Superseded by 92900-06018-1B
|
$1.85 | ||
|
Unavailable |
|||
|
#5
BOLT 2, STUD (6X18)
92900-06018-1B
|
$1.85 | ||
|
Unavailable |
|||
|
#6
BOLT, FLANGE (6X80)
95800-06080-00
Superseded by 95801-06080-00
|
$2.78 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE (6X80)
95801-06080-00
|
$2.78 | ||
|
Unavailable |
|||
|
#7
SPARK PLUG (BPR4HSA) (NGK)
98076-54715
|
$2.91 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPARK PLUG (BPR6HSA) (NGK)
98076-56715
|
$2.91 | ||
|
Unavailable |
|||
|
#7
SPARK PLUG (W20FPR-L) (DENSO)
98076-56725
|
$2.41 | ||
|
Unavailable |
|||
|
#7
SPARK PLUG (BPR8HSA) (NGK)
98076-58715
|
$2.91 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPARK PLUG (W24FPR-L) (DENSO)
98076-58725
|
$2.43 | ||
|
Unavailable |
|||
|
#7
SPARK PLUG (W14FPR-L) (DENSO)
98076-54727
Superseded by 98076-54756
|
$2.41 | ||
|
Unavailable |
|||
|
#7
SPARK PLUG (W14FPR-L) (DENSO)
98076-54756
|
$2.41 | ||
|
Unavailable |
|||
|
#7
SPARK PLUG (W20FPR) (DENSO)
98076-56727
Superseded by 98076-56756
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPARK PLUG (W20FPR) (DENSO)
98076-56756
|
$2.55 | ||
|
Unavailable |
|||
