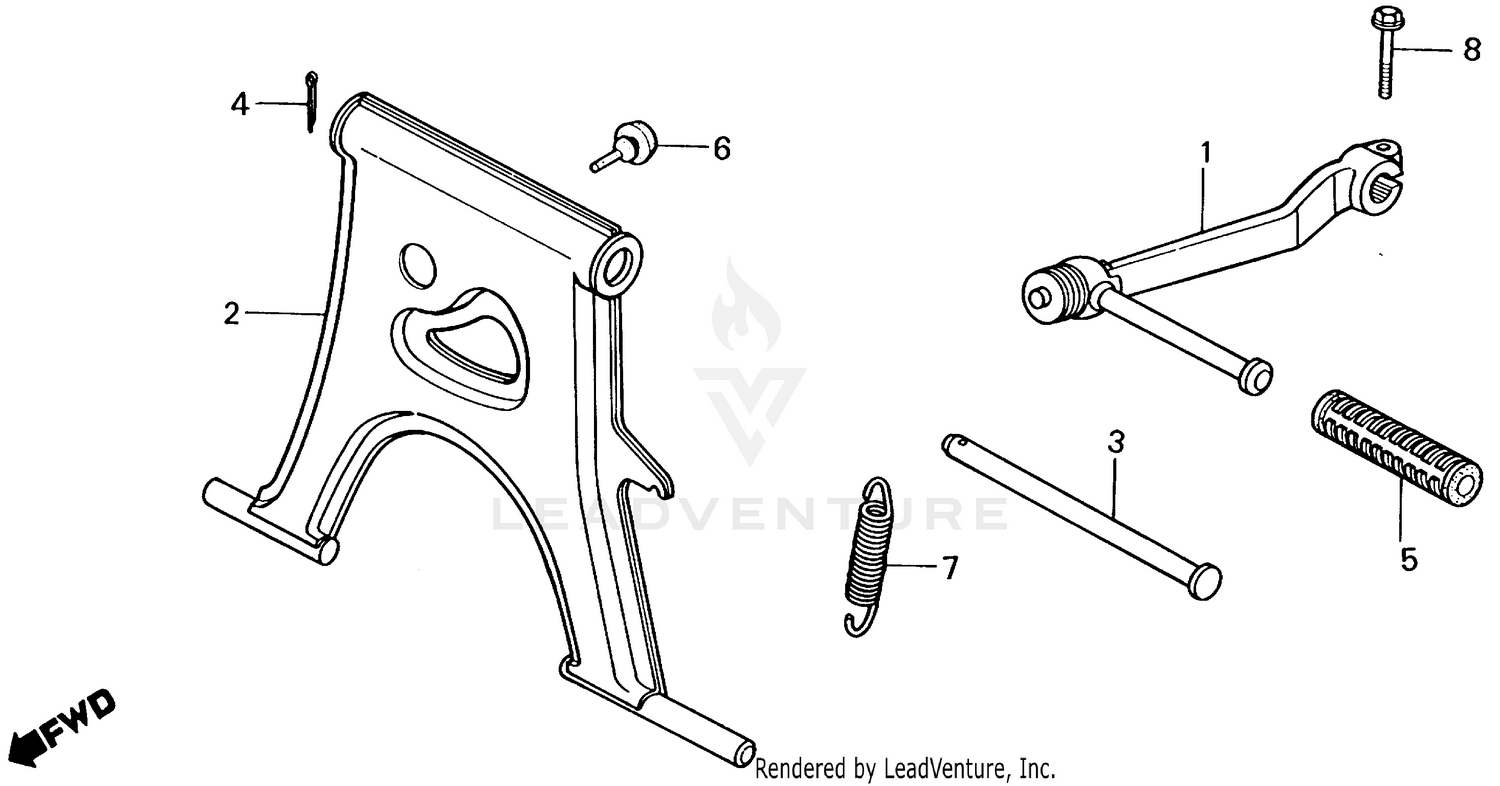

Stand Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ARM ASSY., KICK STARTER (NOT AVAILABLE)
28300-GK8-870
|
$45.69 | ||
|
Unavailable |
|||
|
#2
STAND, MAIN
50500-GK8-600
|
$34.88 | ||
|
Unavailable |
|||
|
#3
SHAFT, MAIN STAND (NOT AVAILABLE)
50503-GK8-000
|
$4.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, SPLIT (2.5X30)
94201-25200
Superseded by 94201-25300
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, SPLIT (2.5X30)
94201-25250
Superseded by 94201-25300
|
$1.08 | ||
|
Unavailable |
|||
|
#4
PIN, COTTER (2.5MM)
94201-25300
|
$1.08 | ||
|
Unavailable |
|||
|
#5
RUBBER A, KICK STARTER
95011-51000
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, STAND STOPPER
50505-GA7-730
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING D, MAIN STAND
95014-71402
|
$2.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X22)
95700-06022-00
Superseded by 95701-06022-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X22)
95701-06022-00
|
$1.88 | ||
|
Unavailable |
|||
