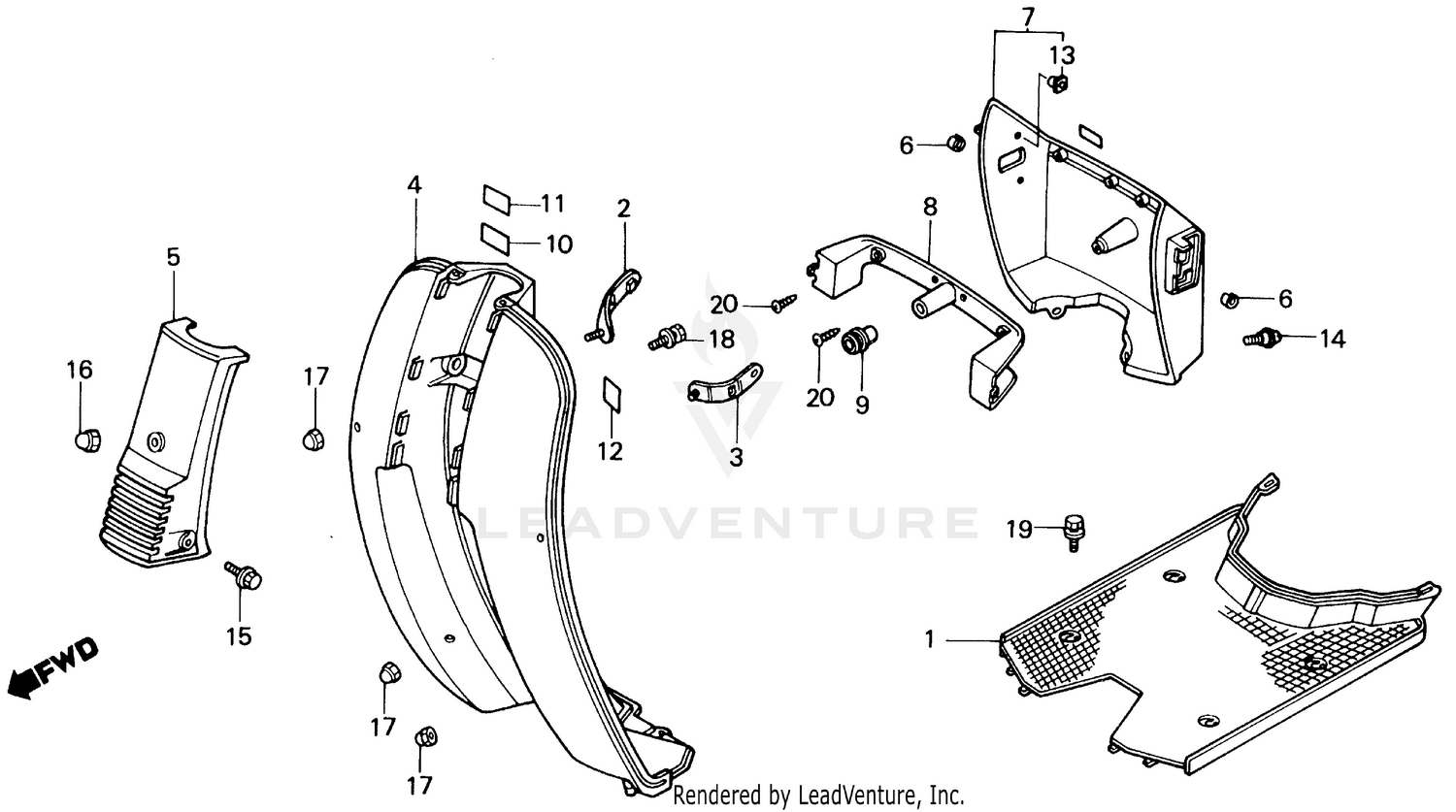

Step Floor 87 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FLOOR, STEP *R127* (SPARKLING RED) (NOT AVAILABLE)
50610-GK8-000ZF
|
$30.68 | ||
|
Unavailable |
|||
|
#1
FLOOR, STEP *NH148* (MU BLACK) (NOT AVAILABLE)
50610-GK8-000ZH
|
$42.85 | ||
|
Unavailable |
|||
|
#1
FLOOR, STEP *B108* (KRITI BLUE) (NOT AVAILABLE)
50610-GK8-000ZP
|
$38.86 | ||
|
Unavailable |
|||
|
#2
STAY, R. TURN SIGNAL (NOT AVAILABLE)
53128-GK8-600
|
$9.04 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, L. TURN SIGNAL (NOT AVAILABLE)
53129-GK8-600
|
$7.63 | ||
|
Unavailable |
|||
|
#4
SHIELD, LEG *NH148* (WOL) (MU BLACK)
64301-GK8-600ZA
|
$84.42 | ||
|
Unavailable |
|||
|
#4
SHIELD, LEG *R127* (WOL) (SPARKLING RED)
64301-GK8-600ZB
|
$84.42 | ||
|
Unavailable |
|||
|
#4
SHIELD, LEG *B108* (WOL) (KRITI BLUE)
64301-GK8-600ZC
|
$88.93 | ||
|
Unavailable |
|||
|
#5
COVER, FR. *R127* (SPARKLING RED) (NOT AVAILABLE)
64310-GK8-670ZB
|
$15.89 | ||
|
Unavailable |
|||
|
#5
COVER, FR. *NH148* (MU BLACK) (NOT AVAILABLE)
64310-GK8-670ZD
|
$14.62 | ||
|
Unavailable |
|||
|
#5
COVER, FR. *B108* (KRITI BLUE) (NOT AVAILABLE)
64310-GK8-670ZJ
|
$15.28 | ||
|
Unavailable |
|||
|
#6
COLLAR, FR. TURN SIGNAL
33609-GK4-620
|
$2.78 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, RR. SPLASH GUARD
80115-MC7-640
|
|||
|
Unavailable |
|||
|
#7
RACK, FR. (INNER) *NH148* (MU BLACK) (NOT AVAILABLE)
81130-GK8-600ZA
|
$50.61 | ||
|
Unavailable |
|||
|
#7
RACK, FR. (INNER) *R127* (SPARKLING RED) (NOT AVAILABLE)
81130-GK8-600ZB
|
$55.04 | ||
|
Unavailable |
|||
|
#7
RACK, FR. (INNER) *B108* (KRITI BLUE) (NOT AVAILABLE)
81130-GK8-600ZC
|
$55.04 | ||
|
Unavailable |
|||
|
#8
GUIDE, HARNESS *NH148* (MU BLACK)
81140-GK8-600ZA
|
$20.57 | ||
|
Unavailable |
|||
|
#8
GUIDE, HARNESS *R127* (SPARKLING RED) (NOT AVAILABLE)
81140-GK8-600ZB
|
$17.18 | ||
|
Unavailable |
|||
|
#8
GUIDE, HARNESS *B108* (KRITI BLUE)
81140-GK8-600ZC
|
$20.57 | ||
|
Unavailable |
|||
|
#9
GROMMET, WIRE
81141-GK8-600
|
$3.07 | ||
|
Unavailable |
|||
|
#10
LABEL, GLOVE BOX CAPACITY *NH0* (CHAMPIONSHIP WHITE)
81219-GN2-660ZA
|
$2.66 | ||
|
Unavailable |
|||
|
#10
LABEL, GLOVE BOX CAPACITY *NH1* (BLACK)
81219-GN2-660ZB
|
$2.66 | ||
|
Unavailable |
|||
|
#11
LABEL B, CAUTION *NH1* (BLACK)
87509-GK8-670ZA
|
$4.90 | ||
|
Unavailable |
|||
|
#11
LABEL B, CAUTION *NH0* (CHAMPIONSHIP WHITE)
87509-GK8-670ZB
|
$4.05 | ||
|
Unavailable |
|||
|
#12
LABEL, ACCESSORIES & LOADING
87512-GK8-600
|
$5.64 | ||
|
Unavailable |
|||
|
#13
NUT, SPECIAL (5MM)
90016-ZA5-000
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, HANDLE COVER SETTING
90103-GB6-930
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6MM)
90113-GF0-000
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, CAP (6MM)
90201-415-000
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NUT, FLANGE CAP (5MM)
90303-GC2-630
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT-WASHER (6X16)
93404-06016-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT-WASHER (6X16)
93494-06016-00
Superseded by 93404-06016-00
|
$1.70 | ||
|
Unavailable |
|||
|
#19
BOLT-WASHER (6X22)
93494-06022-00
Superseded by 93404-06022-00
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, TAPPING (4X8)
93901-24120
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
