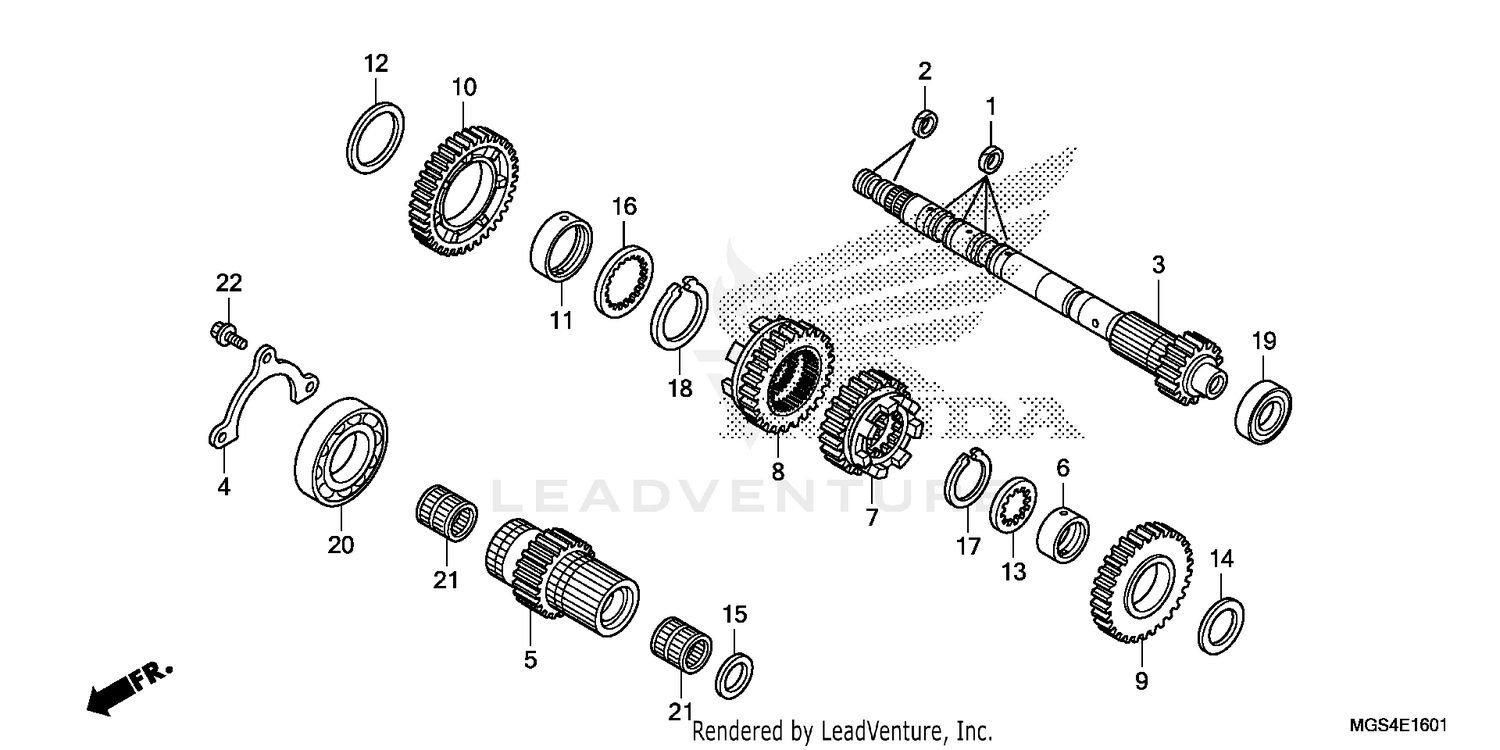

Transmission (nc700xd) (mainshaft) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RING, SEALING (26MM)
22814-PFL-003
|
$8.91 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL, RING (21.2MM)
22814-RGC-003
|
$12.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
MAINSHAFT (INNER) (15T)
23210-MGS-D20
|
$417.42 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, MAINSHAFT BEARING SETTING
23212-MGS-D30
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
MAINSHAFT (OUTER) (21T)
23231-MGS-D20
|
$337.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR (30X11.2)
23442-MS2-610
|
$27.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, MAINSHAFT THIRD (22T)
23451-MGS-D20
|
$125.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, MAINSHAFT FOURTH (25T)
23471-MGS-D20
|
$117.07 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, MAINSHAFT FIFTH (30T)
23491-MGS-D20
|
$109.11 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, MAINSHAFT SIXTH (37T)
23511-MGS-D20
|
$109.11 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR (40X43X10)
23512-MGS-D20
|
$14.42 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (40.2X51X1)
90411-MGE-D00
|
$13.47 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPLINE (30X36X1.5)
90452-MAT-000
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, THRUST (30.5MM)
90458-MAT-E00
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER (26X34X2)
90463-MGS-D20
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPLINE (40MM)
90493-MGE-D00
|
$9.22 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP (30MM)
90604-MM5-000
|
$5.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CIRCLIP (40MM)
90605-MGE-D00
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING, RADIAL BALL (6204U)
91006-MGS-D31
|
$19.80 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, RADIAL BALL (6008)
91023-MGS-D21
|
$27.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, NEEDLE (26X31X24) (NTN)
91102-KR0-003
|
$34.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
