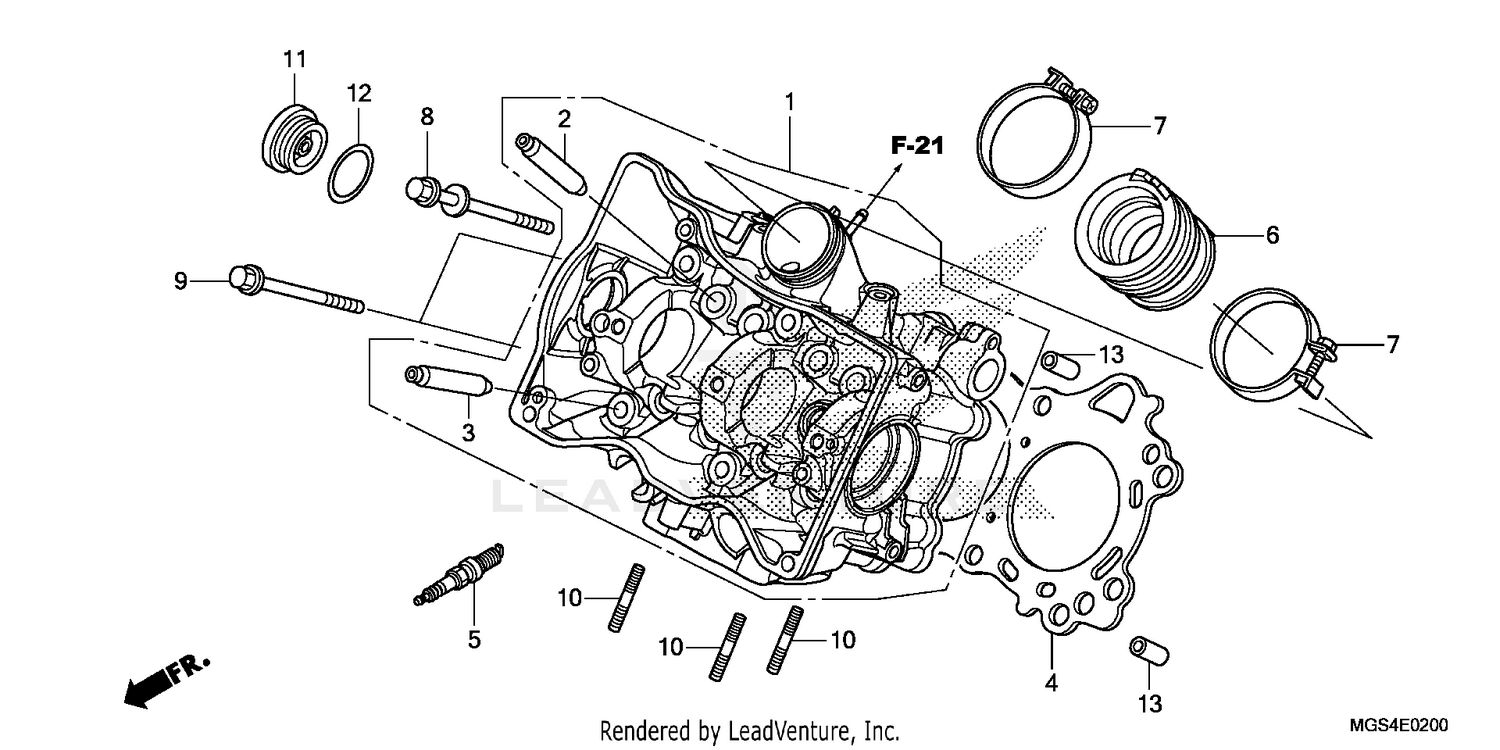

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD
12200-MGS-T50
|
$1,147.43 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE (OVER SIZE)
12204-MGS-305
|
$32.15 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, EX. VALVE (OVER SIZE)
12205-MGS-305
|
$30.27 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, CYLINDER HEAD
12251-MGS-D31
|
$62.76 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPARK PLUG (IFR6G-11K) (DENSO)
12290-RSH-003
|
$20.86 | ||
|
Available to order. Add to View Price |
|||
|
#6
INSULATOR, THROTTLE BODY
16211-MGS-D30
|
$22.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND, INSULATOR
16218-MGS-D30
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT-WASHER (9X130)
90007-MGS-D31
|
$10.64 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X35)
90010-GHB-700
Superseded by 96001-06035-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X35) (Honda Code 2112209)
96001-06035-00
|
$1.60 | ||
|
Unavailable |
|||
|
#10
BOLT, STUD (8X26)
90023-MGS-D30
|
$6.89 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP (36MM)
90087-MGS-D30
|
$17.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING (35X3) (ARAI) SEAL, VALVE STEM (NOK)
91303-KK3-830
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN A, DOWEL (12X20)
94301-12200
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
