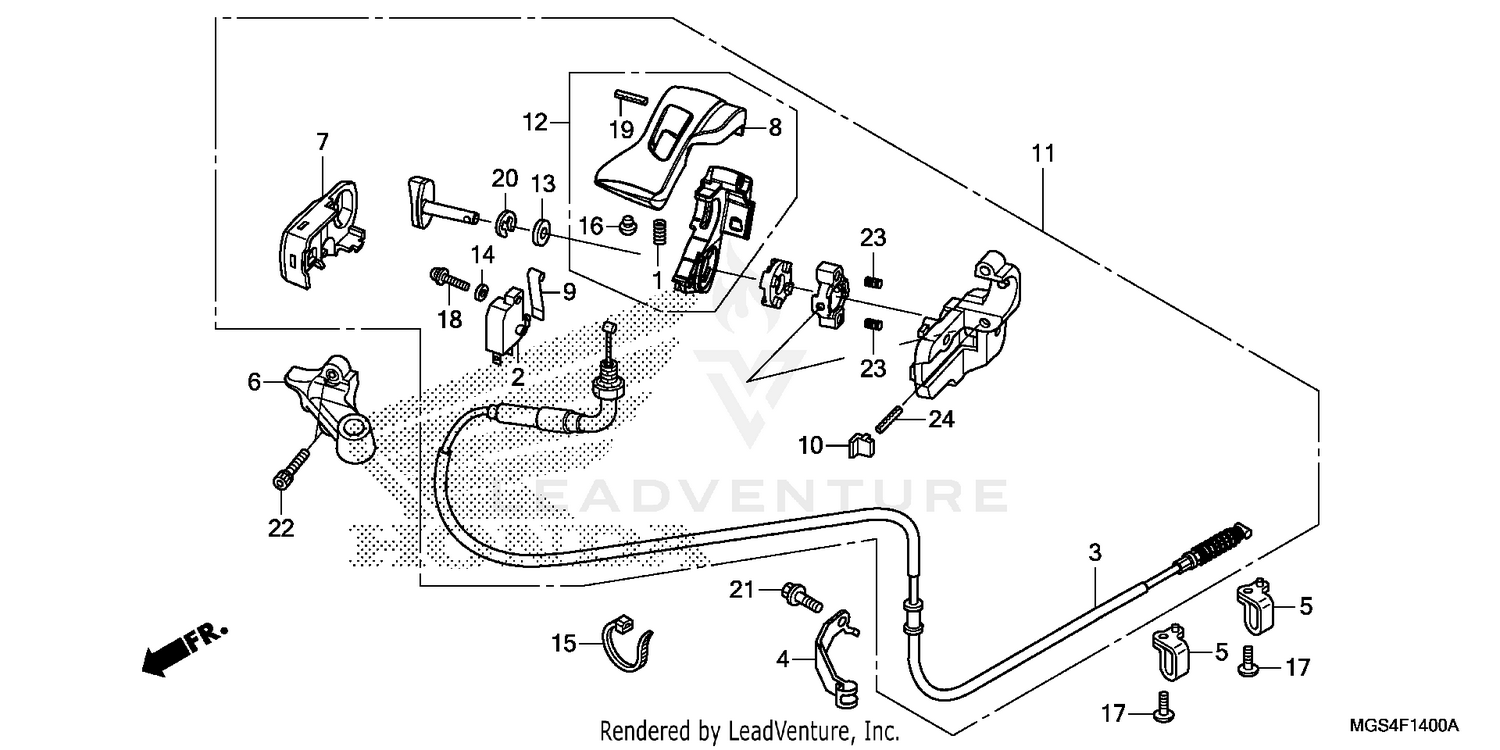

Parking Brake Lever Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPRING, BALL SETTING
24271-743-000
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#2
SWITCH ASSY., FR. STOP
35340-MGS-D31
|
$22.42 | ||
|
Available to order. Add to View Price |
|||
|
#3
CABLE, PARKING BRAKE
43450-MGS-D51
|
$63.27 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP, PARKING BRAKE
43455-MGS-D50
|
$10.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, PARKING BRAKE
43456-MGS-D70
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOLDER (UPPER)
47111-MGS-D50
|
$62.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, HOLDER
47117-MGS-D50
|
$4.36 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER, PARKING TOP
47152-MGS-D50
Superseded by 47152-MGS-D51
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER, PARKING TOP
47152-MGS-D51
|
$12.67 | ||
|
Unavailable |
|||
|
#9
SPRING, SWITCH
47154-MGE-D00
|
$9.71 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, HOLDER (LOWER)
47156-MGE-D00
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEVER ASSY., PARKING
47200-MGS-D50
|
$490.76 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER, PARKING
47210-MGS-D50
Superseded by 47210-MGS-D51
|
$51.09 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER, PARKING
47210-MGS-D51
|
$51.09 | ||
|
Unavailable |
|||
|
#13
WASHER (10.2MM)
90401-430-000
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLAIN (4X8)
90515-GN5-910
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLAIN (4X8)
90515-046-810
Superseded by 90515-GN5-910
|
$1.42 | ||
|
Unavailable |
|||
|
#15
BAND, WIRE (165MM) (BLACK)
90651-KV6-003
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG, CHANGE REINFORCEMENT
90801-SB0-000
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN (5X16) SCREW, PAN (4X20)
93500-05016-0G
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW-WASHER (4X14)
93892-04014-07
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, SPRING (3X28) (NOT AVAILABLE)
94305-30283
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#20
E-RING (9MM) (NOT AVAILABLE)
94540-09018
|
$4.03 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT, SOCKET (6X20)
96600-06020-07
|
$1.18 | ||
|
Unavailable |
|||
|
#23
SPRING, PLUNGER
47155-MGE-D00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, SPRING (3X22)
94305-30223
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
