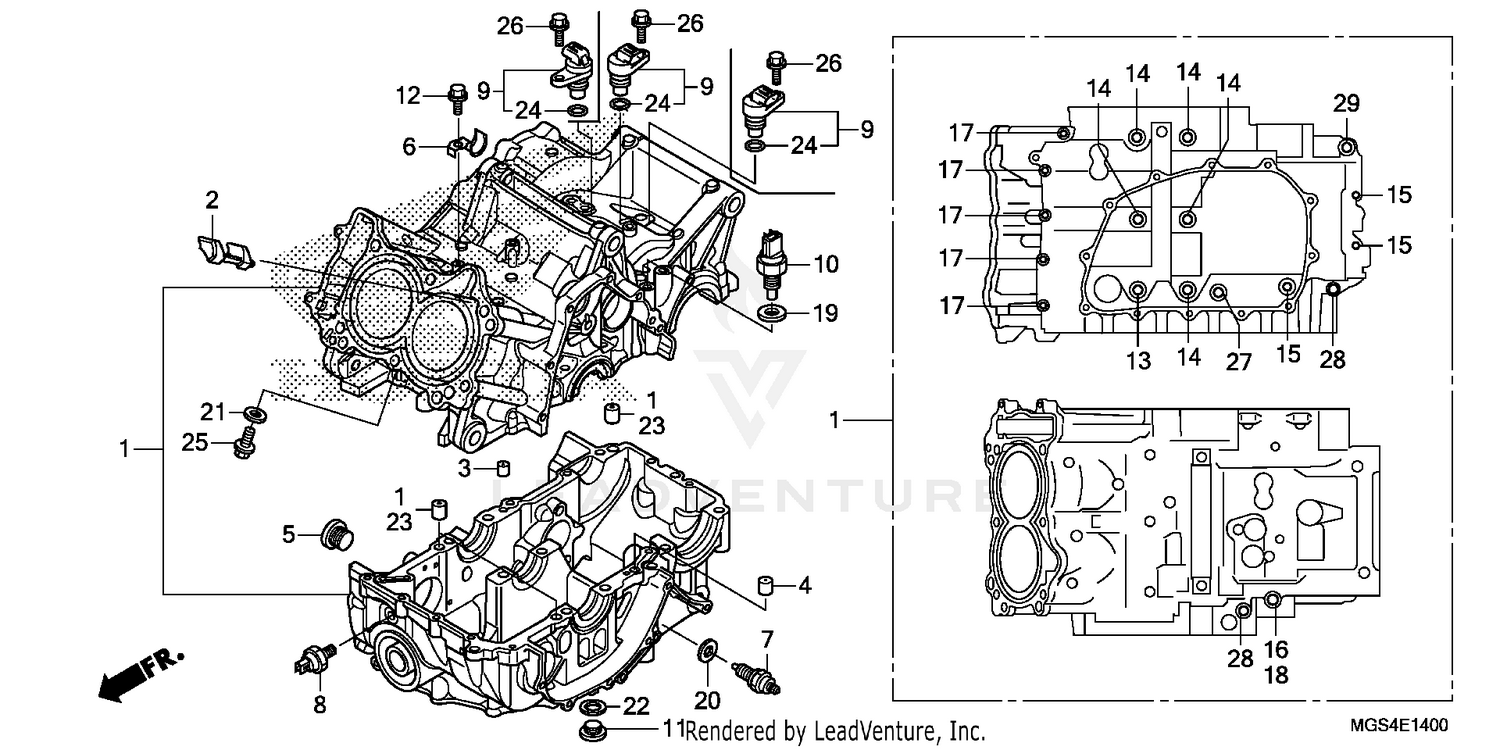

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11000-MGS-D50
|
$2,987.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, PARTITION
11103-MGS-D31
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
ORIFICE (1.1MM)
11207-MFL-000
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
ORIFICE (1.5MM)
11207-MGS-D30
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, SEALING (20MM)
12208-PR3-000
|
$9.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, FUEL HOSE
17640-MGS-D30
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH ASSY., NEUTRAL
35600-MFJ-D01
|
$25.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
SWITCH ASSY., OIL PRESSURE
37241-RNA-A01
|
$91.12 | ||
|
Available to order. Add to View Price |
|||
|
#9
SENSOR ASSY., SPEED
37700-MGS-D31
|
$191.27 | ||
|
Available to order. Add to View Price |
|||
|
#10
SENSOR ASSY., THERMOSTAT OIL (Honda Code 8192445)
37750-KPH-701
|
$61.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, SEALING (12X8)
90002-RGA-000
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X16)
90004-MGS-D30
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (9X150)
90015-MGS-D31
|
$15.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (9X125)
90016-MFA-D01
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (8X100)
90021-MGS-D30
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X32)
90022-MGS-D30
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SEALING (8MM)
90442-028-000
|
$2.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
WASHER, SEALING (10.2MM)
90443-MB0-000
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, NEUTRAL
90443-MJ6-000
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
WASHER (12MM)
90545-KF0-000
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, DOWEL (10X16) (Honda Code 3906971)
90701-MV9-670
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING (14.8X2.4) (ARAI)
91303-KF0-003
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X18) BOLT, HEX. (6X18)
95701-06018-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT, FLANGE (8X45)
95701-08045-00
|
$1.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BOLT, FLANGE (8X70)
95701-08070-00
|
$3.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BOLT, FLANGE (10X70)
95701-10070-00
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
