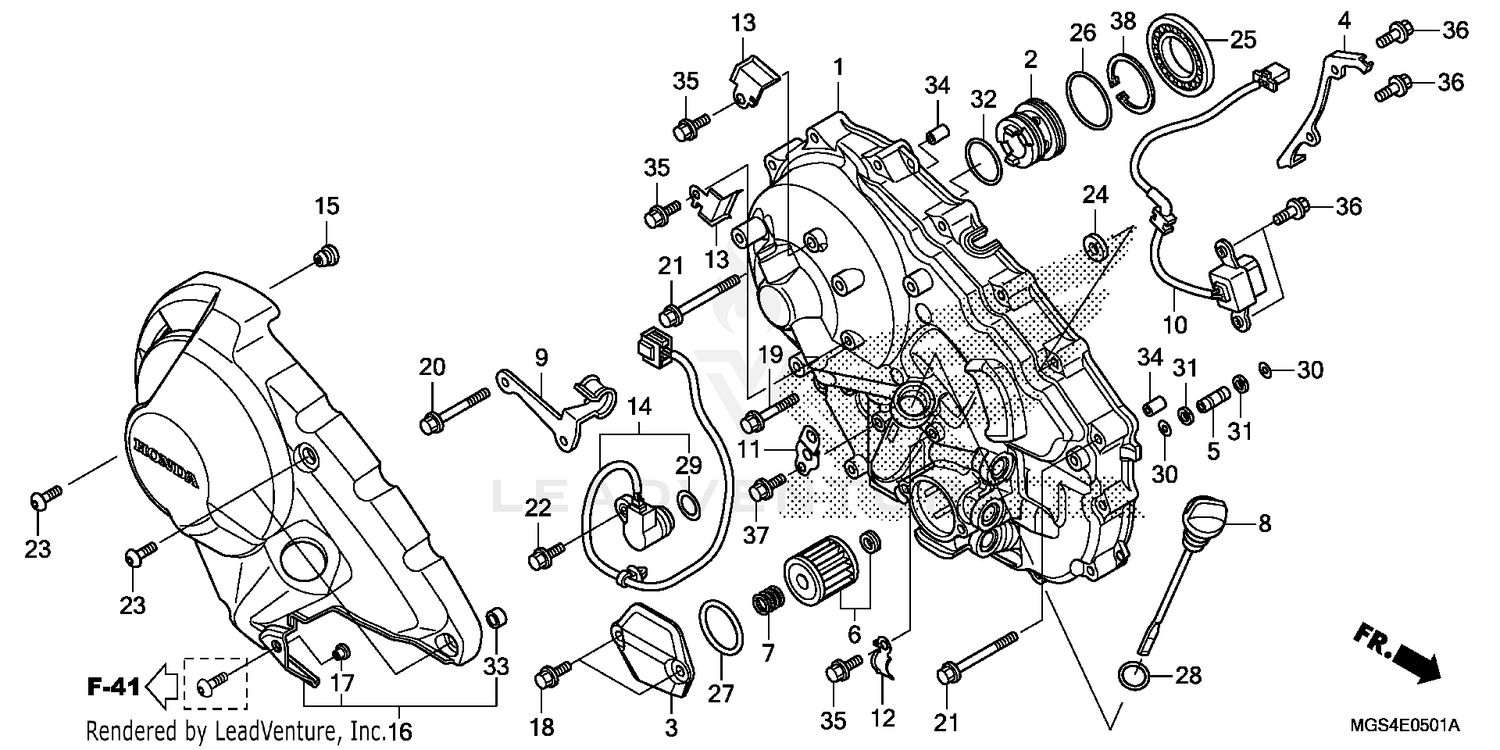

Right Crankcase Cover (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, R. CRANKCASE
11330-MGS-D50
|
$393.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR, OIL GUIDE
11332-MGS-D20
|
$30.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, OIL FILTER
11337-MGS-D50
|
$68.44 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP, SOLENOID CORD
11339-MGS-D20
|
$11.33 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE, OIL PASSAGE
15104-MGS-D20
|
$11.16 | ||
|
Available to order. Add to View Price |
|||
|
#6
ELEMENT, OIL FILTER
15412-MGS-D21
|
$10.26 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
SPRING, OIL FILTER
15414-MEB-670
|
$3.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
DIPSTICK, OIL
15650-MGS-D20
|
$33.69 | ||
|
Available to order. Add to View Price |
|||
|
#9
STAY, FUEL HOSE
22821-MGS-D20
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#10
GENERATOR ASSY., PULSE (TOYO)
30300-MGS-D21
|
$135.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
STAY, HARNESS CLIP (B)
32171-MGS-D20
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAY, HARNESS
32172-MGS-D70
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#13
STAY, HARNESS
32173-MGS-D70
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
SENSOR ASSY., ANGLE
38810-MGS-D51
|
$274.40 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG, HANDLE COVER (LOWER)
53125-174-670
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, R. ENGINE SIDE *NH167MU* (IRON NAIL SILVER METALLIC-U)
64520-MGS-D50ZB
|
$97.22 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR, FENDER SETTING
80103-MCJ-750
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X16) (NSHF)
90006-GHB-630
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X28) (NSHF)
90006-GHB-680
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X40) (NSHF)
90006-GHB-710
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X50) (NSHF) (Honda Code 7498413)
90006-GHB-730
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, KNOCK (6MM)
90011-MGE-D00
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, SPECIAL (6X17)
90085-MCZ-000
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SEALING (6MM)
90488-425-000
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, RADIAL BALL (40X68X7.5)
91029-MGS-D21
|
$24.16 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING (35X2.2)
91302-MGS-D20
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING (39.8X2.2)
91302-PA9-003
Superseded by 91302-K0G-911
|
$5.28 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING (18X3)
91307-035-000
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
O-RING (16.5X2.5)
91310-MGE-D01
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-RING (7.7X1.9)
91311-RFH-003
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#31
RING, BACK-UP (8X11)
91315-MGS-D20
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING (29X2.4) (NOK)
91344-PC9-004
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#33
COLLAR
91502-MGS-D50
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#34
PIN, DOWEL (8X20) (Honda Code 1417369)
94301-08200
|
$2.35 | ||
|
Unavailable |
|||
|
#35
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
BOLT, FLANGE (6X16) (Honda Code 2410892)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
CIRCLIP (INNER) (40)
94520-40150
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
