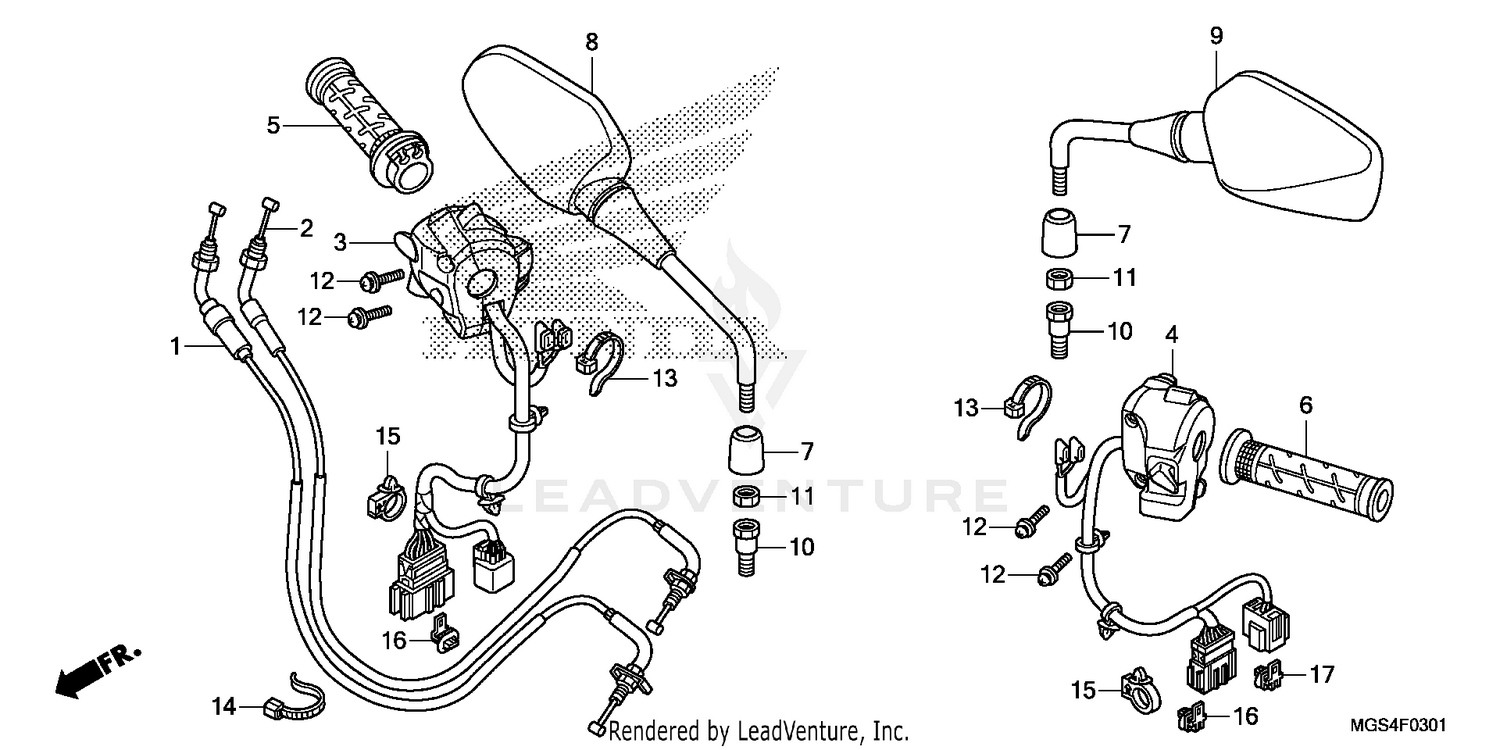

Switch@cable (nc700xd) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CABLE A, THROTTLE
17910-MGS-D51
|
$39.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
CABLE B, THROTTLE
17920-MGS-D51
|
$39.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWITCH ASSY., ENGINE STOP & D-N MODE
35130-MGS-D52
|
$195.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
SWITCH ASSY., TURN SIGNAL & HAND SHIFT
35200-MGS-A53
|
$226.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
GRIP, THROTTLE
53140-MGS-D30
|
$34.33 | ||
|
Available to order. Add to View Price |
|||
|
#5
GRIP, THROTTLE
53140-MGS-305
Superseded by 53140-MGS-D30
|
$34.33 | ||
|
Unavailable |
|||
|
#6
GRIP, L. HANDLE
53150-MGS-D30
|
$14.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
GRIP, L. HANDLE
53150-MGS-305
Superseded by 53150-MGS-D30
|
$14.69 | ||
|
Unavailable |
|||
|
#7
COVER, LOCK NUT
88130-MFG-D00
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#8
MIRROR, R. BACK
88210-MGS-D30
|
$99.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
MIRROR, R. BACK
88210-MGS-305
Superseded by 88210-MGS-D30
|
$99.80 | ||
|
Unavailable |
|||
|
#9
MIRROR, L. BACK
88220-MGS-D30
|
$99.80 | ||
|
Available to order. Add to View Price |
|||
|
#9
MIRROR, L. BACK
88220-MGS-305
Superseded by 88220-MGS-D30
|
$99.80 | ||
|
Unavailable |
|||
|
#10
BOLT, ADAPTER (10MM)
90130-MGS-D30
|
$9.44 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, HEX. (10MM) (LEFT HAND THREAD)
90310-MGS-D30
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW-WASHER (5X16)
90508-MGS-D30
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAND, WIRE
90650-KW3-000
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND, WIRE (165MM) (BLACK)
90651-KV6-003
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP, HARNESS
90652-HC4-003
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP, CONNECTOR (BLACK)
91533-MGS-D30
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP, CONNECTOR (BLACK) (Honda Code 7386865)
91565-SEL-003
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
