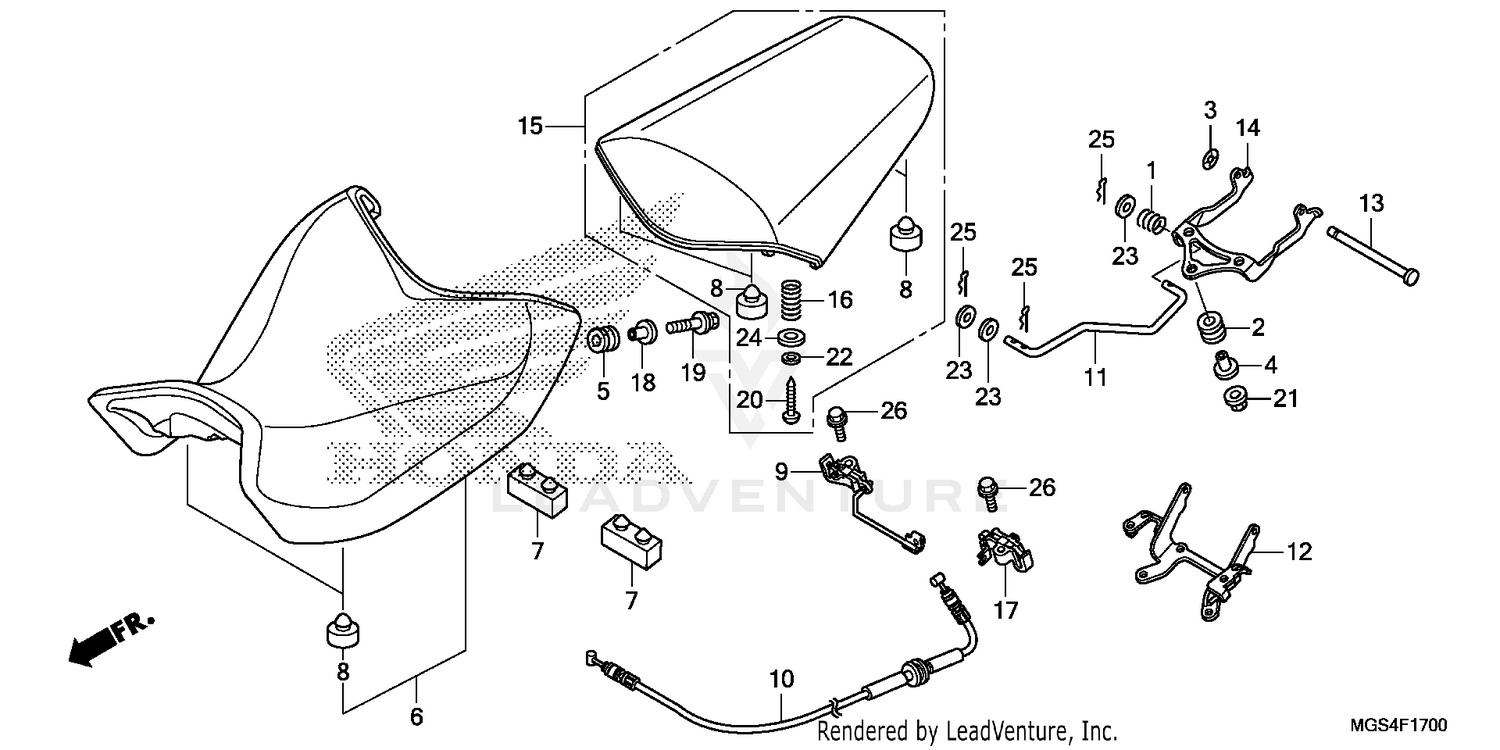

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPRING, OIL THROUGH
15447-149-000
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, AIR CLEANER MOUNTING
17227-GS3-000
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, PUSH (6MM)
18316-HW1-671
|
$0.89 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, SIDE COVER
61104-435-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, HEADLIGHT CASE MOUNTING
61304-415-000
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAT ASSY., SINGLE
77100-MGS-D31
Superseded by 77100-MGS-D32
|
$320.71 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAT ASSY., SINGLE
77100-MGS-D32
|
$320.71 | ||
|
Unavailable |
|||
|
#7
RUBBER, SEAT SETTING
77205-MFE-670
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, SEAT SETTING
77206-GF0-000
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
LOCK A, SEAT CATCH
77220-MGS-D31
|
$84.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
CABLE, SEAT LOCK
77241-MGS-D31
|
$29.47 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROD, PILLION SEAT
77242-MGS-D30
|
$32.36 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAY, PILLION SEAT HINGE
77250-MGS-D30
|
$39.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, SEAT HINGE
77251-MGS-D30
|
$8.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
ARM, SEAT HINGE
77255-MGS-D30
|
$46.09 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAT ASSY., PILLION
77300-MGS-D31
Superseded by 77300-MGS-D32
|
$325.69 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, SEAT LOCK
77302-MEE-000
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
LOCK B, SEAT CATCH
77320-MGS-D31
|
$66.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR (6.2X12)
90501-MFA-D00
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT-WASHER (6X25)
93404-06025-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, TAPPING (4X12)
93913-14220
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, FLANGE (6MM)
94050-06080
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
WASHER, PLAIN (4MM) (Honda Code 0331462)
94101-04800
|
$1.03 | ||
|
Unavailable |
|||
|
#23
WASHER, PLAIN (5MM)
94103-05800
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLAIN (8MM)
94103-08800
|
$0.98 | ||
|
Unavailable |
|||
|
#25
PIN, LOCK (5MM)
94251-05000
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X18)
96001-06018-07
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
