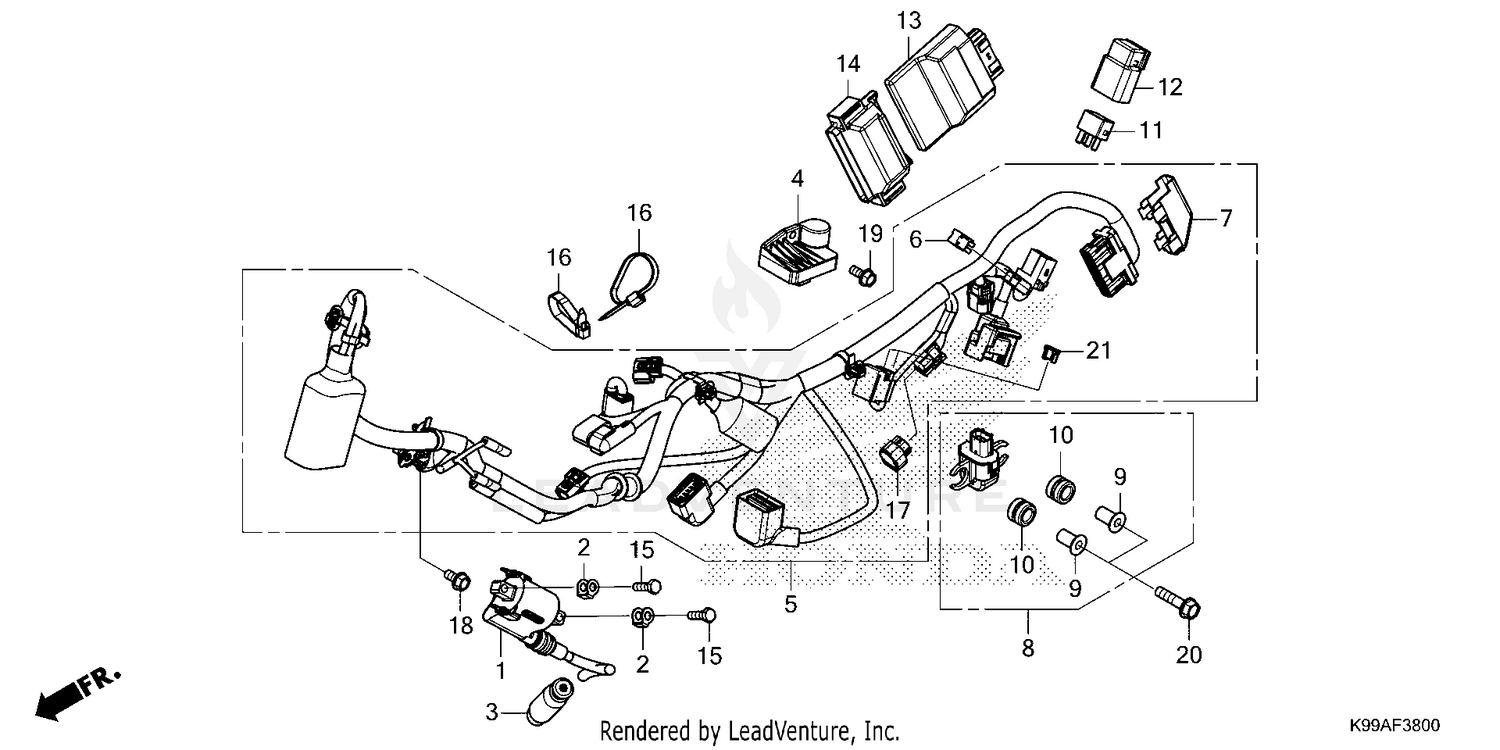

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COIL, IGNITION
30510-K99-A72
|
$39.76 | ||
|
Unavailable |
|||
|
#2
SPACER, IGNITION COIL (NOT AVAILABLE)
30520-K3H-B00
|
$1.67 | ||
|
Unavailable |
|||
|
#3
CAP ASSY., NOISE SUPPRESSOR (NGK)
30700-K31-901
|
$20.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
RECTIFIER, REGULATOR
31600-K99-A71
|
$111.20 | ||
|
Unavailable |
|||
|
#5
WIRE HARNESS
32100-K99-A70
|
$230.35 | ||
|
Unavailable |
|||
|
#6
CONNECTOR, DIODE (2P) (3A)
32146-S84-003
|
$18.03 | ||
|
Available to order. Add to View Price |
|||
|
#7
CVR (WPC 48P 025 F)
32153-K0E-D51
|
$12.11 | ||
|
Unavailable |
|||
|
#8
SENSOR ASSY., BANK ANGLE
35160-KVS-J01
|
$49.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
35162-KVS-J00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GROMMET
35163-KRE-G00
|
$24.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
RELAY, POWER (MICRO ISO 4P)
38501-KSS-B31
|
$48.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SUSPENSION, POWER RELAY
38506-KVS-600
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#13
PGM-FI UNIT
38770-K99-A71
|
$99.45 | ||
|
Unavailable |
|||
|
#14
CUSHION, PGM-FI UNIT (NOT AVAILABLE)
38771-K1K-D30
|
$2.18 | ||
|
Unavailable |
|||
|
#15
BOLT, HEX. (6X20)
90102-KVS-J00
Superseded by 92101-06020-4J
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEX. (6X20)
92101-06020-4J
|
$1.58 | ||
|
Unavailable |
|||
|
#16
BAND, WIRE
90651-KRH-900
|
$0.25 | ||
|
Unavailable |
|||
|
#17
CAP, DUMMY (6P) (RED)
91771-MKK-H11
|
$25.67 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#21
FUSE, MINI (5A) (Honda Code 5026521)
98200-40500
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
