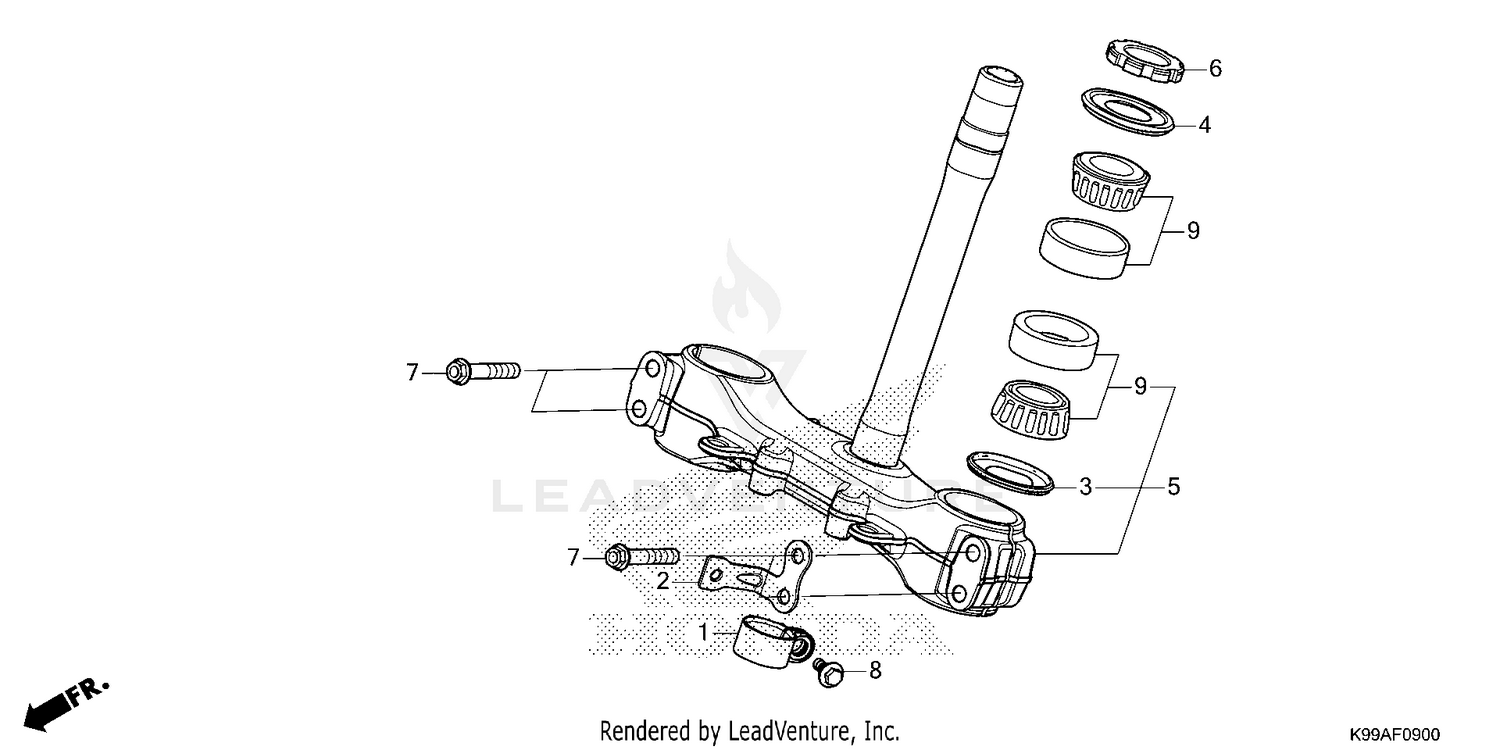

Steering Stem Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GUIDE, BRAKE HOSE
45463-K3W-B00
|
$7.98 | ||
|
Unavailable |
|||
|
#2
STAY COMP (LOWER)
45464-K99-A70
|
$7.16 | ||
|
Unavailable |
|||
|
#3
DUST SEAL, STEERING HEAD (ARAI)
53214-KA4-701
|
$8.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
DUST SEAL, STEERING (UPPER)
53214-KZZ-901
|
$7.38 | ||
|
Available to order. Add to View Price |
|||
|
#5
STEM SUB-ASSY., STRG
53219-K99-A71
|
$179.36 | ||
|
Unavailable |
|||
|
#6
THREAD, STEERING HEAD TOP
53229-KPS-900
|
$12.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE (8X45)
90107-KZ4-J40
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6MM) (NOT AVAILABLE)
90113-K3W-B00
|
$5.55 | ||
|
Unavailable |
|||
|
#9
BEARING, HEAD PIPE (UPPER) (NACHI)
91015-425-831
Superseded by 91015-425-832
|
$37.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BEARING, HEAD PIPE (UPPER) (NACHI)
91015-425-832
|
$37.56 | ||
|
Unavailable |
|||
