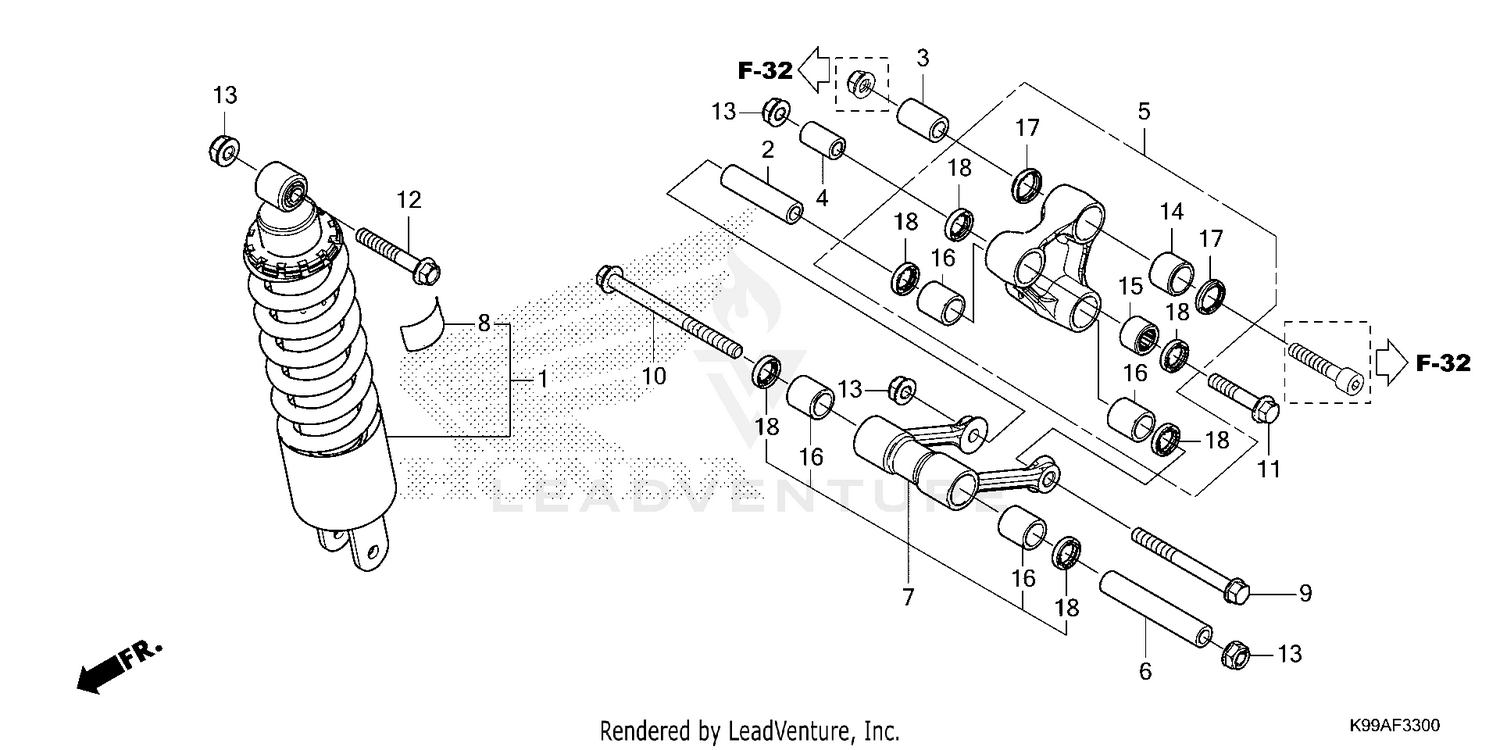

Rear Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION ASSY., RR.
52400-K99-A71
|
$509.69 | ||
|
Unavailable |
|||
|
#2
COLLAR B, CUSHION ARM (NOT AVAILABLE)
52462-K99-A70
|
$6.11 | ||
|
Unavailable |
|||
|
#3
COLLAR B, CUSHION ARM
52463-KPE-900
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR C, CUSHION ARM
52464-KPE-900
|
$6.11 | ||
|
Available to order. Add to View Price |
|||
|
#5
ARM SUB-ASSY.
52465-K99-A70
|
$216.40 | ||
|
Unavailable |
|||
|
#6
COLLAR, CONNECTING ROD
52472-K99-A00
|
$13.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
CONN ROD SUB-ASSY.
52475-K99-A70
|
$143.20 | ||
|
Unavailable |
|||
|
#8
LABEL, RR. DAMPER
87516-MBL-610
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (10X100)
90101-KPS-900
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (10X128)
90102-K99-A00
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (10X52)
90107-K99-A00
|
$4.18 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (10X65)
90157-KB7-940
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, U (10MM)
90304-KGH-901
|
$3.96 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BEARING (20X26X20)
91071-KPE-901
|
$7.56 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING (17X24X17)
91072-KPE-901
|
$11.87 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING (17X24X25)
91073-KPE-901
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#17
DUST SEAL (20X26X4.5) (ARAI)
91254-KS6-003
|
$11.15 | ||
|
Available to order. Add to View Price |
|||
|
#18
DUST SEAL (17X24X5) (ARAI)
91262-KV3-831
|
$7.78 | ||
|
Available to order. Add to View Price |
|||
