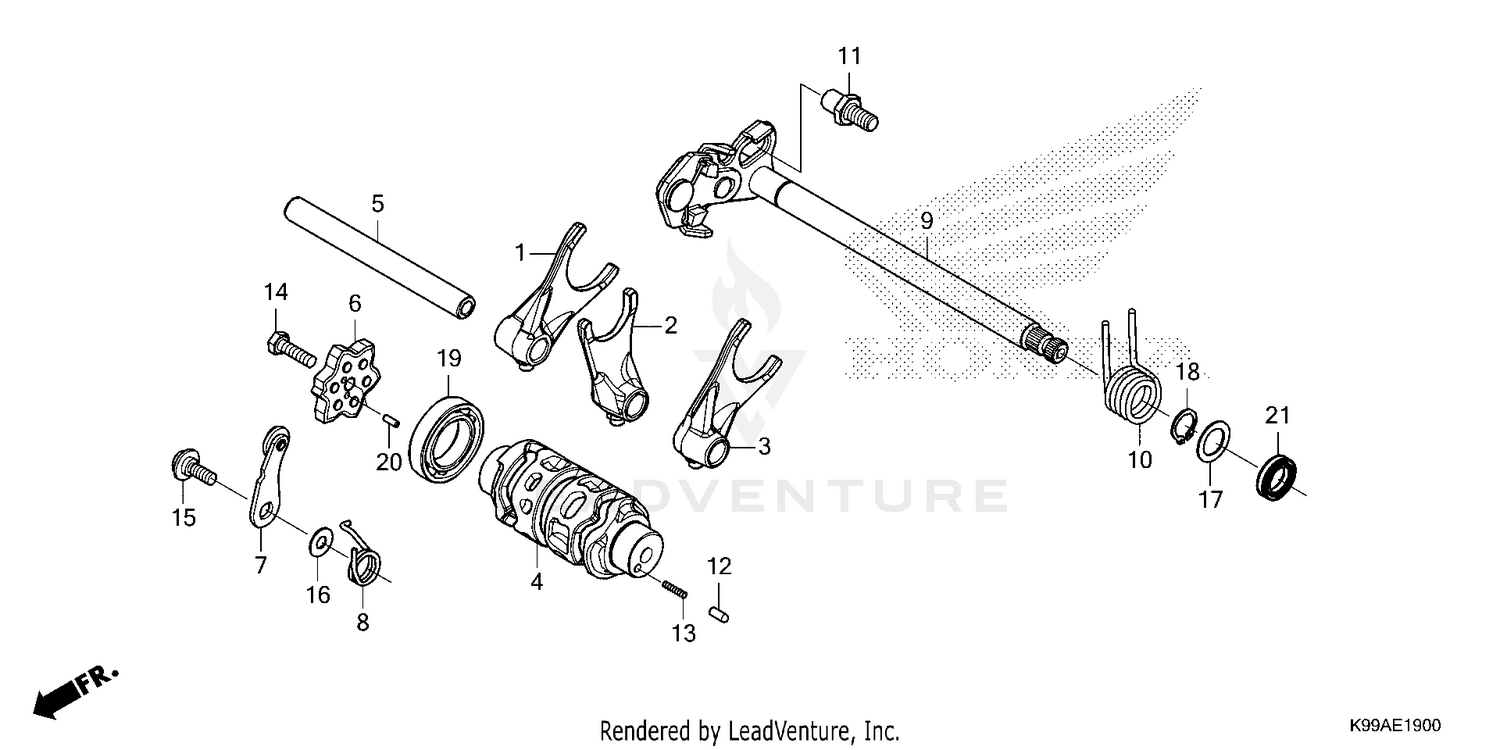

Gearshift Drum Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK, R. GEARSHIFT
24211-K2K-B00
|
$46.84 | ||
|
Unavailable |
|||
|
#2
FORK
24212-K2K-B00
|
$46.84 | ||
|
Unavailable |
|||
|
#3
FORK, L. GEARSHIFT
24213-K2K-B00
|
$46.84 | ||
|
Unavailable |
|||
|
#4
DRUM, GEARSHIFT (NOT AVAILABLE)
24301-K2K-D00
|
$44.87 | ||
|
Unavailable |
|||
|
#5
SHAFT, GEARSHIFT FORK
24321-KYJ-900
|
$12.02 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, GEARSHIFT DRUM STOPPER
24410-KTT-900
|
$17.85 | ||
|
Unavailable |
|||
|
#7
STOPPER, GEARSHIFT DRUM
24430-KRM-B10
|
$14.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
STOPPER, GEARSHIFT DRUM
24430-KTT-900
Superseded by 24430-KRM-B10
|
$14.15 | ||
|
Unavailable |
|||
|
#8
SPRING, DRUM STOPPER
24435-K31-900
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPINDLE, GEARSHIFT (NOT AVAILABLE)
24610-K2K-B00
|
$39.20 | ||
|
Unavailable |
|||
|
#10
SPRING, GEARSHIFT RETURN
24651-KRM-840
|
$3.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, SHIFT RETURN SPRING
24652-KRM-840
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, CHANGE SWITCH CONTACT
35751-KPH-900
|
$0.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, CHANGE SWITCH CONTACT
35752-KRM-840
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEX. (6X20)
90003-KVS-900
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIVOT, SHIFT DRUM STOPPER ARM
90022-KRM-840
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, DRUM STOPPER
90417-KRM-840
Superseded by 90417-360-000
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, DRUM STOPPER
90417-360-000
|
$1.98 | ||
|
Unavailable |
|||
|
#17
WASHER (14MM)
90457-KRM-840
|
$0.84 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP (OUTER) (14MM)
90606-KRM-840
Superseded by 94510-14000
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP (OUTER) (14MM)
94510-14000
|
$1.07 | ||
|
Unavailable |
|||
|
#19
BEARING, RADIAL BALL (6905) (NSK)
91009-K31-901
|
$15.91 | ||
|
Available to order. Add to View Price |
|||
|
#20
ROLLER (3X8.5)
91112-KRH-900
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL (14X22X5) (ARAI)
91203-KSP-911
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
