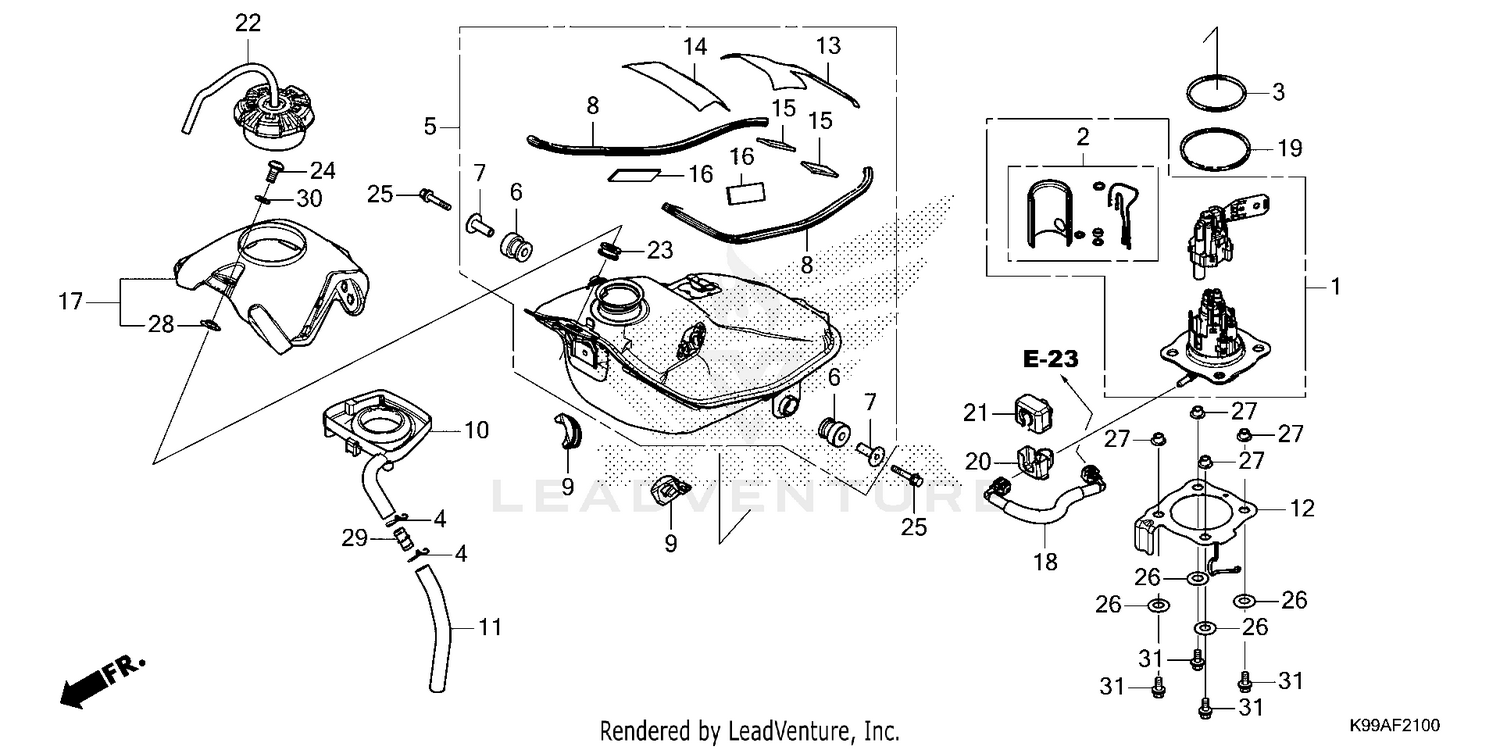

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP UNIT ASSY., FUEL (MSDS)
16700-K99-A01
|
$315.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
FILTER SET
16707-K45-N01
|
$28.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING (3.7X62.9)
16711-K99-A01
|
$41.25 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLIP, BREATHER TUBE
17316-KRH-D20
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
TANK ASSY., FUEL
17500-K99-A70
|
$419.69 | ||
|
Unavailable |
|||
|
#6
RUBBER, TANK MOUNTING RUBBER, FUEL TANK SETTING
17508-GBF-830
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, TANK SETTING
17509-KPS-900
|
$12.09 | ||
|
Available to order. Add to View Price |
|||
|
#8
TRIM, FUEL TANK
17515-K99-A70
|
$7.49 | ||
|
Unavailable |
|||
|
#9
RUBBER, TANK MOUNTING
17522-K99-A00
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#10
TRAY, FUEL
17523-K99-A00
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#11
TUBE, FUEL DRAIN
17525-K99-A00
|
$9.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, SETTING
17527-K99-A00
|
$19.58 | ||
|
Available to order. Add to View Price |
|||
|
#13
FILM A, PROTECTOR
17534-K99-A00
|
$7.72 | ||
|
Available to order. Add to View Price |
|||
|
#14
FILM B, PROTECTOR
17535-K99-A00
|
$12.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
RUBBER A
17536-K99-A01
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#16
RUBBER A (20X70)
17536-K99-A70
|
$26.62 | ||
|
Unavailable |
|||
|
#17
COVER, CENTER TANK
17560-K99-A00
|
$12.51 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE, FUEL FEED
17571-K99-A01
|
$175.89 | ||
|
Available to order. Add to View Price |
|||
|
#19
DUST SEAL
17574-K99-A01
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, FUEL CONNECTOR
17575-K99-A00
|
$2.78 | ||
|
Available to order. Add to View Price |
|||
|
#21
RUBBER, FUEL CONNECTOR
17576-KRN-A90
|
$7.40 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP, FUEL FILLER
17620-K99-B02
|
$242.60 | ||
|
Unavailable |
|||
|
#23
RUBBER, GRIP MOUNTING
50317-MCG-000
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, SOCKET (8X16)
90128-KBP-900
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X40)
90137-KA3-830
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, CONICAL SPRING FUEL PUMP
90502-MEN-A30
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR, FUEL PUMP
90503-K99-A00
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#28
COLLAR, FR. TANK
90504-K99-A00
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#29
JOINT, TUBE
91463-393-780
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLAIN (8MM)
94101-08000
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X16) (Honda Code 2410892)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
